MikroTik CRS318-1Fi-15Fr-2S-OUT - netPower 15FR reverse PoE switch
MikroTik CRS318-1Fi-15Fr-2S-OUT - netPower 15FR reverse PoE switch
×
0/0
Your price excl. VAT
121.82 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 121.89 EUR |
| Your price incl. VAT (21%) | 147.49 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300611 | |
| Part No. | CRS318-1Fi-15Fr-2S-OUT | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
MT48-570080-11DG
8.56 EUR excl. VAT
10.45 EUR incl. VAT
In Stock
MT48-480095-11DG
8.56 EUR excl. VAT
10.45 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
ML-S31D-3
6.29 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
ML-S85D-05
6.57 EUR excl. VAT
8.03 EUR incl. VAT
In Stock
ML-S3155-20
6.29 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
ML-S31D-20
6.57 EUR excl. VAT
8.03 EUR incl. VAT
Expected 27.1.2025
ML-SFP-RJ45-1G
15.84 EUR excl. VAT
19.25 EUR incl. VAT
In Stock
ML-S5531-20
8.64 EUR excl. VAT
10.54 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(16) 10/100Mbps
Optical interfaces:
(2) 1000Mbps
Power
Power over Ethernet:
18 .. 57V DC
Power type:
PoE, DC connector
PoE Input ports:
15
PoE type:
PoE-Out + PoE-In
PoE-Out standards:
Passive 24V, Passive 48V
PoE Out ports:
1
Max. power consumption [W]:
29
Power via connector/terminal:
18 .. 57V DC
Physical characteristics
Design:
Outdoor
Fans:
No
Chassis design:
Plastic
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
212
Height [mm]:
304
Depth [mm]:
71
Hardware
CPU:
98DX224S
CPU frequency [MHz]:
800
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
256
General
Switchning capacity [Gbps]:
7,2
Packet forwarding rate [Mpps]:
5,6
Software
Web management:
Yes
Management:
Web management
Operating system:
SwOS, RouterOS - L5
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

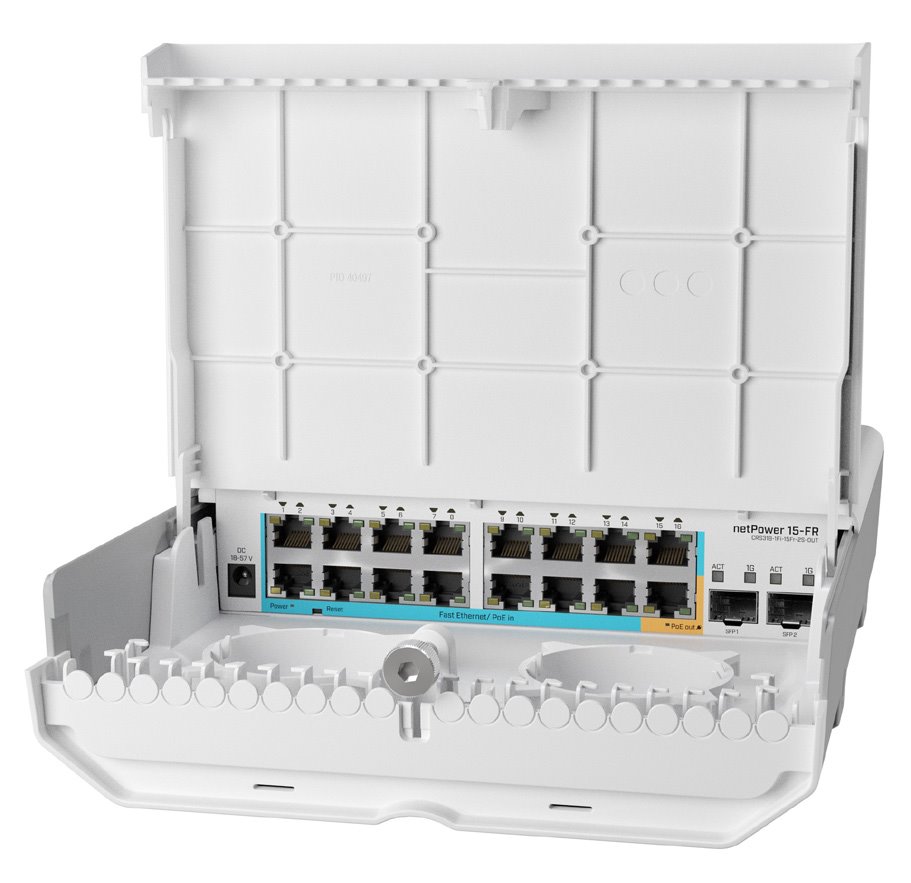

MikroTik netPower 15FR is a reverse PoE switch with 16x 100Mbit ethernet ports, two SFP ports, DC power connector and two operating systems (ROS and SwOS). The first 15 LAN ports allow power through PoE IN and 16th port supports PoE out to power other devices, such as CPE antenna, camera or switch. The advantage of reverse PoE is independence from one power supply. You can power switch with up to 15 power adapters via PoE IN at the same time, but only one power will be active at a time. In case of failure it will be automatically switched to the next possible one.
Package contains
Articles and reviews
SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS) GPEN concept Quick Guide SwOS manualGPSR
