MikroTik Cloud Router Switch CRS518-16XS-2XQ-RM
Your price excl. VAT
1 195.46 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 1 195.53 EUR |
| Your price incl. VAT (21%) | 1 446.59 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300712 | |
| Part No. | CRS518-16XS-2XQ-RM | |
| Warranty | 24 months | |
XQ+85MP01D
66.24 EUR excl. VAT
80.24 EUR incl. VAT
Expected 31.12.2024
XQ+31LC02D
170.94 EUR excl. VAT
206.92 EUR incl. VAT
In Stock
XQ+DA0001
28.86 EUR excl. VAT
35.01 EUR incl. VAT
In Stock
XQ+DA0003
42.75 EUR excl. VAT
51.81 EUR incl. VAT
In Stock
PW48V-12V150W
74.80 EUR excl. VAT
90.60 EUR incl. VAT
In Stock
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S31D-3
6.29 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
ML-S85D-05
6.57 EUR excl. VAT
8.03 EUR incl. VAT
In Stock
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S3155-20
6.29 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
ML-S31D-20
6.57 EUR excl. VAT
8.03 EUR incl. VAT
Expected 27.1.2025
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-SFP-RJ45-1G
15.84 EUR excl. VAT
19.25 EUR incl. VAT
In Stock
ML-S5531-20
8.64 EUR excl. VAT
10.54 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Gigabit LAN:
Yes
Optical interfaces:
(16) 1G/10G/25Gbps + (2) 100Gbps
Serial port:
RJ45
USB:
Yes
Power
Power type:
Mains power (230V)
Redundant power supply:
Yes
Max. power consumption [W]:
45
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
"U" positions:
1
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
443
Height [mm]:
45
Depth [mm]:
265
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
General
Switchning capacity [Gbps]:
1200
Packet forwarding rate [Mpps]:
600
Software
Web management:
Yes
Features:
VLAN, QoS, DHCP snooping, L3
Operating system:
RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

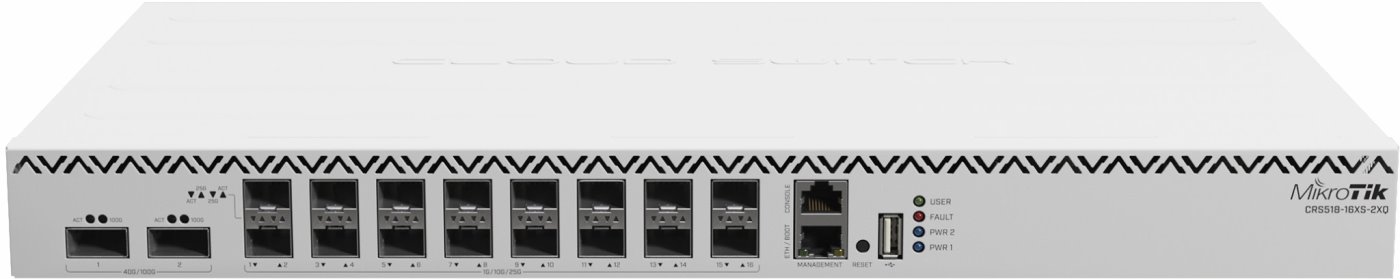

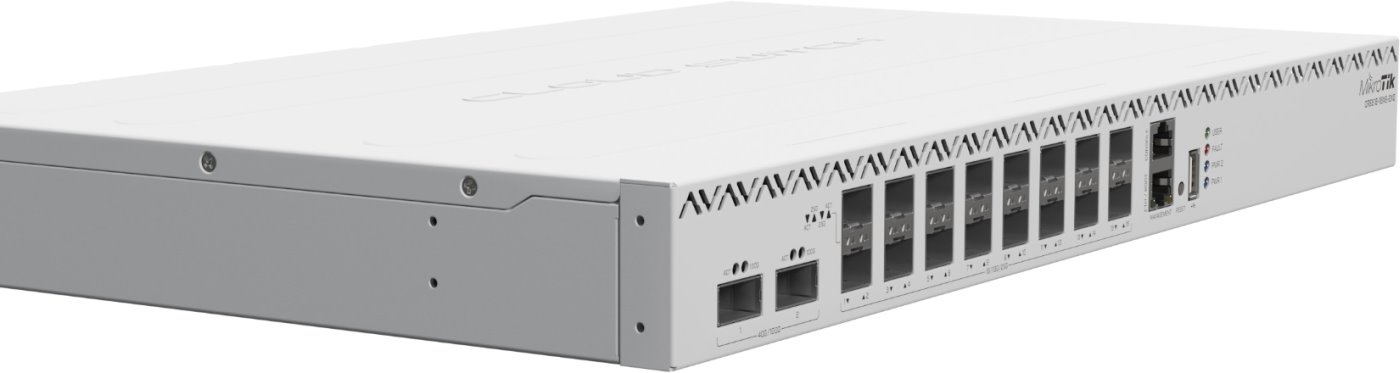

MikroTik Cloud Router Switch CRS518-16XS-2XQ-RM is a feature-packed backbone switch for your network and features 2× QSFP28 (100 Gbps), 16× SFP28 (1/10/25 Gbps), one 10/100Mbps metal port intended only for management, console RJ45 port, two Hot-Swap power modules and four Hot-Swap fans. The switch thus provides a total throughput of 600 Gbps, a switching capacity of 1.2 Tbps, forwarding up to 600 Mpps for most common packets and, thanks to the Marvell Prestera Aldrin2 switch chip, also L3 Hardware Offloading. If you work with a large amount of data, for example as an Internet Service Provider or Data Center Administrator, then this switch is the perfect upgrade for your network.
Redundant power supply

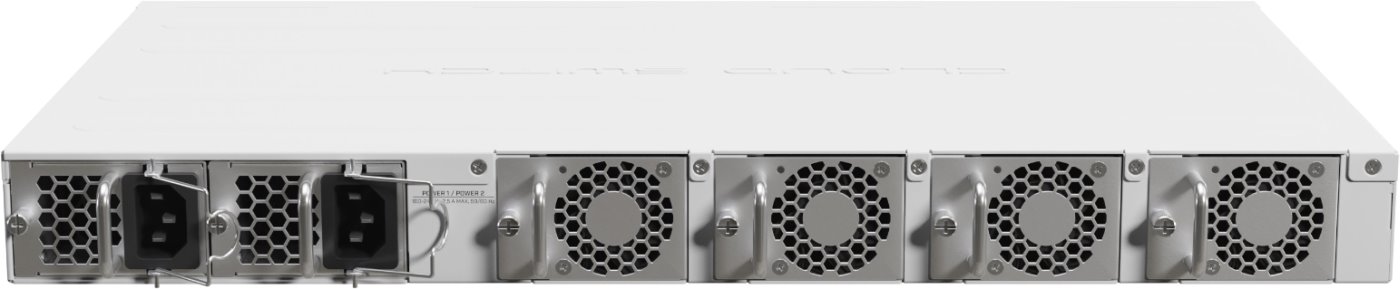

CRS518-16XS-2XQ-RM has two Hot-Swap power modules with redundancy option. In the event of a power failure on the primary source, the function can be replaced by the second source, which is already ready at that moment. So the failure of one resource will not endanger the operation of your network.
