MikroTik Cloud Router Switch CRS504-4XQ-OUT
Your price excl. VAT
667.73 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 667.80 EUR |
| Your price incl. VAT (21%) | 808.04 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300723 | |
| Part No. | CRS504-4XQ-OUT | |
| Warranty | 24 months | |
ETH-SP-G2
9.93 EUR excl. VAT
12.10 EUR incl. VAT
In Stock
XQ+31LC02D
169.82 EUR excl. VAT
205.57 EUR incl. VAT
Not in stock
XQ+31LC10D
258.96 EUR excl. VAT
313.43 EUR incl. VAT
In Stock
XS+31LC10D
106.12 EUR excl. VAT
128.49 EUR incl. VAT
In Stock
XQ+DA0001
28.66 EUR excl. VAT
34.76 EUR incl. VAT
In Stock
XS+DA0003
28.66 EUR excl. VAT
34.76 EUR incl. VAT
In Stock
CT-290-48-B
6.34 EUR excl. VAT
7.67 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.32 EUR excl. VAT
157.69 EUR incl. VAT
Expected 5.3.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(4) 100G
Serial port:
RJ45
Power
Power over Ethernet:
802.3bt, 43 .. 57V DC
Power type:
PoE, DC connector, DC terminal
PoE type:
PoE-In (only)
Max. power consumption [W]:
38
Power via connector/terminal:
36 .. 57V DC
Physical characteristics
Protection class:
IP66
Design:
Outdoor
Fans:
No
Chassis design:
Plastic
Operating temperature [°C]:
-40 up to 70
Width [mm]:
200
Height [mm]:
330
Depth [mm]:
70
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
32
RAM [MB]:
128
General
Jumbo frame [Bytes]:
9000
Software
Web management:
Yes
Management:
Web management
Features:
VLAN, QoS
Operating system:
SwOS, RouterOS - L5
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

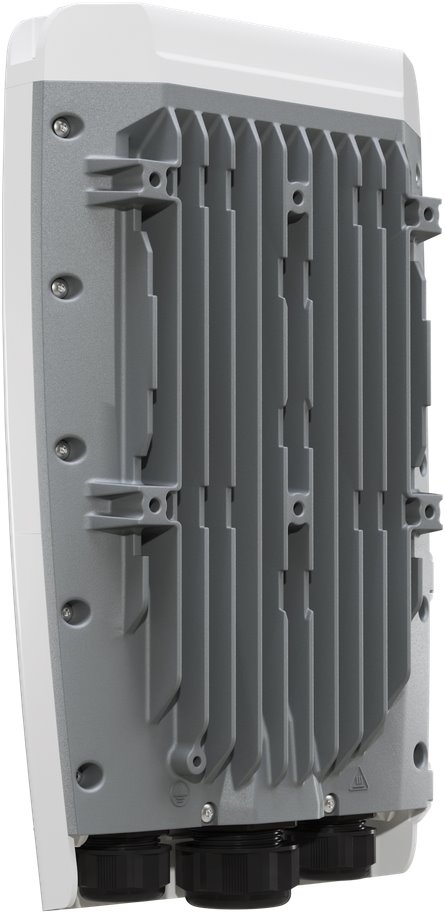

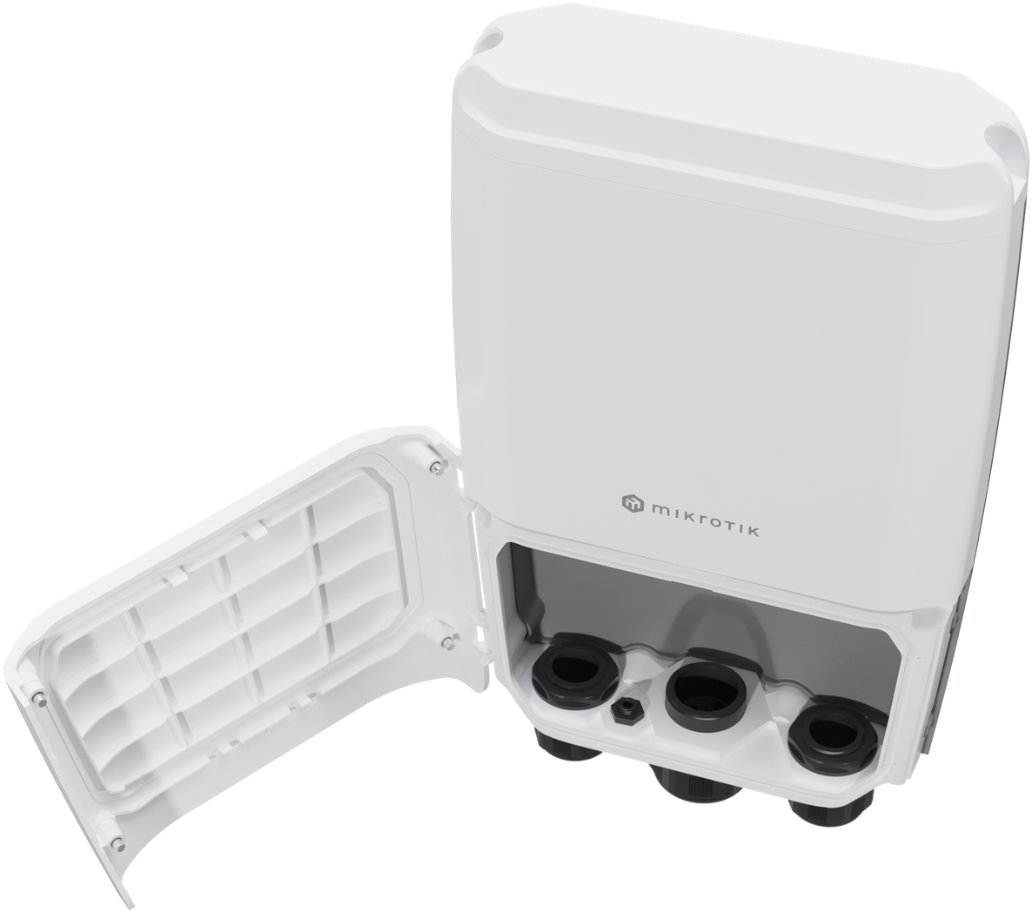

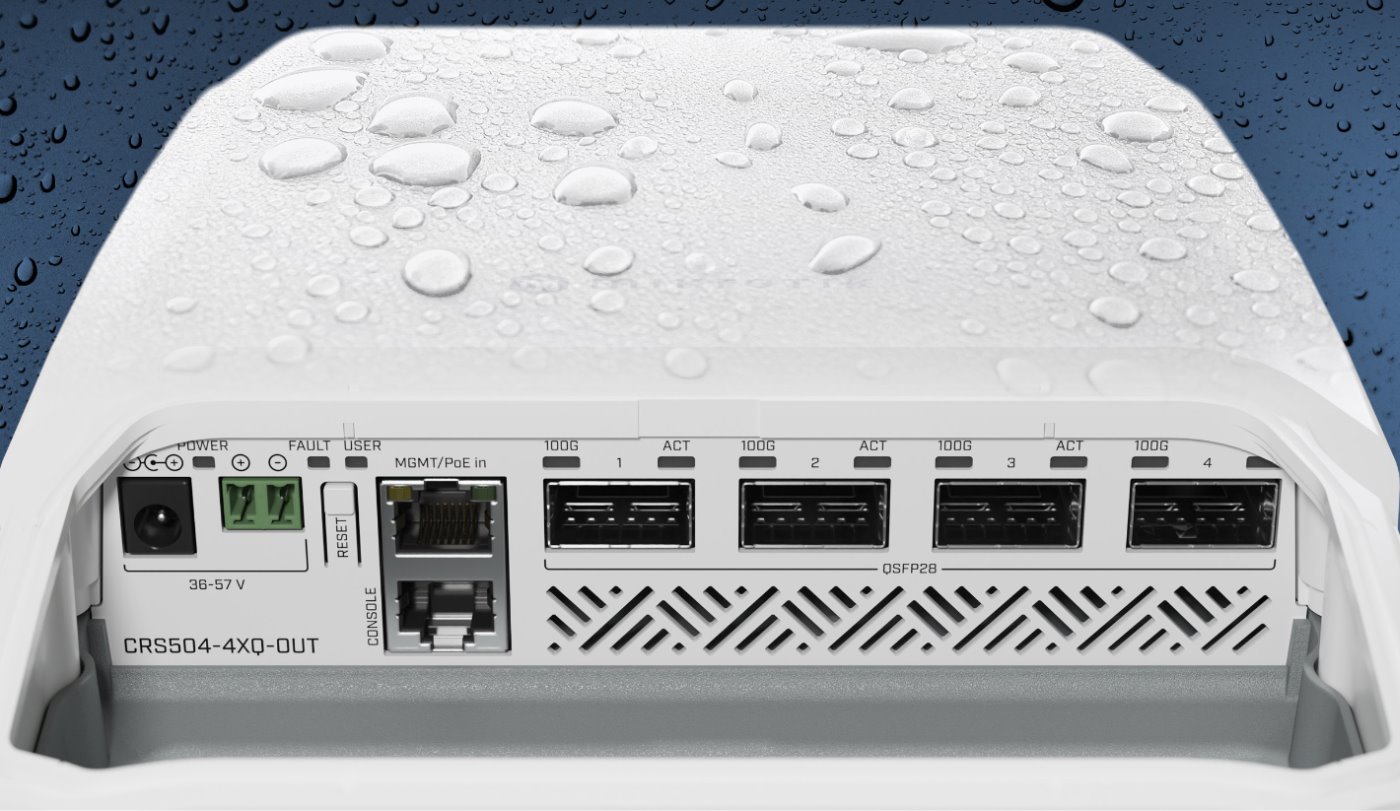

Outdoor 4-port QSFP28 fanless switch with fins on the back and routing options offers Gigabit Ethernet for management or PoE IN power supply (43 to 57 V DC or 802.3 bt), 4 optical QSFP28 ports with speed 1/10/25/40 and 100 Gbps, console RJ45 port, DC connector and terminal block with power supply 43 to 57 V DC. The Switch has a very robust chassis with water protection IP66, the possibility of installation on a wall or a mast, and in the lower part there are doors for 4 cross-head screws and 3 large cable grommets with enough space for all cables. Both RouterOS v7 with an L5 license and SwitchOS, which is intended for easier management, are installed inside the device.

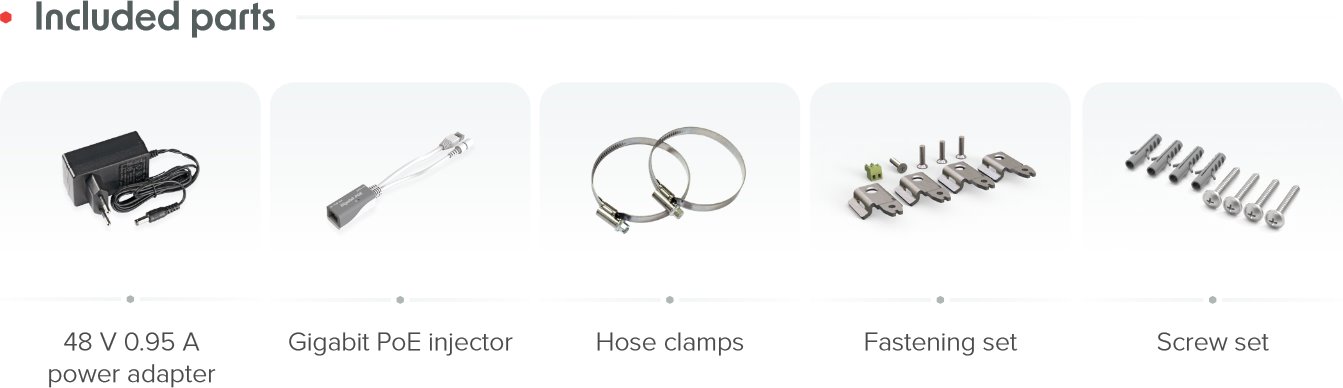

Package contents
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
