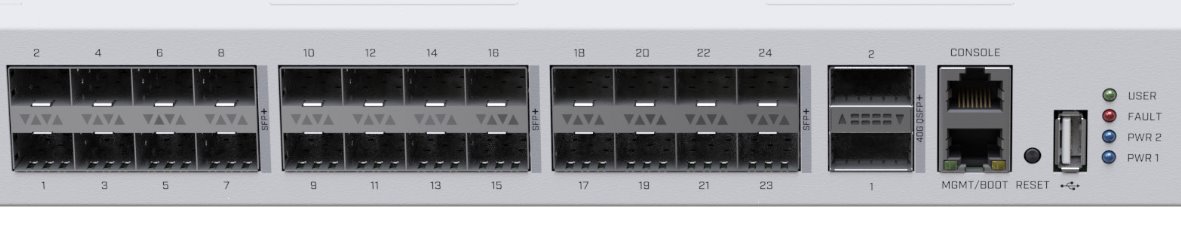

MikroTik Cloud Router Switch CRS326-24S+2Q+RM
MikroTik Cloud Router Switch CRS326-24S+2Q+RM
×
0/0
Your price excl. VAT
447.85 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 447.92 EUR |
| Your price incl. VAT (21%) | 541.98 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300561 | |
| Part No. | CRS326-24S+2Q+RM | |
| Warranty | 24 months | |
PW48V-12V85W
37.38 EUR excl. VAT
45.33 EUR incl. VAT
In Stock
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Optical interfaces:
(24) 10Gbps + (2) 40Gbps
Serial port:
RJ45
USB ports 2.0:
1
USB:
Yes
Power
Power type:
Mains power (230V)
Max. power consumption [W]:
69
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
"U" positions:
1
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-20 up to 60
Width [mm]:
443
Height [mm]:
44
Depth [mm]:
183
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
General
Switchning capacity [Gbps]:
640
Packet forwarding rate [Mpps]:
252
Software
Web management:
Yes
Management:
Web management
Features:
VLAN, DHCP snooping
Operating system:
SwOS, RouterOS - L5
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
High performance
Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.
Redundant power supply
CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
Dual OS
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.
Package contains
Articles and reviews
SFP compatibility list DHCP Snooping setupDownload
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide SwOS manualGPSR
