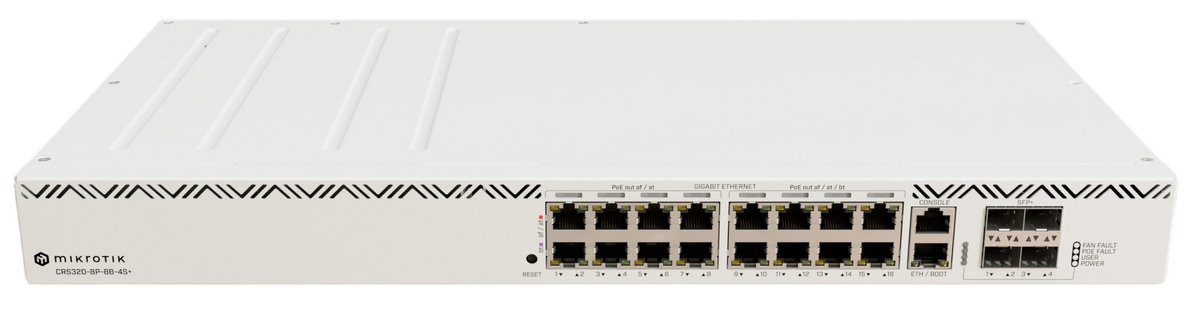

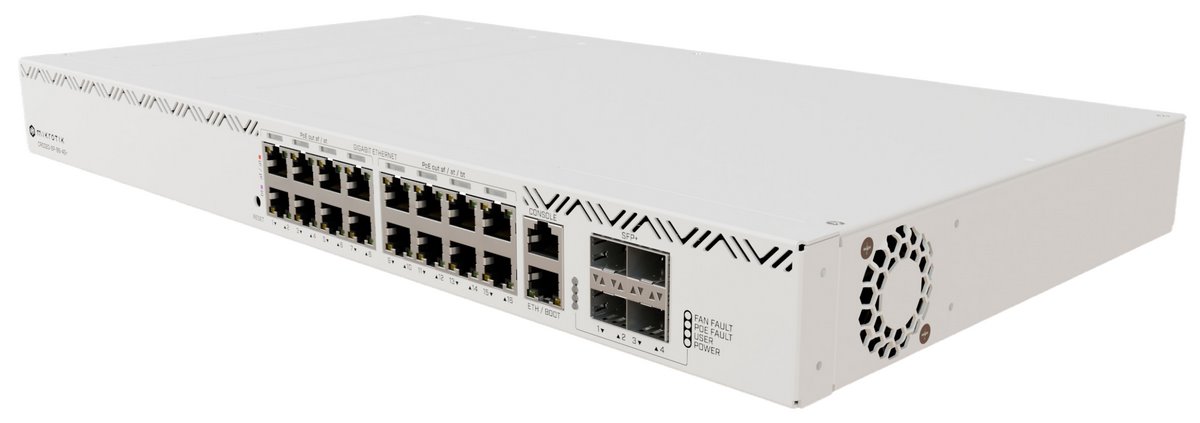

MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM

MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM
MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM
×
0/0
MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM
MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM
MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM
MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM
MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM
MikroTik Cloud Router Switch CRS320-8P-8B-4S+RM

Your price excl. VAT
386.97 EUR
Recycling fee 0.07 EUR
Your price with RF 387.04 EUR
Your price incl. VAT (21%) 468.32 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

MikroTik

Code10904298
Part No.CRS320-8P-8B-4S+RM
Warranty 24 months
  • Related products7
MikroTik G1483-0600WNB - Hot Swap 600W power supply for CRS320-8P-8B-4S+RM
G1483-0600WNB

99.03 EUR excl. VAT
119.92 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDM
ML-S+85D-03

8.09 EUR excl. VAT
9.87 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM
ML-S+31D-10

13.11 EUR excl. VAT
15.95 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM
ML-S+2733-10

18.56 EUR excl. VAT
22.54 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDM
ML-S+3327-10

18.56 EUR excl. VAT
22.54 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
show moreshow less 2
Parameters
Download
Video

Product description

The Cloud Router Switch CRS320-8P-8B-4S+RM is a PoE switch supporting the 802.3af/at and 802.3bt standards with a total PoE budget of 600 W (up to 1150 W with an additional power supply). The switch offers 17 Gigabit LAN ports, the first eight supports 802.3af/at PoE (maximum 30 W/port), the next eight supports 802.3af/at/bt (maximum 90 W/port), and it also includes 4 10 Gigabit SFP+ ports. It is powered by a Hot-swap power supply with a capacity of 600 W, with the option to purchase a second power supply to increase the total power capacity to 1150 W, but not for redundancy. The maximum device consumption is 36 W.

Key Features

  • 17x 10/100/1000 Mbps LAN
  • 4x SFP+ (10 Gbps)
  • 8x 802.3af/at (30 W/port) + 8x 802.3af/at/bt (90 W/port)
  • PoE budget of 600 W - expandable up to 1150 W

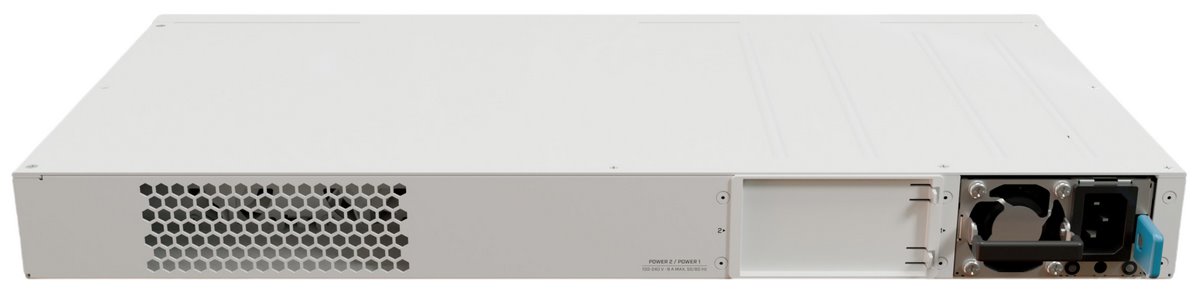

  • 1x Hot-Swap power supply, 1x free slot for expanding the total PoE capacity
  • Console RJ45 port
  • Operating system RouterOS v7 Level 5

Package Contents

  • Device
  • Power cable
  • 19" rack mount brackets

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Connectors and Interfaces

LAN speed: (17) 10/100/1000Mbps
Gigabit LAN: Yes
Optical interfaces: (4) 1G/2.5G/10Gbps
Serial port: RJ45

Power

Power type: Mains power (230V)
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at, 802.3bt
PoE Out ports: 16
PoE budget [W]: 600
Max. power consumption [W]: 36
Power via connector/terminal: 230V AC (directly to the wall outlet)

Physical characteristics

Design: Rackmount
"U" positions: 1
Fans: Yes
Chassis design: Metal
Buttons: Reset
Operating temperature [°C]: -10 up to 50
Width [mm]: 444
Height [mm]: 44
Depth [mm]: 235

Hardware

CPU: 98DX226S
CPU frequency [MHz]: 800
CPU cores: 2
Internal storage [MB]: 32
RAM [MB]: 256

Software

Web management: Yes
Management: Web management, SSH, Telnet, Winbox
Features: L3, VLAN, QoS, DHCP snooping
Operating system: RouterOS v7 - L5
