MikroTik Cloud Router Switch CRS318-16P-2S+OUT - netPower 16P
MikroTik Cloud Router Switch CRS318-16P-2S+OUT - netPower 16P
×
0/0
Your price excl. VAT
208.36 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 208.43 EUR |
| Your price incl. VAT (21%) | 252.20 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300629 | |
| Part No. | CRS318-16P-2S+OUT | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
RS-150-48
25.88 EUR excl. VAT
31.41 EUR incl. VAT
In Stock
48V2A96W
28.86 EUR excl. VAT
35.02 EUR incl. VAT
In Stock
MTP250-26V94-OD
74.80 EUR excl. VAT
90.60 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(16) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(2) 10Gbps
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, Passive 54V, Passive 24V, Passive 48V
PoE Out ports:
16
PoE budget [W]:
300
Max. power consumption [W]:
16
Power via connector/terminal:
18 .. 57V DC
Physical characteristics
Protection class:
IP55
Design:
Outdoor
Fans:
No
Chassis design:
Plastic
Operating temperature [°C]:
-40 up to 70
Width [mm]:
212
Height [mm]:
303
Depth [mm]:
78
Hardware
CPU:
98DX226S
CPU frequency [MHz]:
800
Internal storage [MB]:
16
RAM [MB]:
256
General
Switchning capacity [Gbps]:
72
Packet forwarding rate [Mpps]:
53,6
Software
Web management:
Yes
Management:
Web management
Features:
VLAN, QoS, DHCP snooping
Operating system:
SwOS, RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

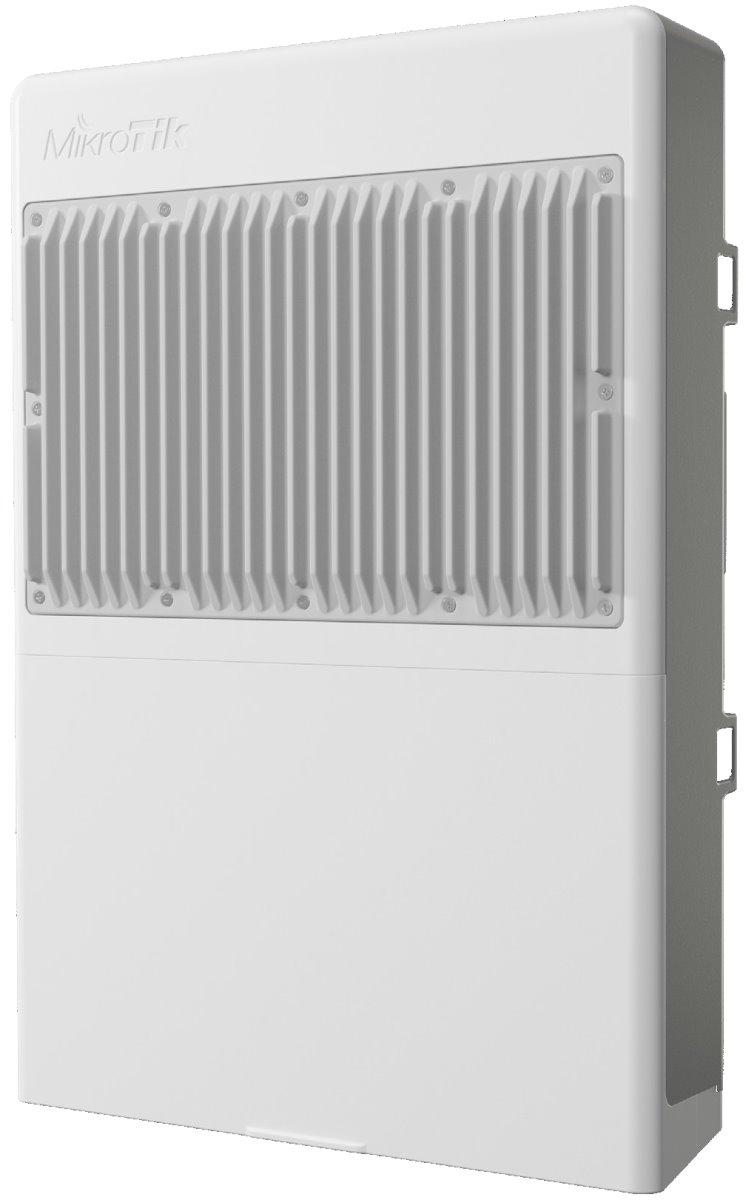

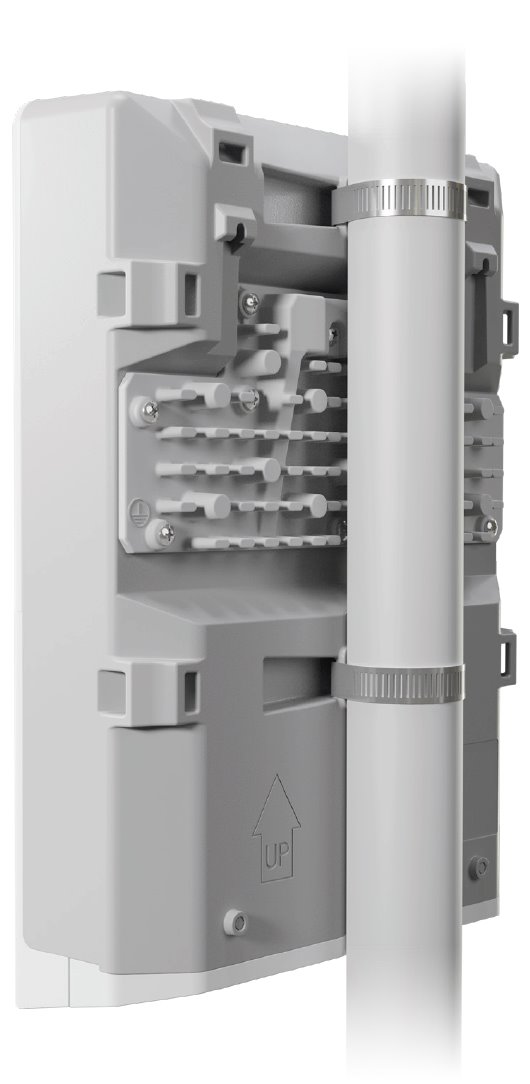

NetPower 16P or CRS318-16P-2S+OUT is an outdoor 16-port Gigabit PoE switch for powering IP cameras, PTP or PTMP Wireless devices with a maximum consumption of 34W/port, total PoE budget 300W, IP55 protection and wall or mast mounting. The switch offers two voltage inputs: higher (>30V) and lower (<30V) voltage. In the case of higher voltage, the device can supply 802.3af/at standards, in the case of lower voltage it is only passive PoE.
Connector equipment

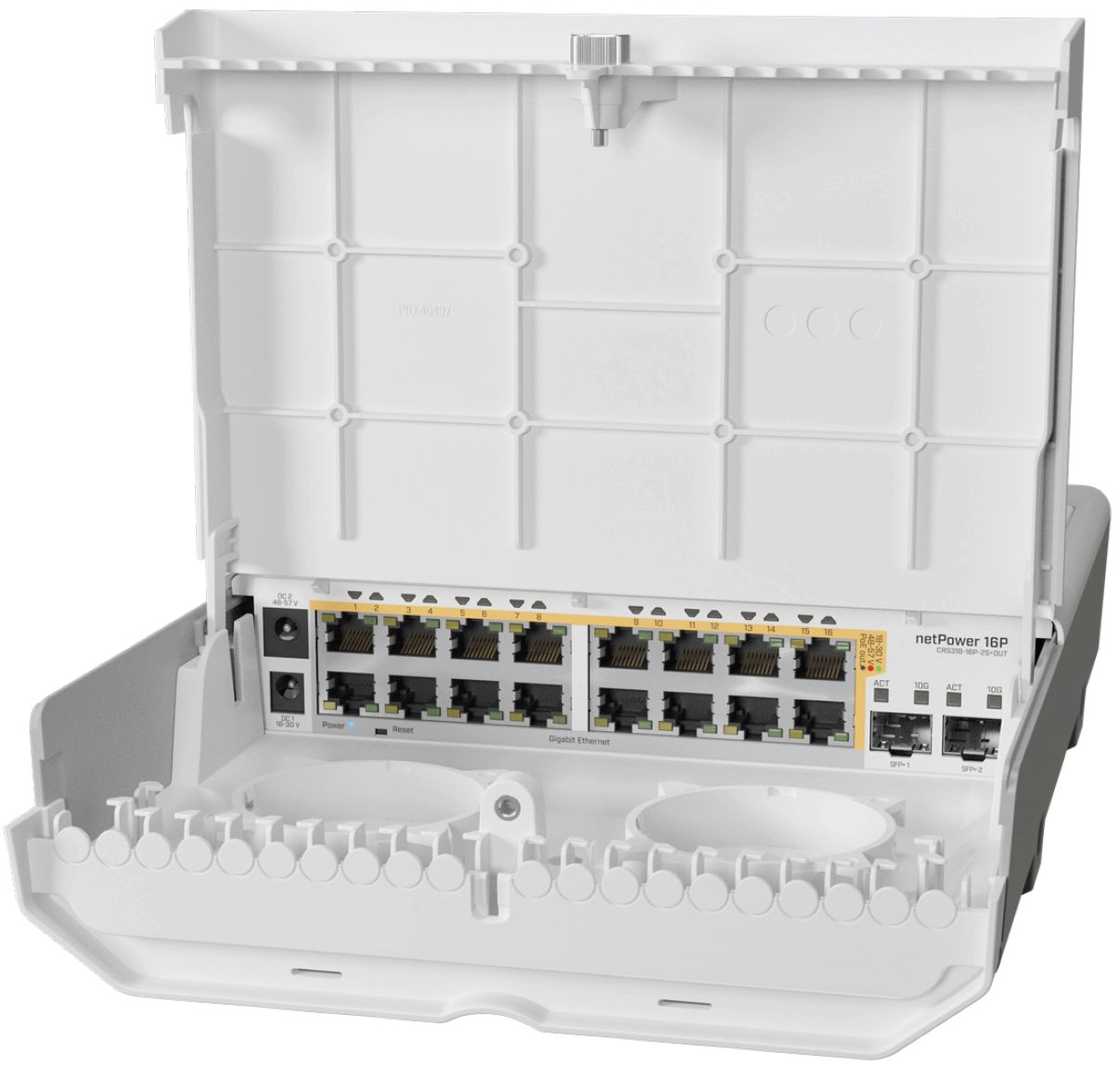

The switch has 16 Gigabit PoE out ports, two optical SFP+ ports with a maximum 10Gbps speed, which is suitable in the case of an optical uplink to your server room. Two DC connectors are used to power the switch itself, and it is not obligatory to have both connected - only one is always enough.
Two operating systems
You can choose between the legendary boot-loaded RouterOS or a simpler but powerful SwOS. If you would like to use routing and other L3 layer functions in your CRS, use RouterOS.

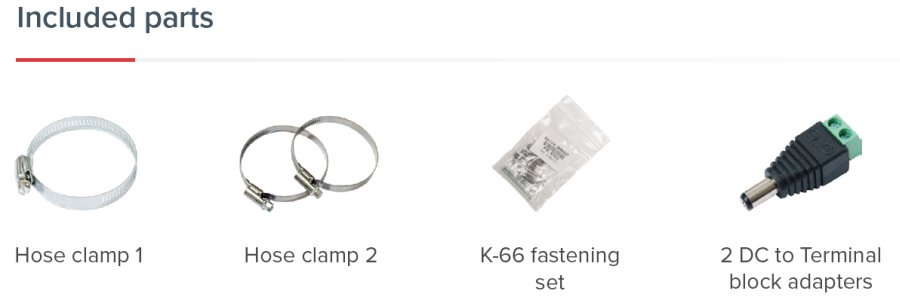

Package contains
Articles and reviews
SFP compatibility list DHCP Snooping setupDownload
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide SwOS manualGPSR
