MikroTik Cloud Router Switch CRS309-1G-8S+IN, Dual Boot
MikroTik Cloud Router Switch CRS309-1G-8S+IN, Dual Boot
×
0/0
Your price excl. VAT
202.99 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 203.06 EUR |
| Your price incl. VAT (21%) | 245.70 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300524 | |
| Part No. | CRS309-1G-8S+IN | |
| Warranty | 24 months | |
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(8) 10Gbps
Serial port:
RS-232
Power
Power over Ethernet:
Yes
Power type:
PoE, DC connector
PoE type:
PoE-In (only)
Max. power consumption [W]:
23
Power via connector/terminal:
12 .. 57V DC
Physical characteristics
Design:
Desktop, Rackmount
"U" positions:
1
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
141
Height [mm]:
28
Depth [mm]:
115
Hardware
CPU:
Dual-core 98DX8208
CPU frequency [MHz]:
800
CPU cores:
2
Internal storage [MB]:
16
RAM [MB]:
512
General
Switchning capacity [Gbps]:
162
Software
Web management:
Yes
Management:
Web management
Features:
VLAN, DHCP snooping
Operating system:
SwOS, RouterOS - L5
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

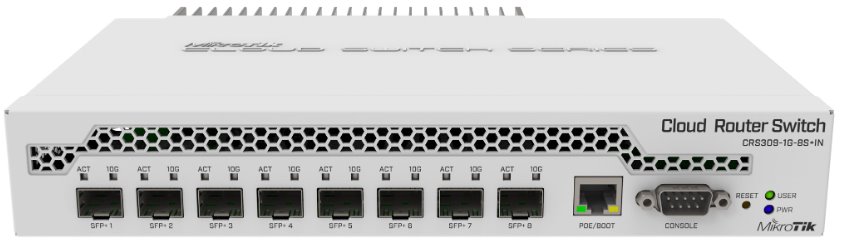

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

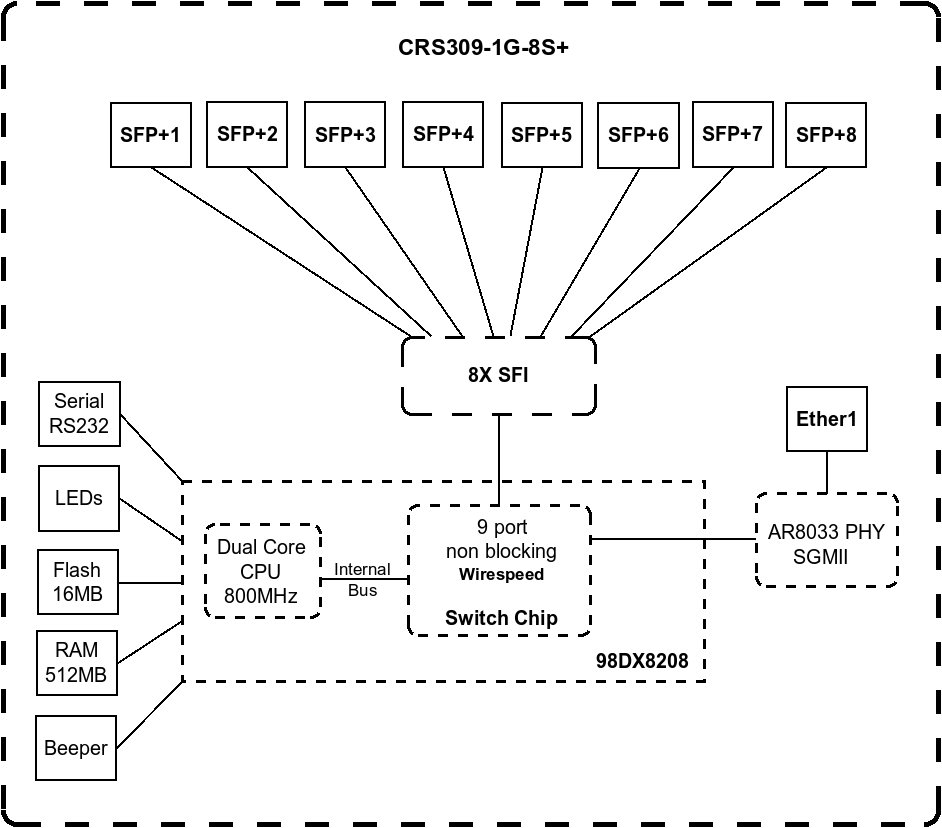

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

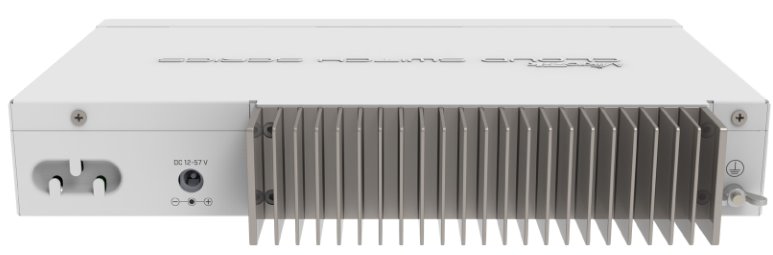

The compact and sleek metallic enclosure also acts as a heatsink, making this device passively cooled - no fan noise and no dust accumulation inside. Special rackmount ears for installing unit into the standard rack are provided.
Package contains
Articles and reviews
DHCP Snooping setup SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide SwOS manualGPSR
