MikroTik Cloud Core Router, CCR2004-16G-2S+PC
Your price excl. VAT
347.25 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 347.32 EUR |
| Your price incl. VAT (21%) | 420.26 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300699 | |
| Part No. | CCR2004-16G-2S+PC | |
| Warranty | 24 months | |
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S3155-20
6.29 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
ML-S31D-20
6.57 EUR excl. VAT
8.03 EUR incl. VAT
Expected 27.1.2025
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-SFP-RJ45-1G
15.84 EUR excl. VAT
19.25 EUR incl. VAT
In Stock
ML-S85D-05
6.57 EUR excl. VAT
8.03 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
Multiple WAN:
Yes
LAN speed:
(16) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(2) 1G/10Gbps
Serial port:
RJ45
Power
Power type:
DC connector, DC terminal
Max. power consumption [W]:
30
Power via connector/terminal:
36 .. 57V DC
Physical characteristics
Design:
Desktop, Rackmount
"U" positions:
1
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-20 up to 60
Width [mm]:
272
Height [mm]:
44
Depth [mm]:
195
Hardware
CPU:
AL32400
CPU frequency [MHz]:
1200
CPU cores:
4
Internal storage [MB]:
128
RAM [MB]:
4096
Software
Operating system:
RouterOS - L6
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description
CCR2004-16G-2S+PC is a desktop or rackmount router up to 19" rack from the new line of CCR routers, which comes with passive cooling and the highest ratio power per 1 core of all CCRs, which is the most important aspect for more demanding per-connection-based processing operations (eg. QoS). The router is powered by a CPU with a 64bit ARM architecture with a clock speed of 1200 MHz, has 4GB of DDR4 RAM and 128MB of NAND storage.

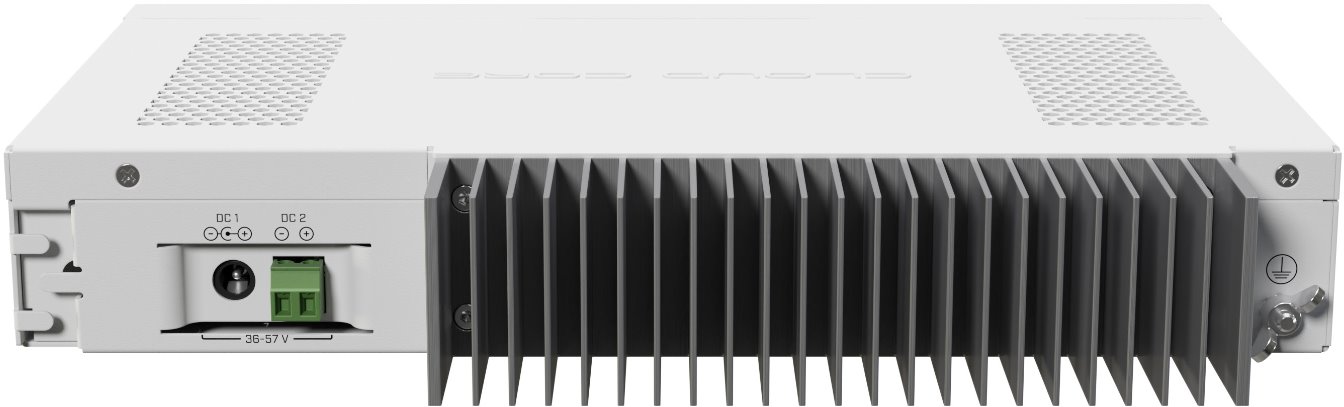

The router has 16× Gigabit LAN, 2× SFP+ slot (possibility to connect 1G and 10G modules) and serial port type RJ45. On the back, it has a sufficiently oversized passive heatsink and two DC inputs with an input voltage of 36 to 57 V DC - terminal block and connector.
Key Features
Package Contents
Download
CE Datasheet Firmware (RouterOS / SwOS)GPSR
