MikroTik Cloud Core Router, CCR1036-12G-4S, revision 2
We are sorry, this product is no longer in our offer.
PW48V-12V85W
36.58 EUR excl. VAT
44.36 EUR incl. VAT
In Stock
UP1302C-12
42.88 EUR excl. VAT
51.98 EUR incl. VAT
Expected 14.11.2024
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Connectors and Interfaces
Touchscreen:
Yes
M.2 slots:
1
Multiple WAN:
Yes
LAN speed:
(12) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(4) 1000Mbps
Serial port:
RS-232
USB:
Yes
Power
Power type:
Mains power (230V)
Redundant power supply:
Yes
Max. power consumption [W]:
60
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
"U" positions:
1
Fans:
Yes
Chassis design:
Metal
Operating temperature [°C]:
-20 up to 60
Width [mm]:
443
Height [mm]:
44
Depth [mm]:
193
Hardware
CPU:
Tilera Tile-Gx36
CPU frequency [MHz]:
1200
CPU cores:
36
Internal storage [MB]:
1024
RAM [MB]:
4096
Software
Operating system:
RouterOS - L6
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

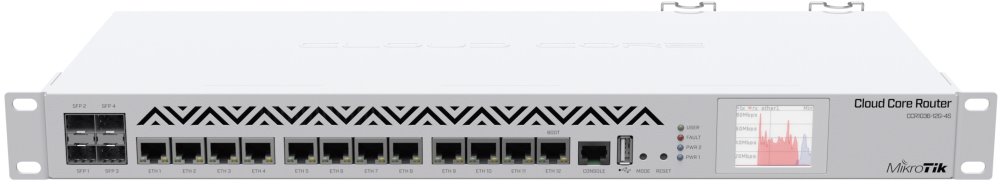

CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.

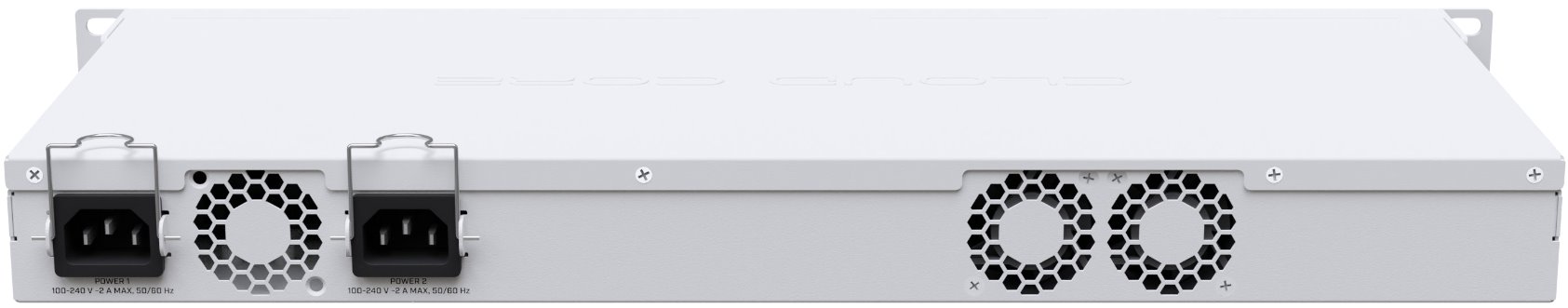

The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
Package contains
Articles and reviews
SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
