MaxLink POE panel 24 ports, 1U for rack 19", shielded
MaxLink POE panel 24 ports, 1U for rack 19", shielded
×
0/0
Your price excl. VAT
29.82 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 29.89 EUR |
| Your price incl. VAT (21%) | 36.17 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 10900183 | |
| Part No. | POE-PAN24 | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
M-21-55
0.54 EUR excl. VAT
0.65 EUR incl. VAT
In Stock
SXSZO-10MM-25M-BK
13.61 EUR excl. VAT
16.47 EUR incl. VAT
To order within 7d
SXSZO-20MM-25M-BK
25.08 EUR excl. VAT
30.35 EUR incl. VAT
To order within 7d
RS-150-48
25.88 EUR excl. VAT
31.41 EUR incl. VAT
In Stock
RS-150-24
25.20 EUR excl. VAT
30.59 EUR incl. VAT
In Stock
WT-55/KAT-1.5M
3.50 EUR excl. VAT
4.23 EUR incl. VAT
In Stock
WT-55/1.5M
3.38 EUR excl. VAT
4.09 EUR incl. VAT
In Stock
Parameters
GPSR
Technical parameters
Connectors and Interfaces
Ethernet speed [Mb/s]:
10/100
Power
The input voltage [V]:
12 .. 57V DC
Pin powering:
4,5 (+), 7,8 (-)
PoE Out ports:
24
Physical characteristics
Rackmount:
Yes
Shielding:
Yes
LED indication:
Yes
Operating temperature [°C]:
0 up to 40
Weight [kg]:
0,7
Width [mm]:
483
Height [mm]:
45
Depth [mm]:
25
Product description

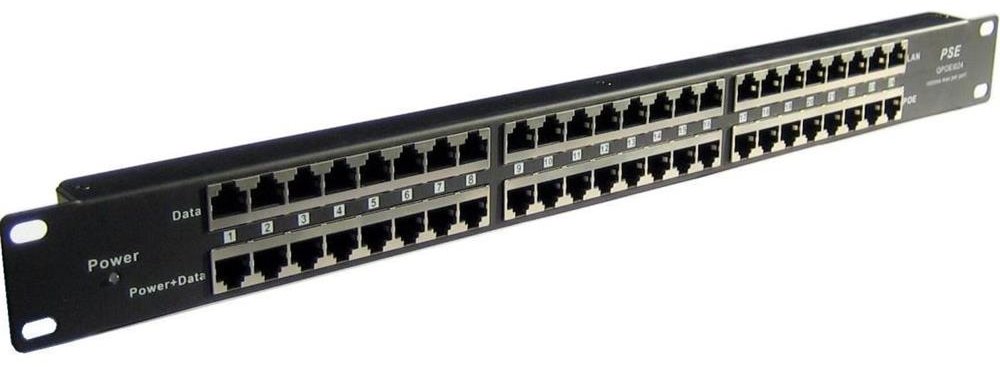

Panel integrating 24 passive PoE injectors into a single 19"/1U panel suitable for powering up to sixteen devices. Professional solution for remote powering of many active elements with passive PoE support.
Important features
Use
Ethernet ports without power supply (e.g. switch) are connected to RJ45 connectors marked as "DATA" on one side and devices using power supply via Ethernet cable are connected to the opposite side "POWER + DATA". POE-PAN24 is compatible with active elements using pins 4, 5 (+), pins 7, 8 (-). Especially useful for MikroTik and Ubiquiti. Power performance can be optimized according to the devices used and their configuration.
