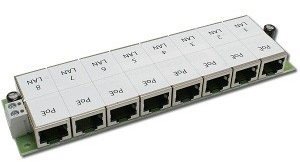

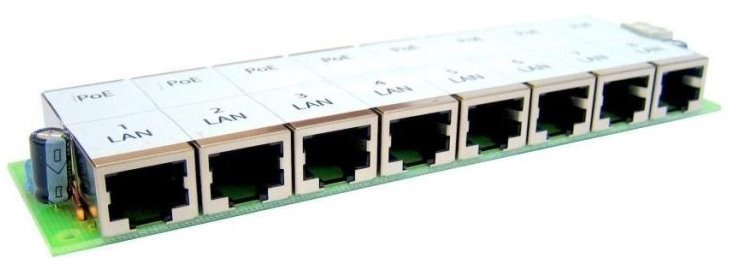

MaxLink passive POE panel, 8 ports, terminal block, no case
MaxLink passive POE panel, 8 ports, terminal block, no case
×
0/0
Your price excl. VAT
7.05 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 7.12 EUR |
| Your price incl. VAT (21%) | 8.62 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
68 pcs.
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 10900225 | |
| Part No. | POE-PAN8-S | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
DC svorkovnice
POE-PAN8-S
7.05 EUR
Parameters
GPSR
Technical parameters
Connectors and Interfaces
Ethernet speed [Mb/s]:
10/100
Power
The input voltage [V]:
9 .. 48V DC
Pin powering:
4,5 (+), 7,8 (-)
PoE Out ports:
8
Physical characteristics
LED indication:
Yes
Operating temperature [°C]:
0 up to 40
Width [mm]:
147
Height [mm]:
15
Depth [mm]:
37
Product description
The PoE injector is suitable for powering up to eight devices supporting passive PoE. To LAN ports on one side connect device without power supply eg switch, on the other side connect devices using passive PoE - WiFi, VoIP or other devices supporting passive PoE. The power supply uses two unused pairs of ethernet cable: 4,5 (positive pole) and 7,8 (negative pole). Power supply is connecting via terminal block.
The hole pitch is for attach 140 x 30mm.
