MaxLink pasive POE panel, 4 ports
MaxLink pasive POE panel, 4 ports
×
0/0
Your price excl. VAT
7.50 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 7.57 EUR |
| Your price incl. VAT (21%) | 9.16 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 10900184 | |
| Part No. | POE-BOX4 | |
| Warranty | 24 months | |
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Ethernet speed [Mb/s]:
10/100
Power
The input voltage [V]:
12 .. 57V DC
Pin powering:
4,5 (+), 7,8 (-)
PoE Out ports:
4
Physical characteristics
Shielding:
Yes
LED indication:
Yes
Width [mm]:
44
Height [mm]:
100
Depth [mm]:
28
Product description

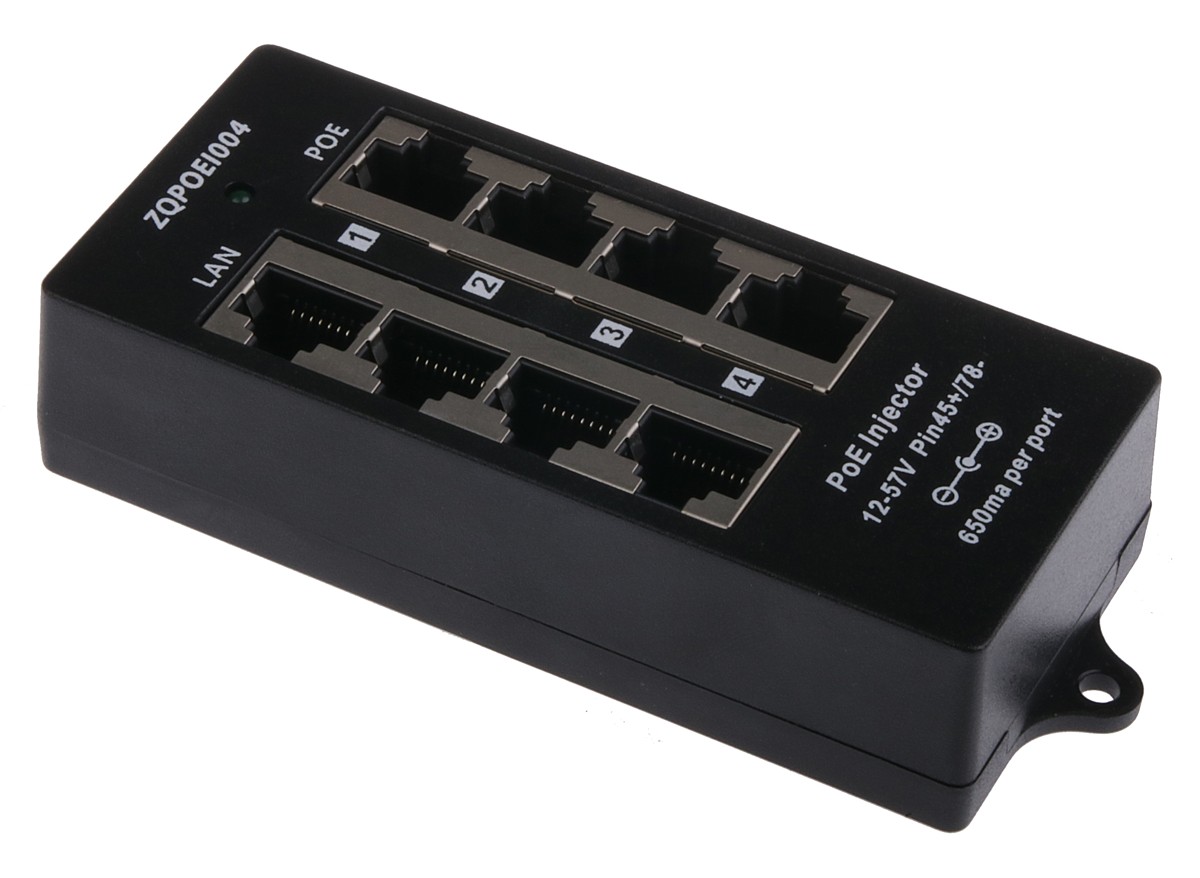

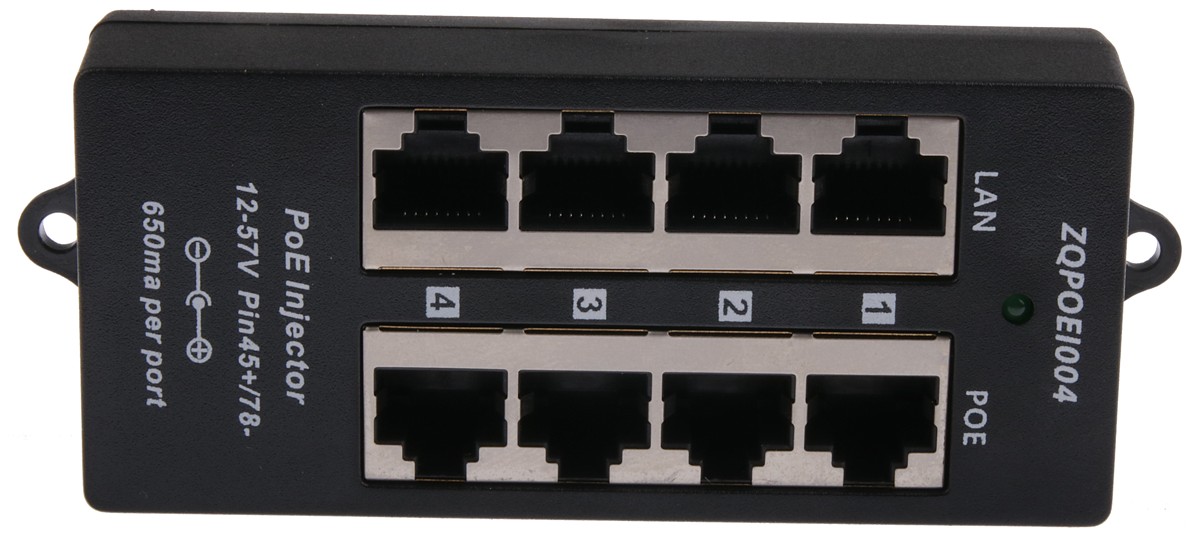

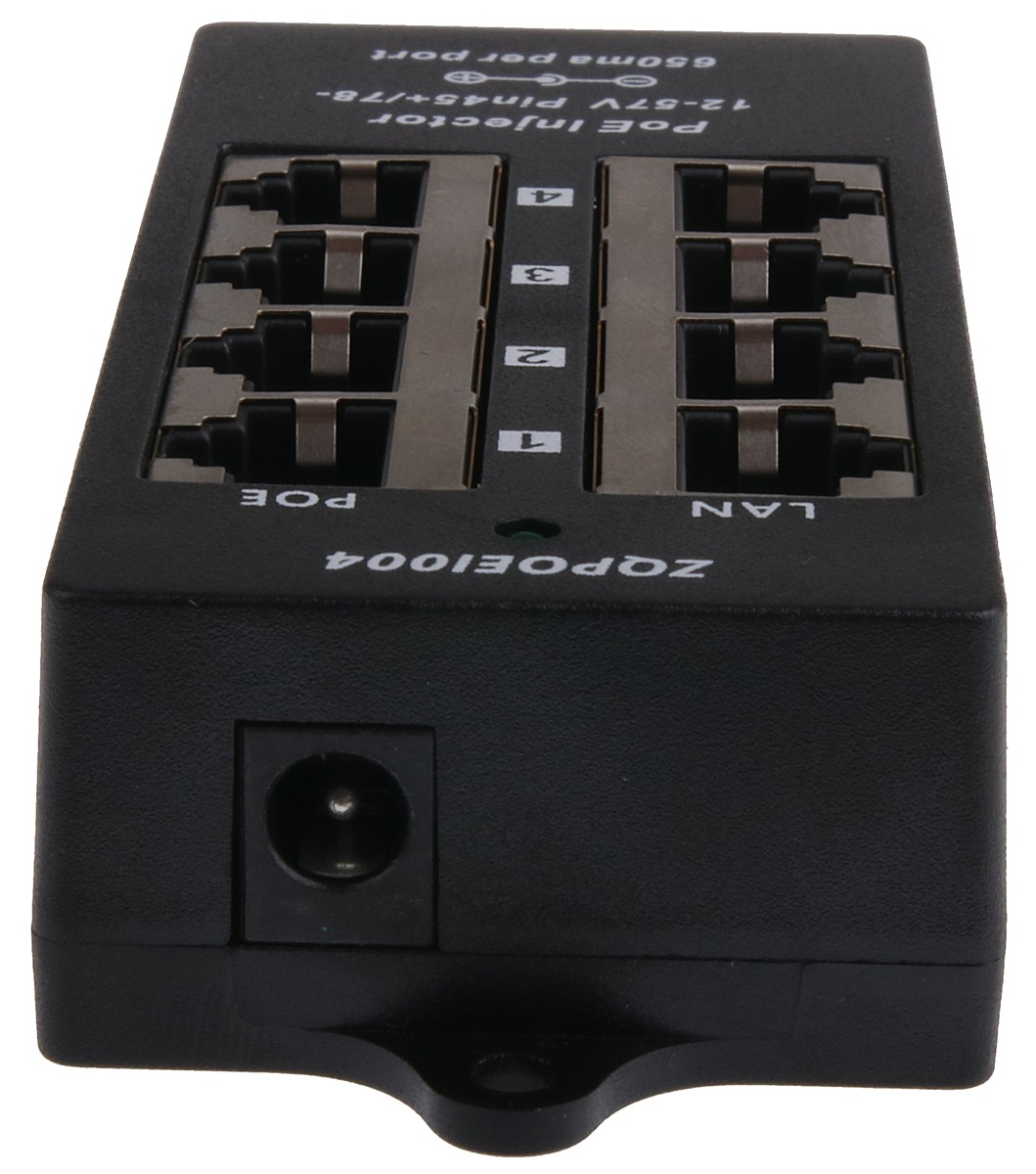

POE-BOX4 is a passive PoE injector suitable for powering up to 4 devices. Connectors marked "LAN" connect Ethernet ports without power supply eg switch, to the opposite side of "POE" connect devices using passive PoE. For powering PoE injector uses two pairs of Ethernet cable: 4,5 (positive pole) and 7,8 (negative pole). The power supply is connected via a standard 2.1/5.5mm power connector.
The passive PoE injector can be used in the range of 12 to 57V DC with a max. current of 1000mA / port.
Download
CE Certification CE ReportGPSR
