MaxLink DIN60F PoE injektor - 12-57VDC, 802.3af/at/bt, 55V, 1.1A, 60W, 1xSFP, 1Gbit
MaxLink DIN60F PoE injektor - 12-57VDC, 802.3af/at/bt, 55V, 1.1A, 60W, 1xSFP, 1Gbit
×
0/0
Your price excl. VAT
103.21 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 103.28 EUR |
| Your price incl. VAT (21%) | 124.97 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 10900365 | |
| Part No. | MAXPIDIN60F | |
| Warranty | 24 months | |
RS-75-48
17.17 EUR excl. VAT
20.87 EUR incl. VAT
In Stock
S-120-48
12.23 EUR excl. VAT
14.90 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
Ethernet speed [Mb/s]:
10/100/1000
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps
Power
Output Power / 1port [W]:
60
Pin powering:
1,2,7,8 (-), 3,4,5,6 (+)
PoE-Out standards:
802.3af, 802.3at, 802.3bt
PoE Out ports:
1
Output Voltage [V]:
55
Physical characteristics
LED indication:
Yes
Operating temperature [°C]:
-40 up to 65
Weight [g]:
485
Width [mm]:
35
Height [mm]:
145
Depth [mm]:
86
Product description

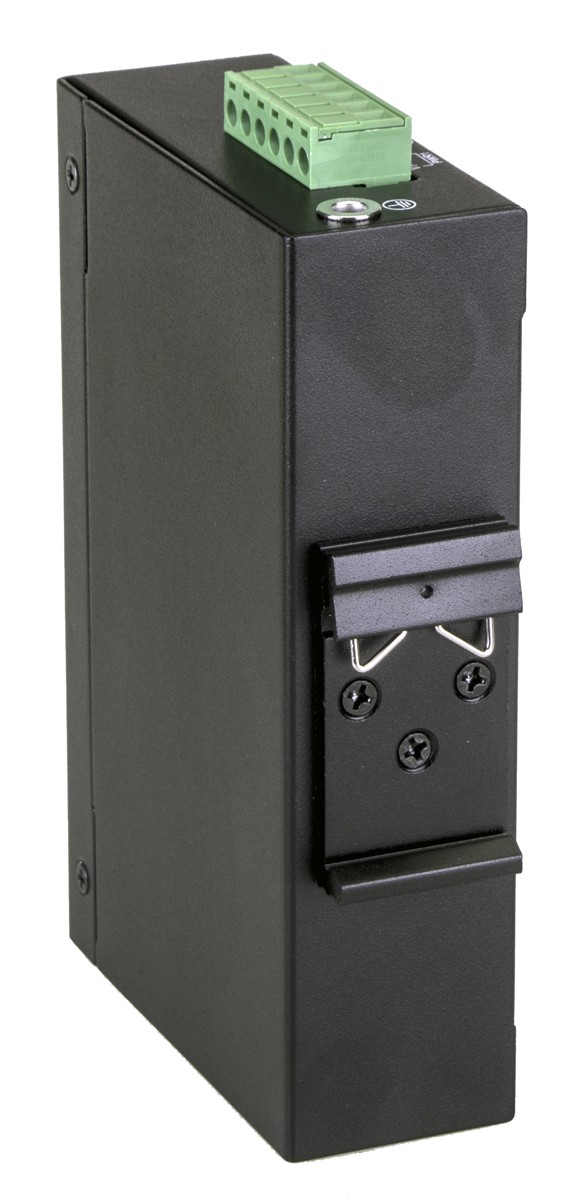

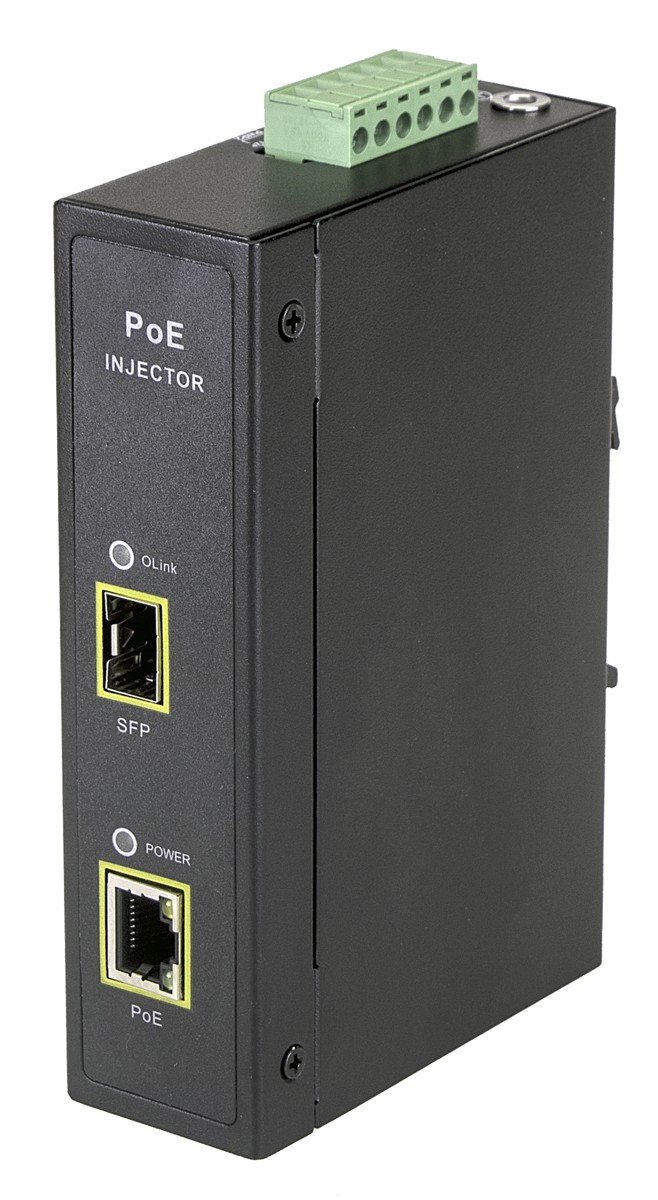

MaxLink MAXPIDIN60F is an active DIN rail mounting PoE injector with DC power input from 12 to 57 V and built in power converter. Injector has one POE LAN port output and one SFP port output. The output of this power supply is 1Gbit port with support of the 802.3af/at (55 V) which is dedicated for Wi-Fi, VoIP, or wireless links. The PoE's distribution is on the pins 1, 2, 7, 8 (-), 3, 4, 5, 6 (+). The SFP port is used for data input. Total power is 60 W. The main advantage of this power supply is 6kV (10/700us) overvoltage protection.
This PoE injector is best for using in the places where you already have a main power supply such as the solar panels or a high voltage power supply.
