MaxLink DIN60 PoE injector - 12-48VDC, 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit
MaxLink DIN60 PoE injector - 12-48VDC, 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit
×
0/0
Your price excl. VAT
84.43 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 84.50 EUR |
| Your price incl. VAT (21%) | 102.25 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 10900363 | |
| Part No. | MAXPIDIN60 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
60W
MAXPIDIN60
84.43 EUR
RS-75-48
17.28 EUR excl. VAT
21.01 EUR incl. VAT
In Stock
S-120-48
12.30 EUR excl. VAT
14.98 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Ethernet speed [Mb/s]:
10/100/1000
Gigabit LAN:
Yes
Power
Output Power / 1port [W]:
60
Pin powering:
1,2,7,8 (-), 3,4,5,6 (+)
PoE-Out standards:
802.3af, 802.3at, 802.3bt
PoE Out ports:
1
Output Voltage [V]:
55
Physical characteristics
Protection class:
IP40
LED indication:
Yes
Operating temperature [°C]:
-40 up to 65
Weight [g]:
400
Width [mm]:
35
Height [mm]:
135
Depth [mm]:
95
Product description

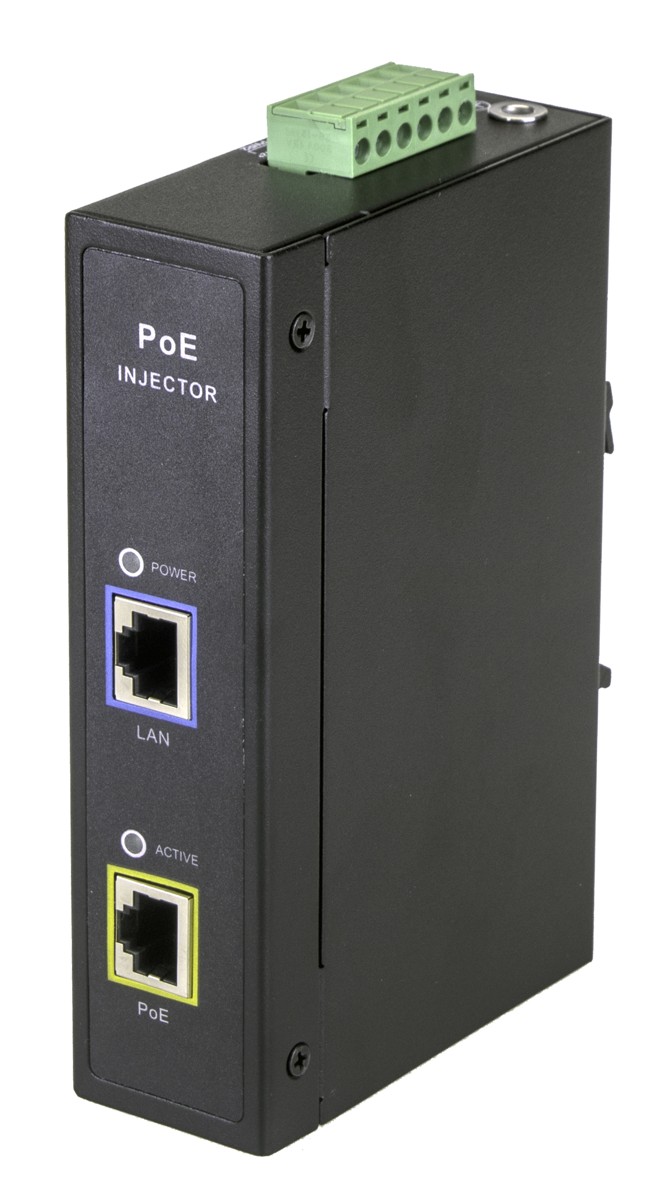

MaxLink MAXPIDIN60 is an active DIN rail mounting PoE injector with DC power input from 12 to 48 V and built in power converter. The output of this power supply is 1Gbit port with support of the 802.3af/at (55 V) which is dedicated for Wi-Fi, VoIP, or wireless links. The PoE's distribution is on the pins 1, 2, 7, 8 (-), 3, 4, 5, 6 (+). The second 1Gbit LAN port is used for data input. Total power is 60 W. The main advantage of this power supply is 6kV (10/700us) overvoltage protection.
This PoE injector is best for using in the places where you already have a main power supply such as the solar panels or a high voltage power supply.
Download
DatasheetGPSR
