MaxLink AFA-2 Passive PoE extractor

MaxLink AFA-2 Passive PoE extractor
MaxLink AFA-2 Passive PoE extractor
×
0/0
MaxLink AFA-2 Passive PoE extractor
MaxLink AFA-2 Passive PoE extractor
MaxLink AFA-2 Passive PoE extractor
MaxLink AFA-2 Passive PoE extractor
MaxLink AFA-2 Passive PoE extractor
MaxLink AFA-2 Passive PoE extractor

Your price excl. VAT
1.26 EUR
Recycling fee 0.07 EUR
Your price with RF 1.33 EUR
Your price incl. VAT (21%) 1.61 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
 Per orig. box:  500 pcs.
Manufacturer

MaxLink

Code10900216
Part No.AFA-2
Warranty 24 months
Parameters

Product description

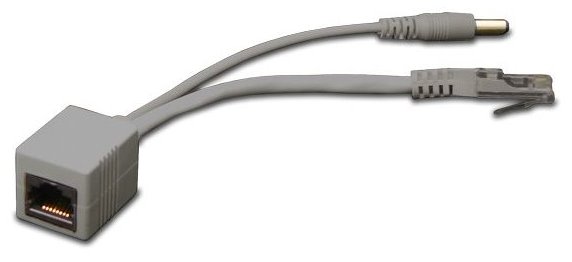

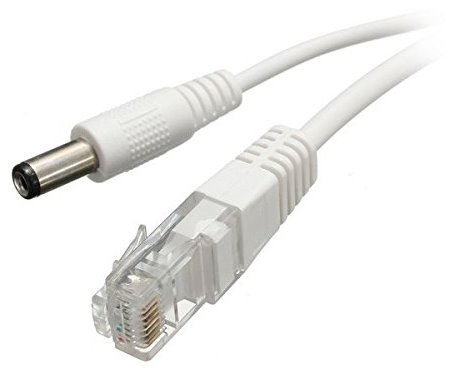

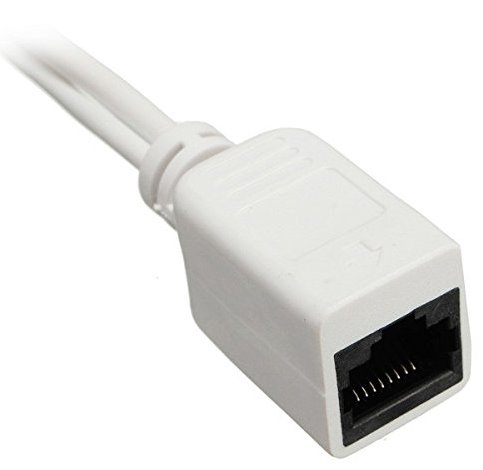

The passive PoE extractor is used to separate data and power connector at the end of the cable. Especially suitable for routers, APs and switches without passive POE support.

PoE does not supports 802.3af/at specification. Pins 4,5 (-) and 7,8 (+) are used for power supply. The maximum allowed power is 48W at a maximum voltage of 48V. The power connector has dimensions of 5.5/2.2mm.

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Connectors and Interfaces

Ethernet speed [Mb/s]: 10/100

Power

The input voltage [V]: 9 .. 48V DC
Pin powering: 4,5 (+), 7,8 (-)
PoE Out ports: 1

Physical characteristics

Operating temperature [°C]: 0 up to 40
Width [mm]: 15
Height [mm]: 150
Depth [mm]: 15
