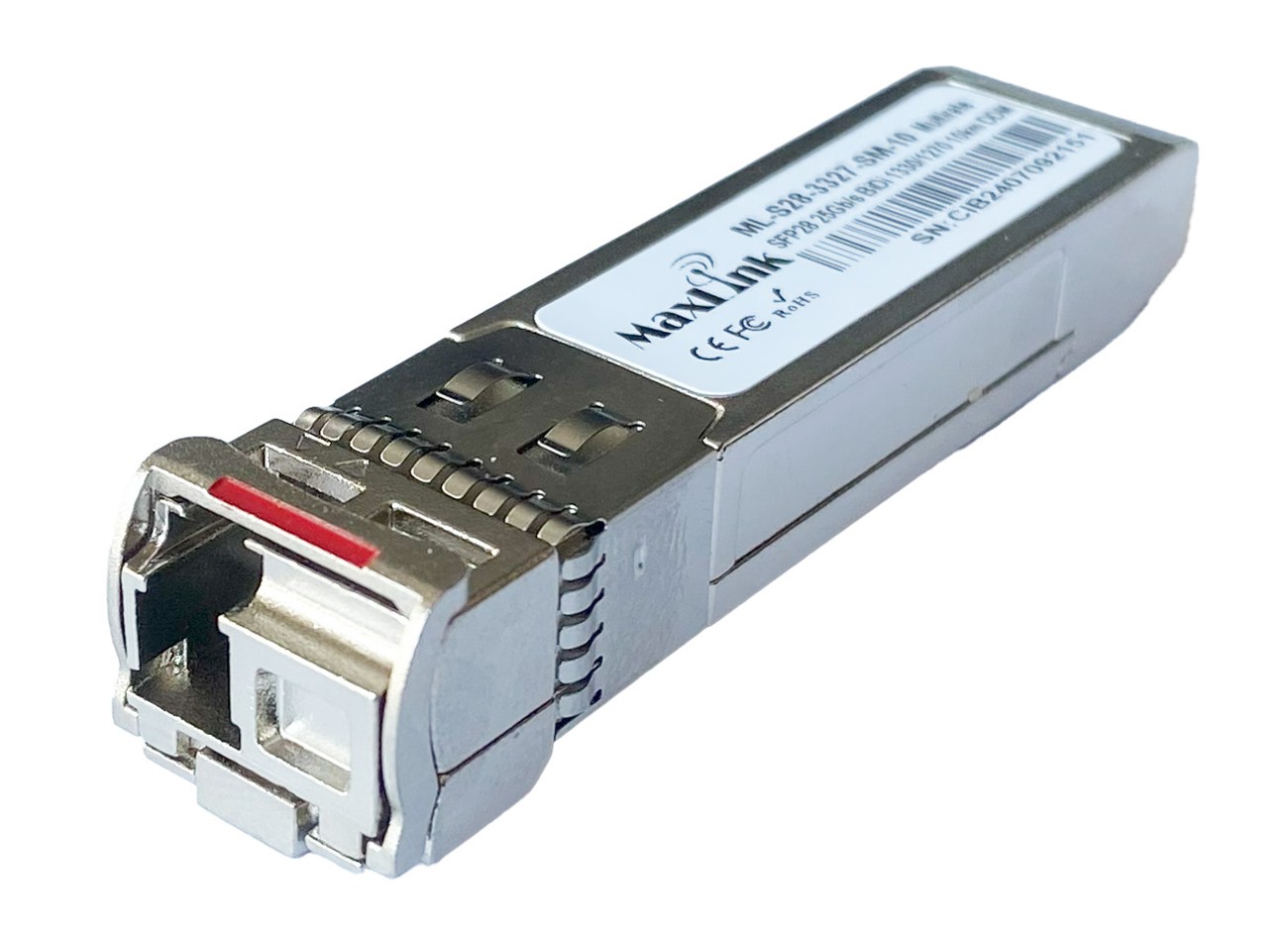

MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors

MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
×
0/0
MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors
New product
Your price excl. VAT
42.74 EUR
Recycling fee 0.07 EUR
Your price with RF 42.81 EUR
Your price incl. VAT (21%) 51.80 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
Manufacturer

MaxLink

Code10980920
Part No.ML-S28-3327-SM-10
Warranty 36 months
  • Related products1
MaxLink 25G SFP28 optical modul, 1270-1330nm, SM, BIDI, 10km, 1x LC connector
ML-S28-2733-SM-10

41.95 EUR excl. VAT
50.84 EUR incl. VAT
In Stock
Parameters

Product description

ML-S28-3327-SM-10 is a single-mode 25G WDM SFP28 module with wavelengths Tx1330/Rx1270nm, one LC connector and a maximum distance of 10km. Module supports DDM - digital diagnostics monitoring..

WDM modules use only one optical fiber for bidirectional connection, thus allowing to double the connection density without the need to replace the optical path. The module is compatible with all active elements from MikroTik and also with devices from other manufacturers "Cisco compatible". The LC connector in the module has UPC polishing.

Attention: To achieve a fully functional connection with this module, it is necessary to purchase ML-S28-2733-SM-10, see related products.

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Tomáš Petržílka, +420 702 564 566 , tomas.petrzilka@discomp.cz

Technical parameters

Optics

Format: SFP28
For cable type: Single Mode
Transmission speed: 25 Gbps
Wavelength - Tx/Rx [nm]: 1330 / 1270
Distance [km]: 10
Transfer type: WDM
Polishing type: UPC
Tx power [dBm]: -5 up to 2
Receiver sensitivity [dBm]: -12

Connectors and Interfaces

Optical Connectors: (1) LC

General

Compatibility: Universal

Software

DDMI - diagnostics: Yes
