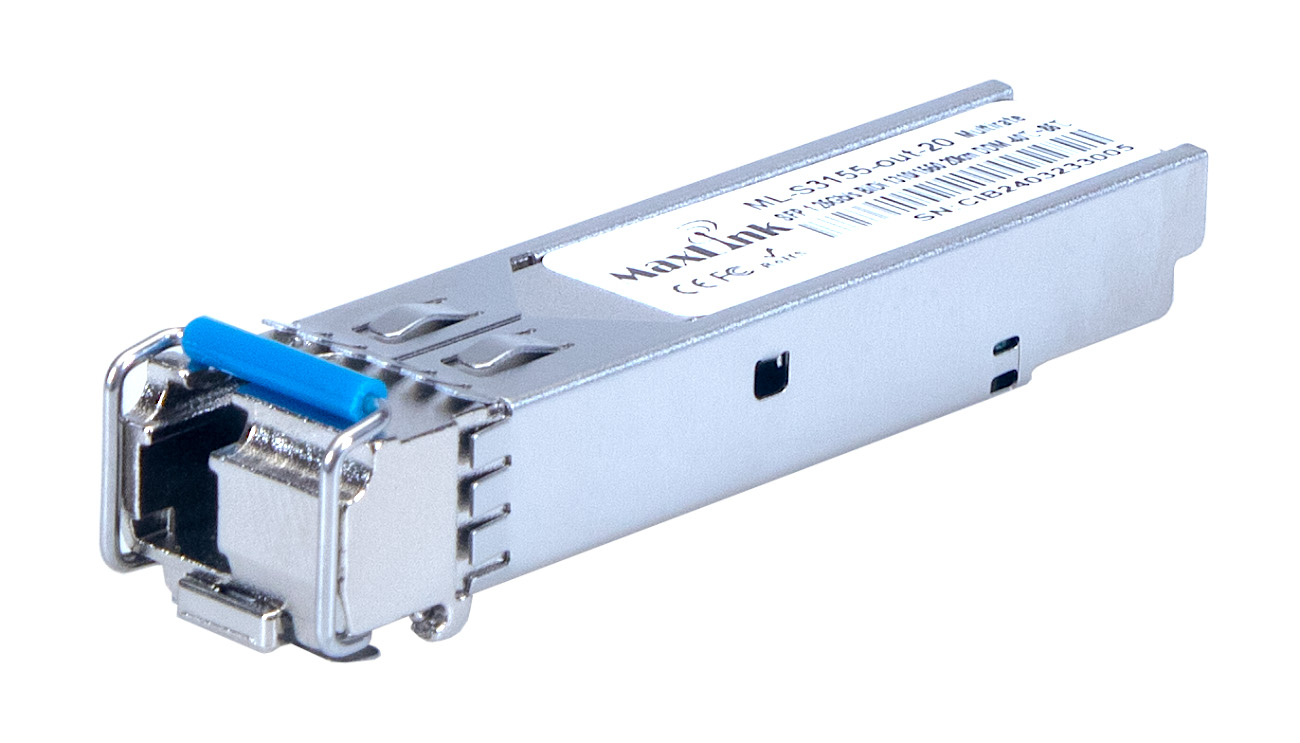

MaxLink 1.25G SFP optical module, industrial -40°C +85°C, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDM
MaxLink 1.25G SFP optical module, industrial -40°C +85°C, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDM
×
0/0
Your price excl. VAT
6.85 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 6.92 EUR |
| Your price incl. VAT (21%) | 8.37 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 10980875 | |
| Part No. | ML-S3155-out-20 | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
20km, průmyslový
ML-S3155-out-20
6.85 EUR
ML-S5531-out-20
9.39 EUR excl. VAT
11.45 EUR incl. VAT
In Stock
ML-S5531-20
8.64 EUR excl. VAT
10.54 EUR incl. VAT
In Stock
Parameters
GPSR
Technical parameters
Optics
Format:
SFP
For cable type:
Single Mode
Transmission speed:
1 Gbps
Wavelength - Tx/Rx [nm]:
1310 / 1550
Distance [km]:
20
Transfer type:
WDM
Polishing type:
UPC
Tx power [dBm]:
-9 up to -3
Receiver sensitivity [dBm]:
-23
Connectors and Interfaces
Optical Connectors:
(1) LC
Physical characteristics
Operating temperature [°C]:
-40 up to 85
General
Compatibility:
Universal
Software
DDMI - diagnostics:
Yes
Product description
ML-S3155-out-20 is a 1.25G WDM SFP module with wavelengths Tx1310/Rx1550nm, one LC connector and a maximum distance 20km over single-mode optical fiber. SFP module supports DDM - digital diagnostics monitoring. The industrial version of the SFP module differs from the standard one by better components and a wider range of operating temperatures from -40°C to +85°C.
WDM SFP modules use only one optical fiber for bidirectional connection, thus allowing to double the connection density without the need to replacing the optical path. The module is compatible with all MikroTik products and with devices from other manufacturers marked as "Cisco compatible". The LC connector has UPC polishing.
Attention: To achieve a fully functional connection with this module, it is necessary to purchase ML-S5531-out-20 or ML-S5531-20, see related products.
