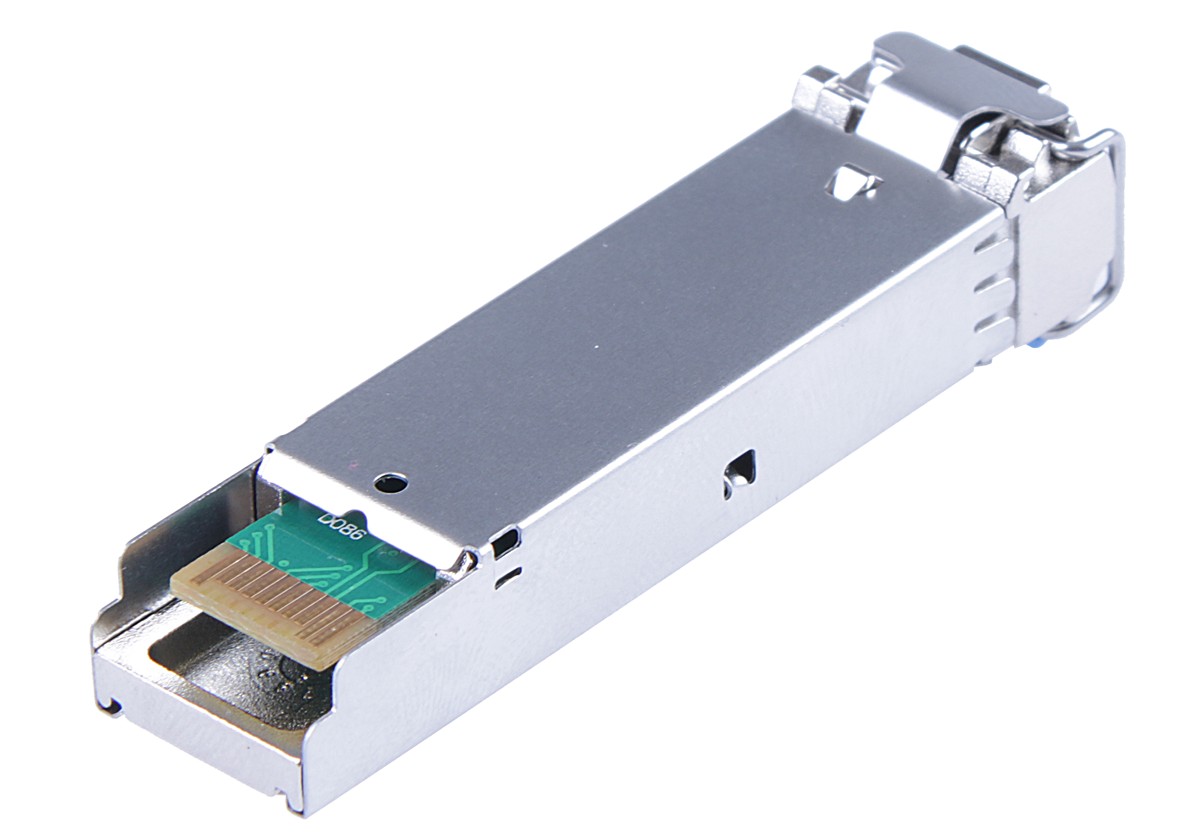

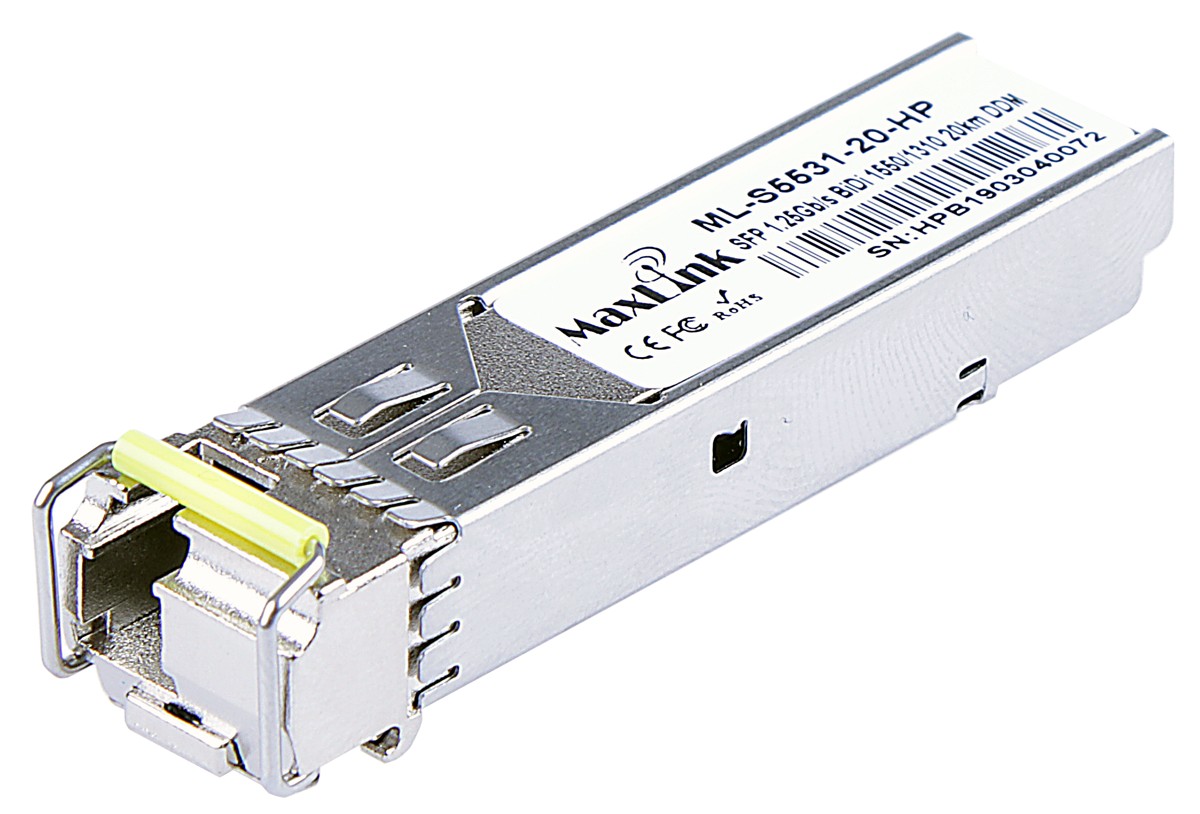

MaxLink 1.25G SFP optical HP module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDM, HP comp.
MaxLink 1.25G SFP optical HP module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDM, HP comp.
×
0/0
Your price excl. VAT
8.40 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 8.47 EUR |
| Your price incl. VAT (21%) | 10.25 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 10600060 | |
| Part No. | ML-S5531-20-HP | |
| Warranty | 36 months | |
ML-S3155-20-HP
6.17 EUR excl. VAT
7.55 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Optics
Format:
SFP
For cable type:
Single Mode
Transmission speed:
1 Gbps
Wavelength - Tx/Rx [nm]:
1550 / 1310
Distance [km]:
20
Transfer type:
WDM
Polishing type:
UPC
Tx power [dBm]:
-9 up to -3
Receiver sensitivity [dBm]:
-23
Connectors and Interfaces
Optical Connectors:
(1) LC
Physical characteristics
Operating temperature [°C]:
-10 up to 70
General
Compatibility:
HP
Software
DDMI - diagnostics:
Yes
Product description
WDM SFP modules use only one optical fiber for bidirectional linking, allowing you to double the link density without replacing the optical path. SFP module supports monitoring - DDM function. LC connectors in SFP module have UPC type grinding.
HPE compatibility
This module is suitable for HP switches with Pro-Vision (ProCurve) and ArubaOS software.
Attention:, for a fully functional connection, ML-S3155-20-HP is required for this module, see related products.
