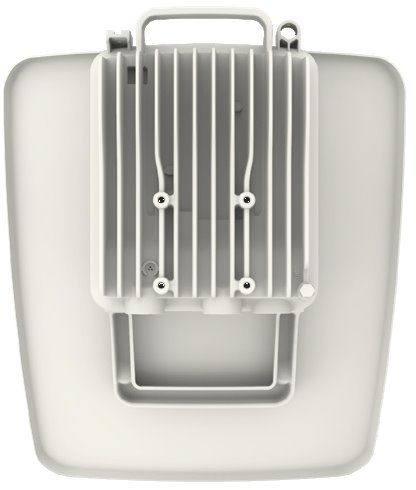

Cambium Networks cnWave V3000 Client, 60GHz, only radio unit
Your price excl. VAT
793.99 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 794.06 EUR |
| Your price incl. VAT (21%) | 960.81 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17710010 | |
| Part No. | C600500C024A | |
| Warranty | 36 months | |
C600500A004A
1 434.16 EUR excl. VAT
1 735.42 EUR incl. VAT
In Stock
C600500D001A
78.45 EUR excl. VAT
95.17 EUR incl. VAT
Not in stock
B-C600500A004A
1 063.27 EUR excl. VAT
1 286.64 EUR incl. VAT
In Stock
C600500A004B
1 433.77 EUR excl. VAT
1 734.95 EUR incl. VAT
In Stock
C600500C031B
689.21 EUR excl. VAT
834.03 EUR incl. VAT
In Stock
PK35S421V100
12.38 EUR excl. VAT
14.98 EUR incl. VAT
In Stock
LCupc/LCupc-SMD20out
25.82 EUR excl. VAT
31.24 EUR incl. VAT
Not in stock
ML-S+85D-03
8.46 EUR excl. VAT
10.32 EUR incl. VAT
In Stock
ML-S+31D-10
13.68 EUR excl. VAT
16.64 EUR incl. VAT
In Stock
ML-S+2733-10
18.58 EUR excl. VAT
22.57 EUR incl. VAT
In Stock
ML-S+3327-10
18.58 EUR excl. VAT
22.57 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Channel bandwidth [MHz]:
2160, 4320
Transmission speed - 60GHz [Mb/s]:
2700, Full Duplex
Output power 60GHz [dBm]:
60,5 (EIRP)
Elevation beam width (-6dB) [°]:
1
Azimuth beam width (-6dB) [°]:
2
Antenna gain [dBi]:
44,5
Connectors and Interfaces
LAN speed:
(1) 100M/1G/10Gbps + (1) 10/100/1000Mbps
Optical interfaces:
(1) 10Gbps
Power
Power over Ethernet:
42 .. 57V DC
Power type:
PoE
Max. power consumption [W]:
30
Physical characteristics
Protection class:
IP67
Operating temperature [°C]:
-40 up to 60
Weight [g]:
4000
Width [mm]:
346
Height [mm]:
414
Depth [mm]:
344
Software
Management:
Web management, Cambium cnMaestro cloud
Video
Product description
Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.
Details
V3000 is a 60GHz PTP/PtMP unit with a directional antenna with a beam angle of 2° (1° in the vertical direction) and a gain of 44.5dBi for long distance. The unit has 2 Gigabit ports and one optical SFP+ slot. The first Gigabit port supports passive PoE IN 44-57V DC and the second Gigabit port supports PoE Out with the 802.3at standard, which is especially suitable for powering cameras. The wireless part supports two bandwidths 2160MHz and 4320MHz (actual firmware), the real wireless link speed is 5,4 Gbps (2,7 Gbps downlink, 2,7 Gbps uplink) and supports PtMP, Mesh or PTP wireless modes. The maximum power consumption of device is 30W, includes PoE out up to 55W.
Link to cnMaestro™:
Link to LINKPLanner:
Package contains
