Cambium Networks cnWave V5000 AP, 60GHz
Your price excl. VAT
1 447.08 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 1 447.15 EUR |
| Your price incl. VAT (21%) | 1 751.05 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17710006 | |
| Part No. | C600500A004A | |
| Warranty | 36 months | |
You have a choice of 3 variantscompare all
Nové/New - V5000 AP
C600500A004A
1 447.08 EUR
C600500C003A
349.89 EUR excl. VAT
423.45 EUR incl. VAT
In Stock
C600500C024A
801.28 EUR excl. VAT
969.63 EUR incl. VAT
In Stock
C000000L141A
45.88 EUR excl. VAT
55.61 EUR incl. VAT
In Stock
C000000L137A
26.83 EUR excl. VAT
32.46 EUR incl. VAT
In Stock
B-C000000L137A
15.63 EUR excl. VAT
18.91 EUR incl. VAT
In Stock
C600500C031B
695.63 EUR excl. VAT
841.80 EUR incl. VAT
Not in stock
PK35S421V100
10.29 EUR excl. VAT
12.45 EUR incl. VAT
In Stock
LCupc/LCupc-SMD20out
26.03 EUR excl. VAT
31.50 EUR incl. VAT
Ordered, unknown date
ML-S+85D-03
8.53 EUR excl. VAT
10.41 EUR incl. VAT
In Stock
ML-S+31D-10
13.79 EUR excl. VAT
16.77 EUR incl. VAT
In Stock
ML-S+2733-10
18.74 EUR excl. VAT
22.76 EUR incl. VAT
In Stock
ML-S+3327-10
18.74 EUR excl. VAT
22.76 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Channel bandwidth [MHz]:
2160, 4320
Transmission speed - 60GHz [Mb/s]:
7600, Full Duplex
Output power 60GHz [dBm]:
38 (EIRP)
Elevation beam width (-6dB) [°]:
20
Azimuth beam width (-6dB) [°]:
2x 140
Antenna gain [dBi]:
22,5
Connectors and Interfaces
SFP cage:
Yes
LAN speed:
(1) 100M/1G/10Gbps + (1) 10/100/1000Mbps
Optical interfaces:
(1) 10Gbps
Power
Power over Ethernet:
802.3bt, 42 .. 57V DC
Power type:
PoE
Max. power consumption [W]:
35
Physical characteristics
Protection class:
IP67
Operating temperature [°C]:
-40 up to 60
Weight [g]:
4000
Width [mm]:
185
Height [mm]:
280
Depth [mm]:
102
Software
Management:
Web management, Cambium cnMaestro cloud
Video
Product description
Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.
Details

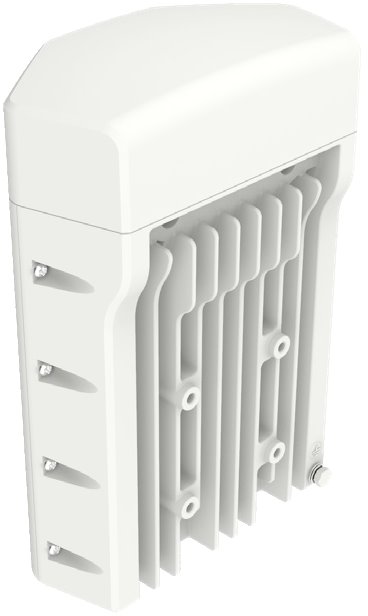

V5000 is a 60GHz Access Point unit with two sector antennas with a beam angle of 2x 140° (20° in the vertical direction), antenna gain 22.5dBi and the ability to connect 4 distribution nodes or up to 30 CPE units. The unit has a total of 2 Ethernet ports and one optical SFP+ slot. The first port supports 100M/1G and 10G speeds, including passive PoE IN 44-57V DC, and the second Gigabit port also supports PoE Out with the 802.3at standard, which is especially suitable for powering cameras. The wireless part supports two bandwidths 2160MHz and 4320MHz (future firmware), the real link speed is 7.6 Gbps (3.8 Gbps downlink, 3.8 Gbps uplink) and supports PtMP, Mesh or PTP wireless modes. The maximum power consumption of the device is 35W, in the case of using PoE Out it can be up to 60W.
Link to cnMaestro™:
Link to LINKPLanner:
