Cambium Networks cnWave V1000 Client, 60GHz - Bazar
We are sorry, this product is no longer in our offer.
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | B17710008 | |
| Part No. | B-C600500C003A | |
You have a choice of 3 variantscompare all
Použité
B-C600500C003A
Used
199.25 EUR
C600500A004A
1 451.30 EUR excl. VAT
1 756.16 EUR incl. VAT
In Stock
MAXPI15
11.66 EUR excl. VAT
14.19 EUR incl. VAT
In Stock
B-C600500A004A
1 075.98 EUR excl. VAT
1 302.02 EUR incl. VAT
In Stock
C600500A004B
1 451.30 EUR excl. VAT
1 756.16 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.45 EUR excl. VAT
4.17 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Channel bandwidth [MHz]:
2160, 4320
Transmission speed - 60GHz [Mb/s]:
1000, Full Duplex
Output power 60GHz [dBm]:
38 (EIRP)
Security:
128bit AES
Elevation beam width (-6dB) [°]:
20
Azimuth beam width (-6dB) [°]:
40
Type of antenna:
Built-in
Antenna gain [dBi]:
22,5
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE
Max. power consumption [W]:
10
Physical characteristics
Protection class:
IP67
Operating temperature [°C]:
-40 up to 60
Weight [g]:
250
Width [mm]:
85
Height [mm]:
140
Depth [mm]:
40
Software
Default IP address:
169.254.1.1
Default login and password:
admin / admin
Video
Product description

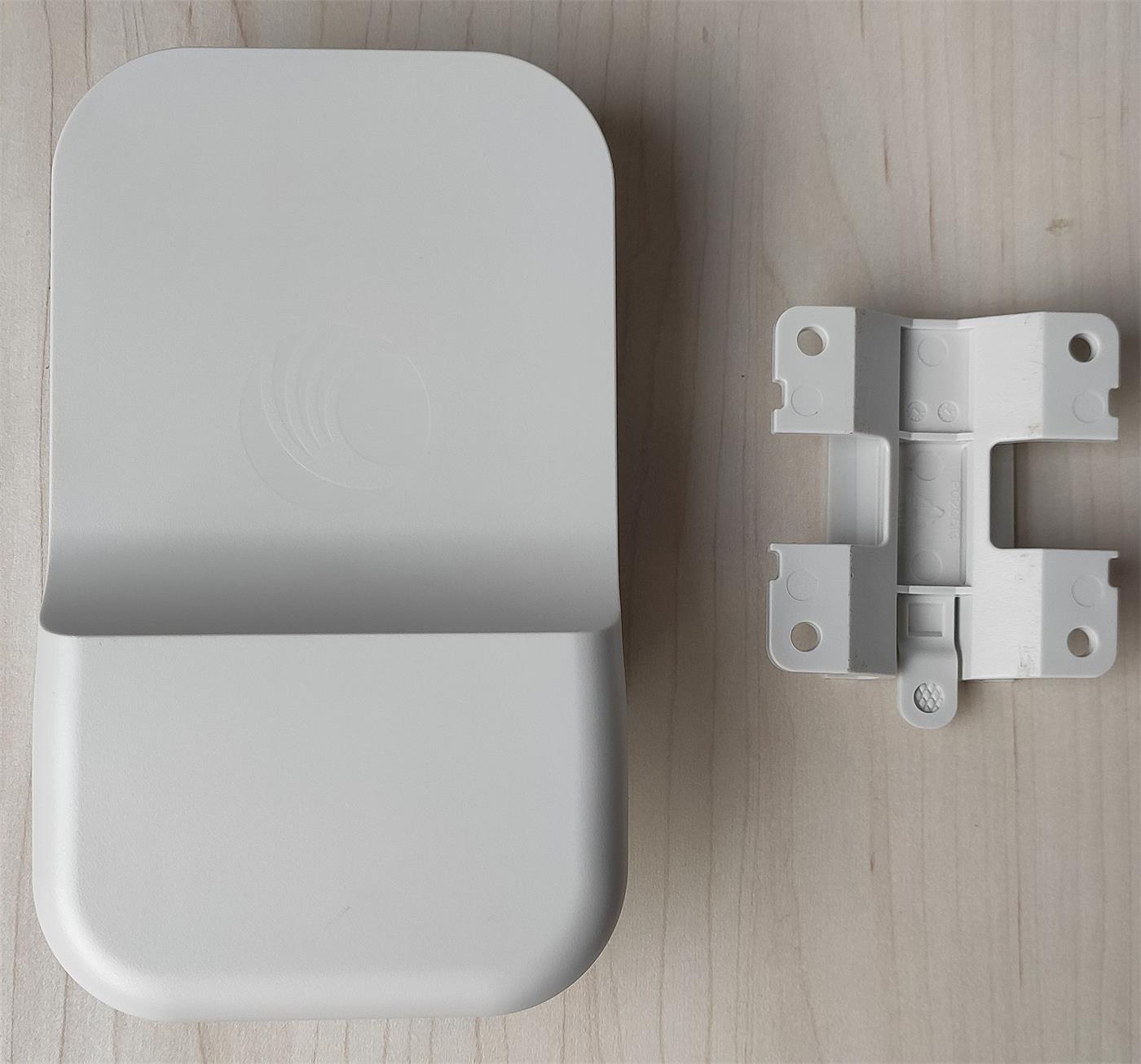

The product is fully functional and used at the exhibition. It may not contain complete accessories or original packaging.
Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.
Details

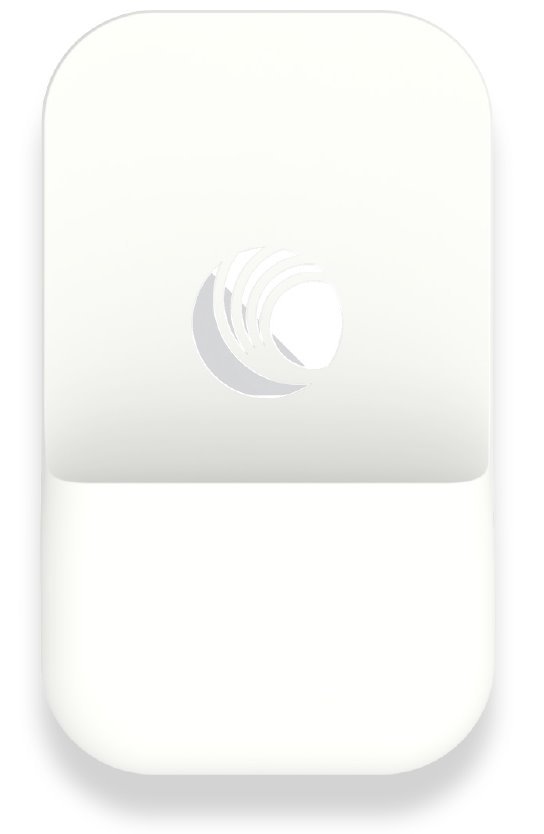

V1000 is a 60GHz client unit with a directional antenna with a beam angle of 40° (20° in the vertical direction) and a gain of 22.5dBi for easy installation. The unit can be powered via Gigabit Ethernet using 802.3af PoE. The wireless part supports two bandwidths 2160MHz and 4320MHz (future fw), the real wireless link speed is 2 Gbps (1 Gbps downlink, 1 Gbps uplink) and supports PtMP, Mesh or PTP (future fw) wireless modes. The maximum power consumption of the device is only 10W.
Package contains
