UNV NVR NVR502-16B-P16, 16 channels, 16x PoE, 2x HDD, Prime
UNV NVR NVR502-16B-P16, 16 channels, 16x PoE, 2x HDD, Prime
×
0/0
Your price excl. VAT
438.74 EUR
| Recycling fee | 0.40 EUR |
|---|---|
| Your price with RF | 439.14 EUR |
| Your price incl. VAT (21%) | 531.36 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10980567 | |
| Part No. | NVR502-16B-P16 | |
| Warranty | 36 months | |
You have a choice of 6 variantscompare all
16 kanálů, 16x PoE
NVR502-16B-P16
438.74 EUR
M9905
1.42 EUR excl. VAT
1.72 EUR incl. VAT
In Stock
WD11PURZ
49.25 EUR excl. VAT
59.67 EUR incl. VAT
In Stock
WD23PURZ
64.66 EUR excl. VAT
78.31 EUR incl. VAT
In Stock
ST4000VX016
83.79 EUR excl. VAT
101.46 EUR incl. VAT
In Stock
WD43PURZ
92.41 EUR excl. VAT
111.89 EUR incl. VAT
In Stock
WD33PURZ
83.40 EUR excl. VAT
100.99 EUR incl. VAT
To order within 48h
WD64PURZ
141.03 EUR excl. VAT
170.72 EUR incl. VAT
In Stock
WD85PURZ
189.29 EUR excl. VAT
229.04 EUR incl. VAT
In Stock
WD101PURP
287.75 EUR excl. VAT
348.25 EUR incl. VAT
To order within 48h
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Max. recording resolution:
16MP
Connectors and Interfaces
USB ports 3.0:
1
Number of eSata ports:
2
Number of Sata connectors:
2
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
3840 x 2160
Audio:
1 input, 1 output
Alarm:
Yes
LAN speed:
(1) 10/100/1000Mbps
USB ports 2.0:
1
HDMI interface:
Yes
Power
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
16
PoE budget [W]:
240
Max. power consumption [W]:
20
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Operating temperature [°C]:
-10 up to 55
Weight [g]:
2600
Width [mm]:
380
Height [mm]:
53
Depth [mm]:
322
Hardware
Number of supported IP cameras:
16
Number of supported HDD:
2
Supported HDD capacity [TB]:
20
Incoming bandwidth [Mb/s]:
320
Outgoing bandwidth [Mb/s]:
160
Compression standard
Video compression:
H.264, H.265, Ultra 265
General
Technology and conveniences:
People counting
Product description

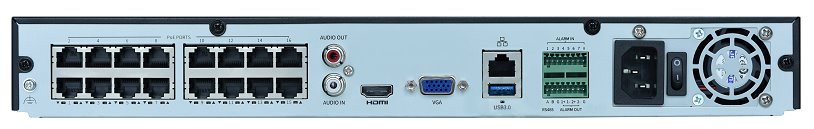

The NVR recorder NVR502-16B-P16, designed for 16 cameras, can accommodate 2 HDDs with a total capacity of up to 10 TB. The recorder is equipped with one dedicated gigabit LAN port for network connection, 16x LAN ports with 802.3af/at PoE support (30W/port) for powering and communication with cameras, providing a total PoE budget of 240W. It also features HDMI, VGA, two USB ports, and alarm as well as audio input/output. The device's power consumption is less than 20 W (without connected HDD).
The maximum incoming data rate is 320 Mbps, while the outgoing data rate is 160 Mbps. It supports Ultra 265 / H.265 / H.264 codecs and is compatible with cameras from other manufacturers that adhere to the ONVIF standard.
