UNV NVR NVR301-08X-P8, 8 channels, 8x PoE, 1x HDD, easy
We are sorry, this product is no longer in our offer.
UNV NVR NVR301-08X-P8, 8 channels, 8x PoE, 1x HDD, easy
×
0/0
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Max. recording resolution:
8MP

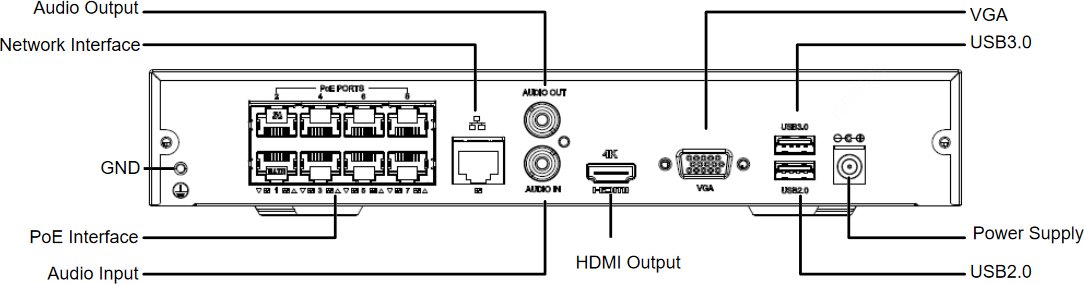

Connectors and Interfaces
USB ports 3.0:
1
Number of Sata connectors:
1
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
3840 x 2160
Audio:
Yes
LAN speed:
(9) 10/100Mbps
USB ports 2.0:
1
HDMI interface:
Yes
Power
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
8
PoE budget [W]:
75
Max. power consumption [W]:
9
Power via connector/terminal:
52V DC
Physical characteristics
Design:
Rackmount
"U" positions:
1
Operating temperature [°C]:
-10 up to 55
Weight [g]:
1000
Width [mm]:
260
Height [mm]:
47
Depth [mm]:
240
Hardware
Number of supported IP cameras:
8
Number of supported HDD:
1
Supported HDD capacity [TB]:
10
Incoming bandwidth [Mb/s]:
80
Outgoing bandwidth [Mb/s]:
64
Compression standard
Video compression:
H.264, H.265
General
Camera class:
Easy
Product description
Middle-end NVR device for 8 IP cameras and 1 HDD up to 6 TB. Recorder is equipped with 8 PoE ports 10/100 Mbps and one LAN port 10/100 Mbps for network connection. The cameras can be powered with a total power of 75 W. The maximum power per port is 30 W. Max consumption of the device is less than 9 W (without connected HDD). The device is powered by 52V DC adapter which is included.
Maximum input rate is 80 Mbps, output rate is 64 Mbps. It supports Ultra 265 / H.265 / H.264 codecs and also allows you to connect third-party cameras that support standard ONVIF.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
Package contains
Download
Datasheet Firmware, software a manualyGPSR
