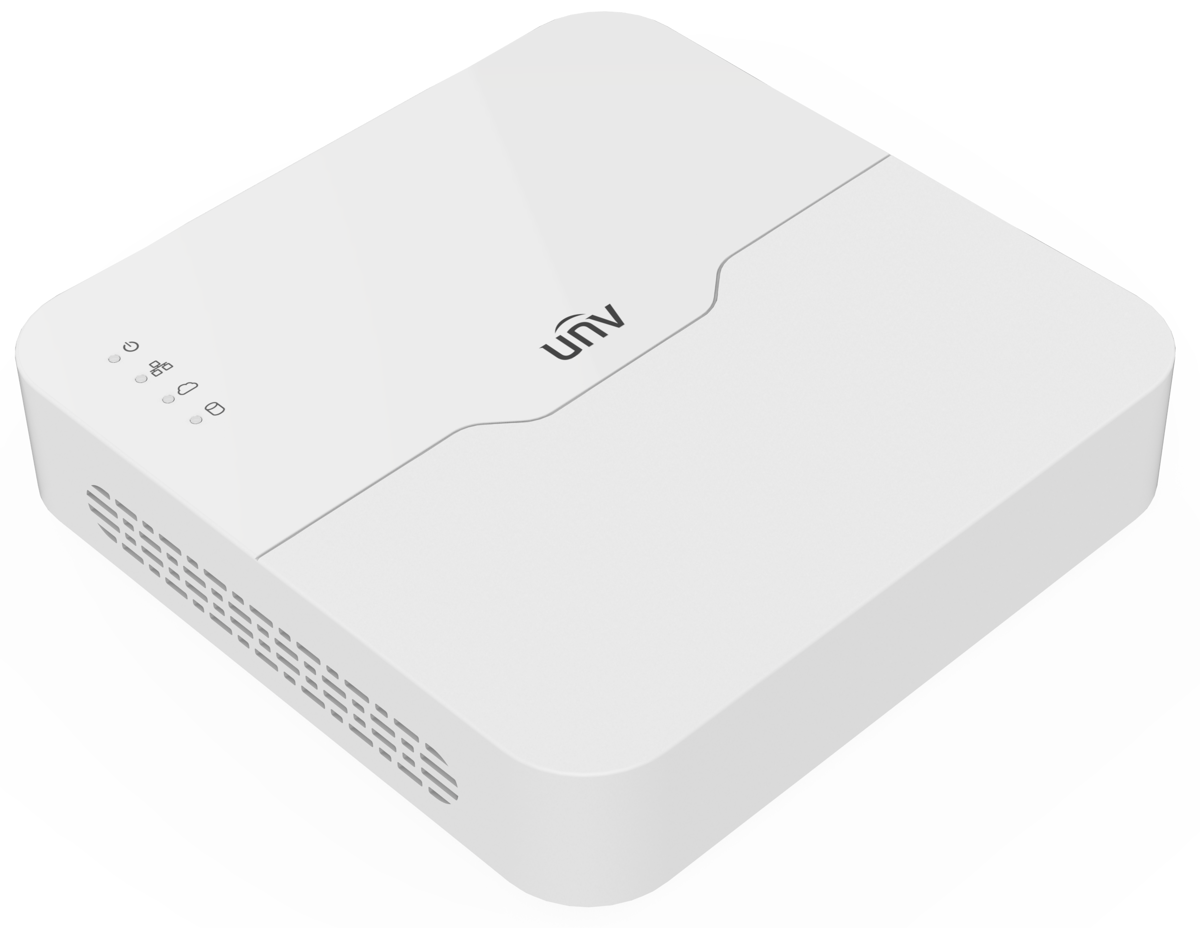

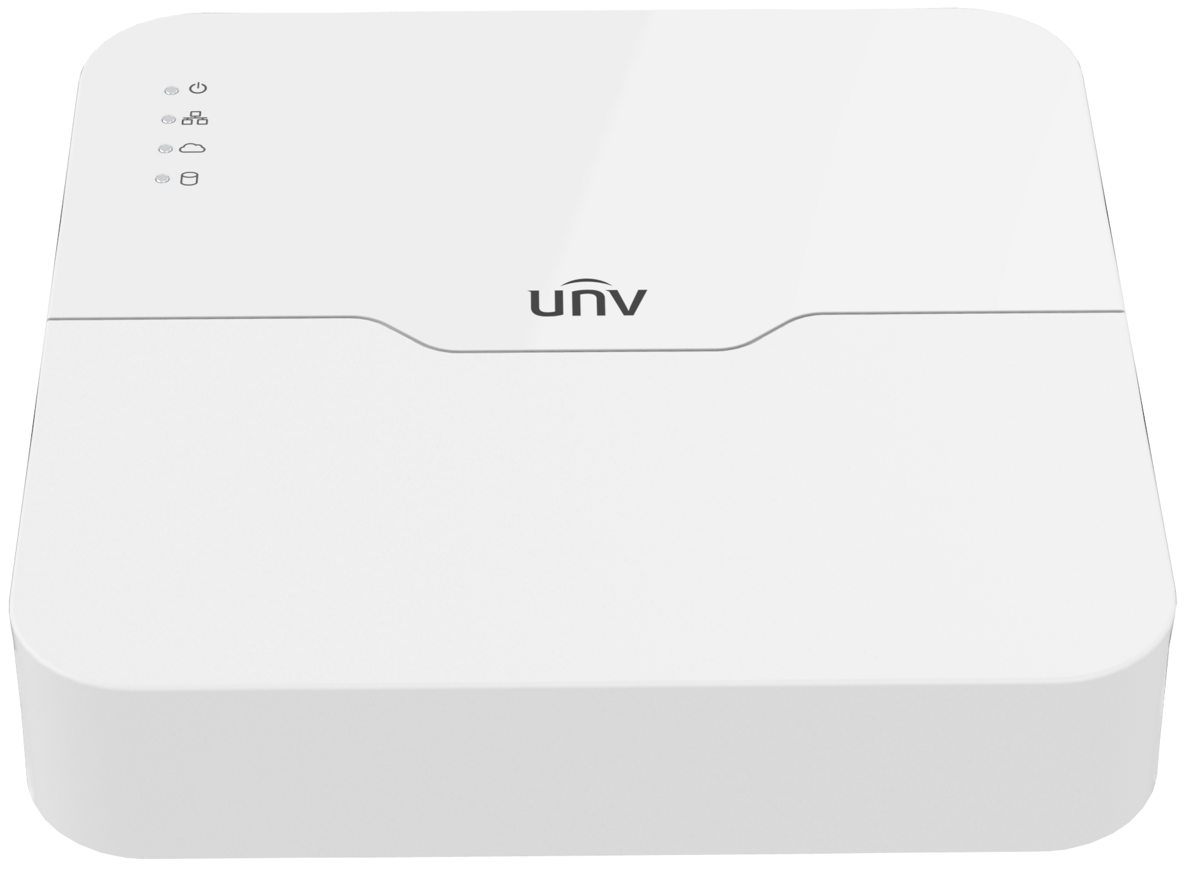

UNV NVR NVR301-08LB-P8, 8 channels, 8x PoE, 1x HDD, easy
We are sorry, this product is no longer in our offer.
UNV NVR NVR301-08LB-P8, 8 channels, 8x PoE, 1x HDD, easy
×
0/0
FS-A1-250-G
16.51 EUR excl. VAT
19.98 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Max. recording resolution:
2MP
Connectors and Interfaces
Number of Sata connectors:
1
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
1920 x 1080 (Full HD)
Audio:
Yes
LAN speed:
(9) 10/100Mbps
USB ports 2.0:
2
HDMI interface:
Yes
Power
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
8
PoE budget [W]:
108
Max. power consumption [W]:
8
Power via connector/terminal:
52V DC
Physical characteristics
Design:
Desktop
Operating temperature [°C]:
-10 up to 55
Weight [g]:
700
Width [mm]:
270
Height [mm]:
42
Depth [mm]:
205
Hardware
Number of supported IP cameras:
8
Number of supported HDD:
1
Supported HDD capacity [TB]:
10
Incoming bandwidth [Mb/s]:
40
Outgoing bandwidth [Mb/s]:
40
Compression standard
Video compression:
H.264, H.265
General
Camera class:
Easy
Software
Default IP address:
192.168.1.30
Default login and password:
admin / 123456
Product description
Medium NVR device for 8 IP cameras and 1 HDD up to 10 TB. Recorder is equipped with 8 POE ports 10/100 Mbps and one LAN port 10/100 Mbps for network connection.
The cameras can be powered with a total power of 108 W. The maximum power per port is 30 W.
Max consumption of the device is less than 5.5 W (without connected HDD).
The device is powered by 52V DC adapter which is included
Maximum input rate is 40 Mbps, output rate is 40 Mbps. It supports Ultra 265 / H.265 / H.264 codecs and also allows you to connect third-party cameras that support standard ONVIF.
