UNV IP turret kamera - IPC3634SE-ADZK-WL-I0, 4MP, 2,8-12mm, ColorHunter, Prime3
Your price excl. VAT
Manufacturer |
Uniview |
|
---|---|---|
Code | 10980614 | |
Part No. | IPC3634SE-ADZK-WL-I0 | |
Warranty | 36 months |
You have a choice of 2 variantscompare all
4MP. 2,8-12mm, bílá
IPC3634SE-ADZK-WL-I0
Price after login
TR-WM03-B-IN
Price after login
In Stock
TR-JB07/WM03-F-IN
Price after login
In Stock
TR-A01-IN
Price after login
In Stock
TR-CM24-IN
Price after login
In Stock
SDCS2/256GB
20.56 EUR excl. VAT
24.90 EUR incl. VAT
In Stock
SDCE/256GB
25.82 EUR excl. VAT
31.27 EUR incl. VAT
In Stock
M9905
1.42 EUR excl. VAT
1.72 EUR incl. VAT
In Stock
SDCE/128GB
19.53 EUR excl. VAT
23.66 EUR incl. VAT
In Stock
SDCS2/128GB
11.90 EUR excl. VAT
14.42 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.75 EUR excl. VAT
9.40 EUR incl. VAT
In Stock
SDCS2/64GB
7.83 EUR excl. VAT
9.50 EUR incl. VAT
In Stock
SDCE/64GB
12.89 EUR excl. VAT
15.62 EUR incl. VAT
In Stock
SDCS2/32GB
6.45 EUR excl. VAT
7.83 EUR incl. VAT
In Stock
SDCE/32GB
10.64 EUR excl. VAT
12.90 EUR incl. VAT
In Stock
DS-2FP2020
Price after login
In Stock
MAXPI15
11.63 EUR excl. VAT
14.16 EUR incl. VAT
In Stock
MAXPI15S
8.82 EUR excl. VAT
10.76 EUR incl. VAT
Expected 29.1.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Varifocal - motorized
Lens [mm]:
2,8 to 12 (adjustable)
Illumination:
IR, White light
Illumination range [m]:
30
Viewing Angle [°]:
49 up to 102
Day/night mode:
Color
Minimum illumination [Lux]:
0,0005
Image sensor ["]:
1/1.8
Resolution:
4MP
Max. resolution [pixels]:
2688 x 1520
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output, Microphone
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
10
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Buttons:
Reset
Operating temperature [°C]:
-60 up to 65
Weight [g]:
660
Width [mm]:
129
Height [mm]:
110
Depth [mm]:
129
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
MJPEG, H.264, H.265
General
Camera class:
Prime
Technology and conveniences:
ColorHunter
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

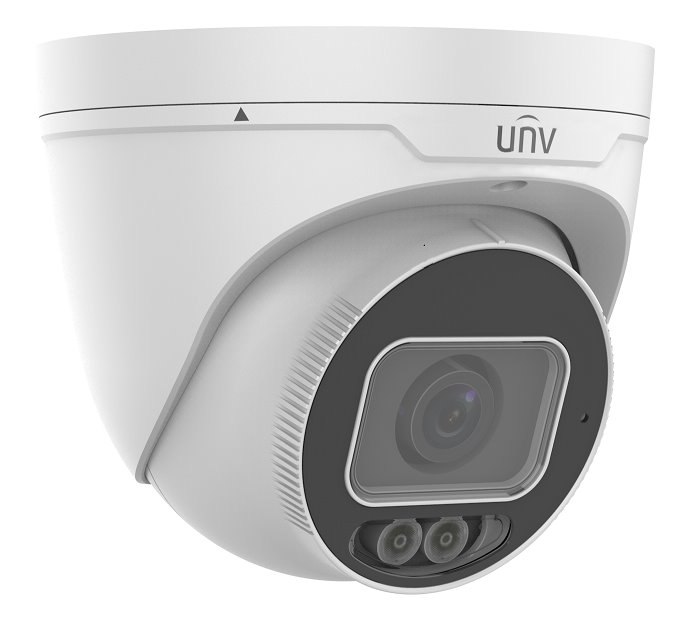

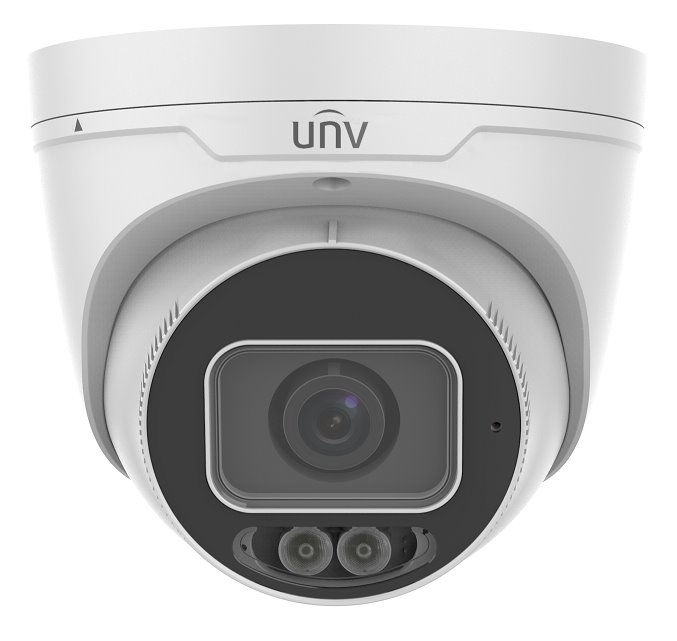

IP camera in the Turret design, equipped with a 4MP sensor (2688 x 1520, 30 fps), varifocal lens with a focal length of 2.8-12mm, viewing angle of 49°-102°, two white LEDs for illumination at a distance of up to 30m, 120dB true WDR against direct light, microphone, audio input/output, alarm input/output, microSD card slot up to 256GB capacity, 1/1.8" sensor, and comes with IP67 water resistance certification and IK10 vandal protection. The camera can be powered by a 12V DC adapter or a standard POE 802.3af from a switch or injector. The maximum power consumption of the camera is 10W.
Key Features
ColorHunter Technology
The super large and high-quality lens with an F1.0 aperture can gather 4x more light compared to the traditional F2.0 aperture. The camera delivers an exemplary image result during the day, including sharpness that is not common in CCTV + adds a colorful view in "night mode". To help the camera see in complete darkness, integrated warm LED light (visible to the human eye) assists in providing color. The light can be completely turned off, and if there is a nearby lamp or other external light source, the integrated LED is likely not needed at all.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets. In a few years of its existence, it has risen to the top ranks in sales volume and has become known for its products, emphasizing quality while maintaining affordable prices. Even the basic series of products feature many advanced functions.
