UNV IP turret kamera - IPC3624LE-ADF28K-WL, 4MP, 2.8mm, ColorHunter, 1/1.8"
Your price excl. VAT
95.30 EUR
Recycling fee | 0.48 EUR |
---|---|
Your price with RF | 95.78 EUR |
Your price incl. VAT (21%) | 115.89 EUR |
blank |
Availability
at our branches
at our branches
Manufacturer |
Uniview |
|
---|---|---|
Code | 10980590 | |
Part No. | IPC3624LE-ADF28K-WL | |
Warranty | 36 months |
You have a choice of 2 variantscompare all
2.8mm
IPC3624LE-ADF28K-WL
95.30 EUR
TR-JB03-I-IN
Price after login
In Stock
TR-JB07/WM03-G-IN
Price after login
In Stock
TR-WM03-D-IN
Price after login
In Stock
TR-A01-IN
Price after login
In Stock
TR-CM24-IN
Price after login
In Stock
M9905
1.43 EUR excl. VAT
1.73 EUR incl. VAT
In Stock
SDCE/128GB
19.82 EUR excl. VAT
24.01 EUR incl. VAT
In Stock
SDCS2/128GB
12.02 EUR excl. VAT
14.57 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.72 EUR excl. VAT
9.37 EUR incl. VAT
To order within 48h
SDCS2/64GB
7.96 EUR excl. VAT
9.66 EUR incl. VAT
In Stock
SDCE/64GB
14.21 EUR excl. VAT
17.22 EUR incl. VAT
In Stock
SDCS2/32GB
6.53 EUR excl. VAT
7.93 EUR incl. VAT
In Stock
SDCE/32GB
11.50 EUR excl. VAT
13.94 EUR incl. VAT
In Stock
MAXPI15
11.70 EUR excl. VAT
14.24 EUR incl. VAT
In Stock
MAXPI15S
8.88 EUR excl. VAT
10.83 EUR incl. VAT
Expected 12.2.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
White light
Illumination range [m]:
30
Viewing Angle [°]:
110
Day/night mode:
Color
Minimum illumination [Lux]:
0,0005
Image sensor ["]:
1/1.8
Resolution:
4MP
Max. resolution [pixels]:
2688 x 1520
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 128GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
6
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
450
Width [mm]:
118
Height [mm]:
106
Depth [mm]:
118
Color:
White
Compression standard
Bit rate:
128Kbps ~ 6Mbps
Number of streams:
2
Video compression:
MJPEG, H.264, H.265
General
Technology and conveniences:
ColorHunter
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

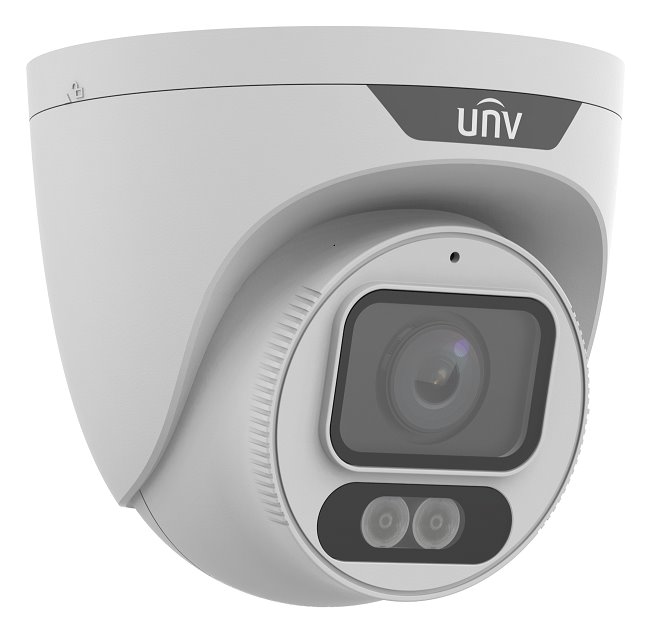

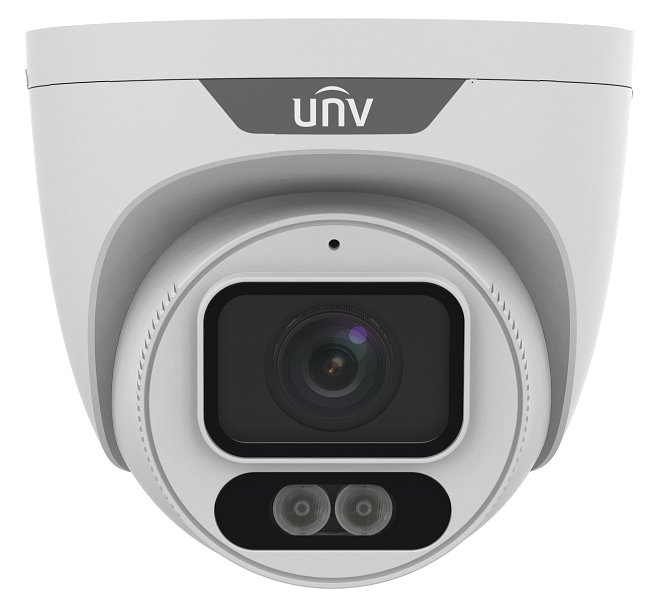

The Turret IP camera features a 4MP sensor (2688 x 1520, 30 fps), a fixed lens with a focal length of 2.8mm, a viewing angle of 110°, two white LEDs for illumination at distances up to 30m, 120dB true WDR against direct light, a microphone, a microSD card slot up to 256GB, a 1/1.8" sensor, and IP67 certification against water. The camera can be powered via a 12V DC adapter or conventional POE 802.3af from either a switch or injector. The maximum power consumption of the camera is 6W.
Key Features
ColorHunter technology
Super large and high-quality F1.0 lens can collect 4x more light compared to traditional F2.0 aperture. The camera delivers an exemplary image result during the day, including sharpness that is not common in CCTV + adds a color view in "night mode". The integrated warm LED light (visible to the eye) helps the camera see in color at night in complete darkness. The light can be turned off completely, and if there is a lamp or other external lighting source nearby, the integrated LED will probably not be needed at all.
Producer Uniview
The manufacturer Uniview is a dynamically developing company both in the domestic (Asian) and European markets, and within a few years of its existence, it has reached the top ranks in sales volume and has become known for its products that emphasize quality workmanship while maintaining a reasonable price. Even the products of the basic range have many advanced features.
