UNV IP turret camera - IPC3612LB-ADF28K-H , 2MP, 2.8mm, easy
UNV IP turret camera - IPC3612LB-ADF28K-H , 2MP, 2.8mm, easy
×
0/0
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10980748 | |
| Part No. | IPC3612LB-ADF28K-H | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
2MP, 2.8mm, bílá
IPC3612LB-ADF28K-H
Price after login
M9905
1.43 EUR excl. VAT
1.73 EUR incl. VAT
In Stock
SDCE/128GB
19.82 EUR excl. VAT
24.01 EUR incl. VAT
In Stock
SDCS2/128GB
12.02 EUR excl. VAT
14.57 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.72 EUR excl. VAT
9.37 EUR incl. VAT
To order within 48h
SDCS2/64GB
7.96 EUR excl. VAT
9.66 EUR incl. VAT
In Stock
SDCE/64GB
14.21 EUR excl. VAT
17.22 EUR incl. VAT
In Stock
SDCS2/32GB
6.53 EUR excl. VAT
7.93 EUR incl. VAT
In Stock
SDCE/32GB
11.50 EUR excl. VAT
13.94 EUR incl. VAT
In Stock
MAXPI15
11.70 EUR excl. VAT
14.24 EUR incl. VAT
In Stock
MAXPI15S
8.88 EUR excl. VAT
10.83 EUR incl. VAT
Expected 12.2.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
30
Viewing Angle [°]:
113
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Image sensor ["]:
1/2.7
Resolution:
2MP
Max. resolution [pixels]:
1920 x 1080 (Full HD)
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 128GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
7
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 60
Weight [g]:
300
Width [mm]:
118
Height [mm]:
96
Depth [mm]:
118
Color:
White
Compression standard
Bit rate:
128Kbps ~ 6Mbps
Number of streams:
2
Video compression:
MJPEG, H.264, H.265, Ultra 265
General
Camera class:
Easy
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

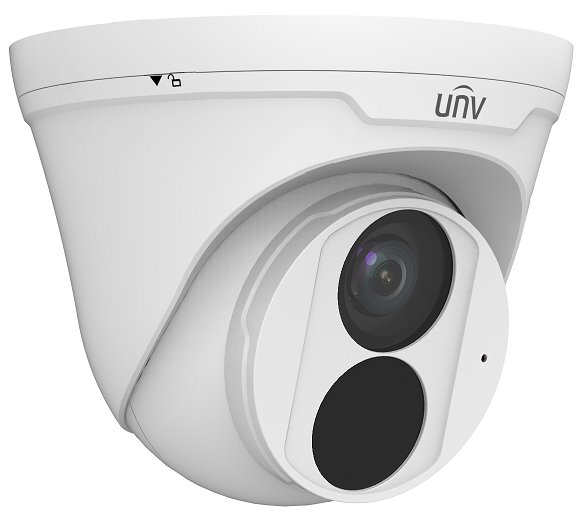

IPC3612LB-ADF28K-H is a 2-megapixel outdoor turret camera by Uniview, featuring a fixed 2.8mm lens with a 112.9° field of view and IR illumination up to 30m. The camera has an IP67 rating, 120dB WDR sensor for clear image in strong light scene, microSD slot supports up to 128GB cards, H.265 codec support.
The camera has a maximum power consumption of 7 W with IR illumination on and can be powered via a 12V DC connector or through PoE 802.3af.
Key Features
Manufacturer: Uniview
The manufacturer Uniview is a dynamically evolving company in both the domestic (Asian) and European markets. In just a few years of existence, it has risen to the top ranks in sales volume, known for its products that emphasize quality craftsmanship while maintaining competitive pricing. Even its basic line products feature many advanced functions.
