UNV IP turret camera - IPC3615SE-ADF28KM-WL-I0-BLACK, 5MP, 2.8mm, ColorHunter, Prime3, black
Your price excl. VAT
Manufacturer |
Uniview |
|
---|---|---|
Code | 10980619 | |
Part No. | IPC3615SE-ADF28KM-WL-I0-BLACK | |
Warranty | 36 months |

TR-JB03-G-IN
Price after login
In Stock

TR-JB07/WM03-G-IN
Price after login
In Stock

TR-WM03-D-IN
Price after login
In Stock

TR-CM24-IN
Price after login
In Stock

M9905
1.43 EUR excl. VAT
1.73 EUR incl. VAT
In Stock

SDCS2/256GB
22.12 EUR excl. VAT
26.79 EUR incl. VAT
To order within 48h

SDCE/256GB
25.27 EUR excl. VAT
30.60 EUR incl. VAT
In Stock

SDCS2/128GB
15.19 EUR excl. VAT
18.40 EUR incl. VAT
In Stock

SDCE/128GB
19.25 EUR excl. VAT
23.32 EUR incl. VAT
In Stock

SDCS2/64GB
8.21 EUR excl. VAT
9.96 EUR incl. VAT
In Stock

SDCE/64GB
13.79 EUR excl. VAT
16.71 EUR incl. VAT
To order within 7d

SDCS2/64GBSP
8.45 EUR excl. VAT
10.25 EUR incl. VAT
To order within 48h

SDCS2/32GB
5.70 EUR excl. VAT
6.92 EUR incl. VAT
In Stock

SDCE/32GB
11.12 EUR excl. VAT
13.48 EUR incl. VAT
In Stock

MAXPI15
11.72 EUR excl. VAT
14.27 EUR incl. VAT
Expected 21.2.2025

MAXPI15S
9.49 EUR excl. VAT
11.57 EUR incl. VAT
In Stock

PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock

PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
White light
Illumination range [m]:
30
Viewing Angle [°]:
102
Day/night mode:
Color
Minimum illumination [Lux]:
0,001
Image sensor ["]:
1/2.7
Resolution:
5MP
Max. resolution [pixels]:
2880 x 1620
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
7,5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 60
Weight [g]:
440
Width [mm]:
111
Height [mm]:
94
Depth [mm]:
111
Color:
Black
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
MJPEG, H.264, H.265
General
Camera class:
Prime
Technology and conveniences:
ColorHunter
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

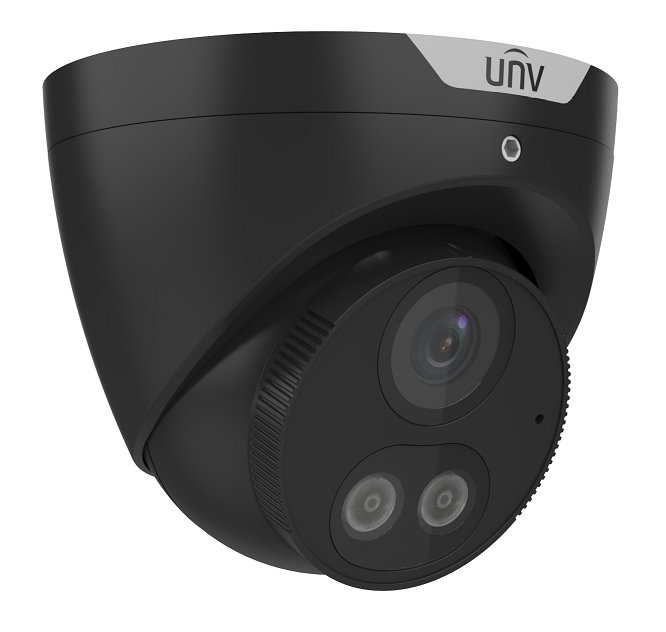

IP camera in the Turret design, equipped with a 5MP sensor (2880 x 1620, 30 fps), fixed lens with a focal length of 2.8mm, a viewing angle of 102°, two white LEDs for illumination up to a distance of 30m, 120dB true WDR against direct light, audio microphone, a slot for a microSD card up to 256GB, a 1/2.7" sensor, and it also features IP67 water resistance certification. The camera can be powered by a 12V DC adapter or a standard POE 802.3af from a switch or injector. The maximum power consumption of the camera is 7.5W.
Key Features
ColorHunter Technology
A super large and high-quality lens with an F1.0 aperture can gather 4x more light compared to a traditional F2.0 aperture. The camera provides an exemplary image result during the day, including sharpness that is not entirely common in CCTV + adds a colorful view in "night mode". To help the camera see in complete darkness at night, integrated warm LED light (visible to the eye) assists. The light can be completely turned off, and if there is a lamp or another external light source nearby, the integrated LED may not be needed at all.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets. In a few years of its existence, it has risen to the top of sales volumes and has become known for its products, emphasizing quality while maintaining a favorable price. Even basic series products come with many advanced features.
