UNV IP PTZ camera - IPC6312LR-AX4-VG, 2MP, 4x zoom, 2,8-12mm, 50m IR
UNV IP PTZ camera - IPC6312LR-AX4-VG, 2MP, 4x zoom, 2,8-12mm, 50m IR
×
0/0
Your price excl. VAT
162.21 EUR
| Recycling fee | 0.47 EUR |
|---|---|
| Your price with RF | 162.68 EUR |
| Your price incl. VAT (21%) | 196.84 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10980575 | |
| Part No. | IPC6312LR-AX4-VG | |
| Warranty | 36 months | |
You have a choice of 3 variantscompare all
2.8 - 12mm, bílá
IPC6312LR-AX4-VG
162.21 EUR
TR-JB07-D-IN
Price after login
In Stock
TR-A01-IN
Price after login
In Stock
TR-UP06-B-IN
Price after login
In Stock
SDCS2/256GB
20.43 EUR excl. VAT
24.74 EUR incl. VAT
In Stock
SDCE/256GB
25.81 EUR excl. VAT
31.25 EUR incl. VAT
In Stock
M9905
1.42 EUR excl. VAT
1.72 EUR incl. VAT
In Stock
SDCE/128GB
19.37 EUR excl. VAT
23.46 EUR incl. VAT
In Stock
SDCS2/128GB
11.70 EUR excl. VAT
14.18 EUR incl. VAT
In Stock
SDCS2/64GBSP
8.02 EUR excl. VAT
9.73 EUR incl. VAT
In Stock
SDCS2/64GB
7.91 EUR excl. VAT
9.60 EUR incl. VAT
In Stock
SDCE/64GB
12.81 EUR excl. VAT
15.52 EUR incl. VAT
In Stock
SDCS2/32GB
5.69 EUR excl. VAT
6.91 EUR incl. VAT
In Stock
SDCE/32GB
10.63 EUR excl. VAT
12.89 EUR incl. VAT
In Stock
MAXPI30
14.31 EUR excl. VAT
17.40 EUR incl. VAT
Expected 23.1.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Camera
WDR:
True WDR (120 dB) - LightHunter
Zoom (optical):
4x
Lens type:
Varifocal - motorized
Lens [mm]:
2,8 to 12 (adjustable)
Illumination:
IR
Illumination range [m]:
50
Viewing Angle [°]:
29 up to 105
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,002
Image sensor ["]:
1/2.7
Pan and Tilt:
Pan: 0° ~ 345°; Tilt: -10° ~ 110°
Speed of Pan and Tilt:
0.1° ~ 50°/s and 0.1° ~ 40°/s
Resolution:
2MP
Max. resolution [pixels]:
1920 x 1080 (Full HD)
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
Yes
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
DC connector, PoE
Max. power consumption [W]:
15
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP66
Purpose:
Outdoor
Operating temperature [°C]:
-20 up to 60
Weight [g]:
840
Width [mm]:
133
Height [mm]:
248
Depth [mm]:
133
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
MJPEG, H.264, H.265
General
Camera class:
Easy
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

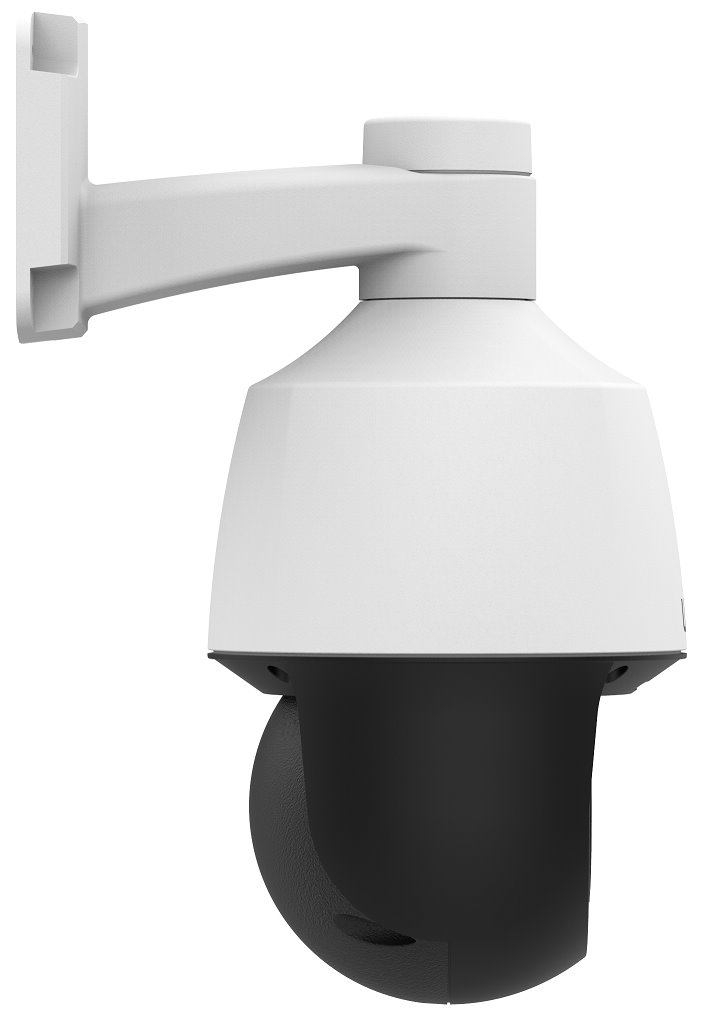

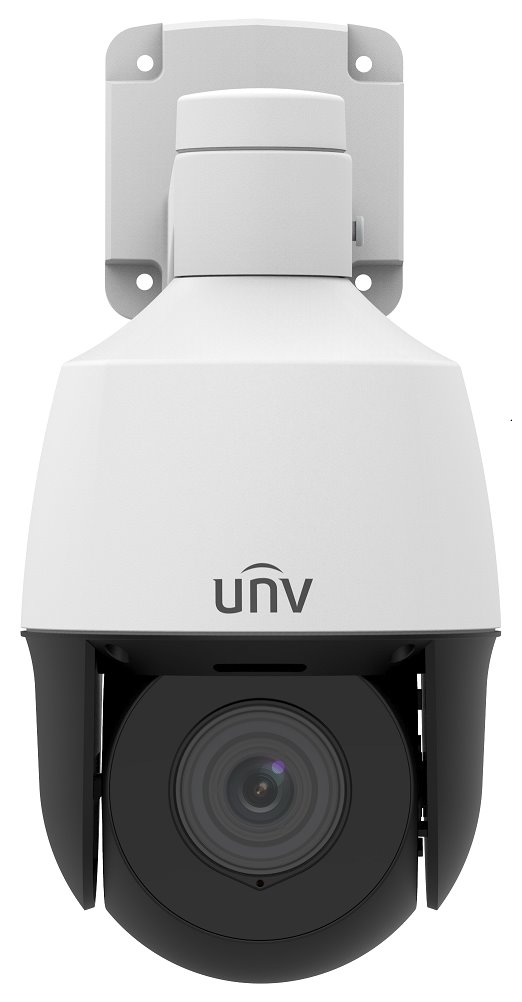

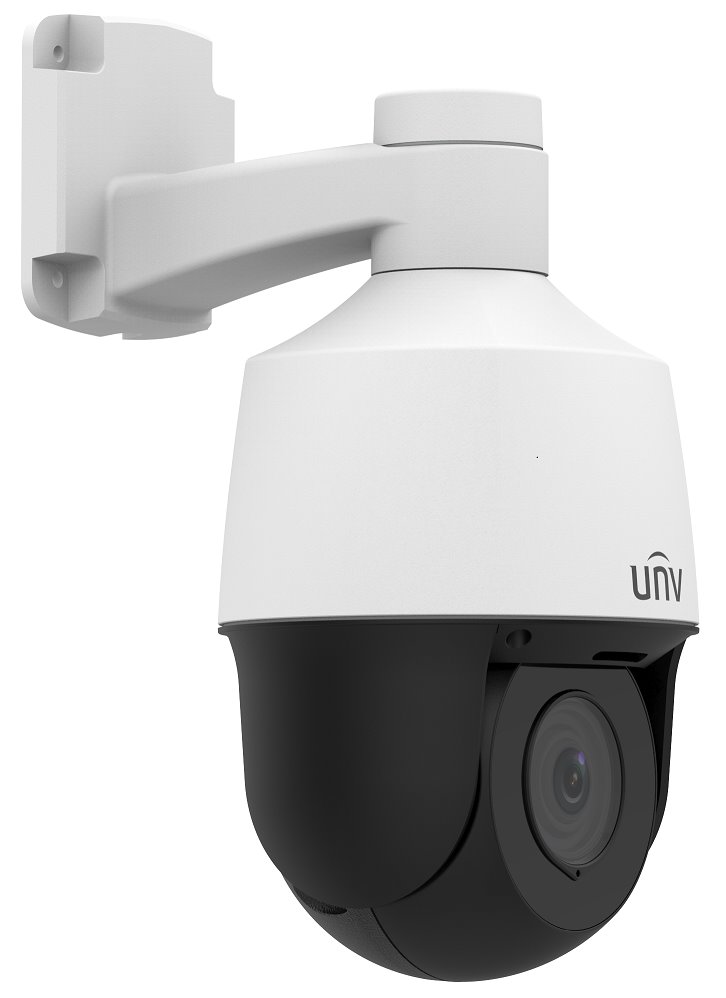

PTZ IP camera equipped with a 2MP sensor (1920 x 1080, 30 fps), varifocal lens with a focal length of 2.8-12mm, 4x optical zoom, viewing angle of 29°-105°, IR illumination with a range of up to 50m, 120dB true WDR against direct light, audio input/output, alarm input/output, microSD card slot with a capacity of 256GB, 1/2.7" sensor, and IP66 water resistance certification. The camera can be powered by a 12V DC adapter or standard POE 802.3af from a switch or injector. The maximum power consumption of the camera is 15W.
Key Features
Manufacturer: Uniview
The Uniview manufacturer is a dynamically developing company in both the domestic (Asian) and European markets. In a few years of its existence, it has risen to the top ranks in sales volume and has become known for its products, emphasizing quality in processing while maintaining competitive prices. Even the products in the basic range come with many advanced features.
