UNV IP mini PTZ kamera - IPC6415SR-X5UPW, 5MP, 2.7-13.5mm, vnitřní, easy
We are sorry, this product is no longer in our offer.
TR-WM03-B-IN
Price after login
In Stock
TR-CM24-IN
Price after login
In Stock
TR-JB07/WM03-F-IN
Price after login
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Zoom (optical):
5x
Lens type:
Varifocal - motorized
Lens [mm]:
2,7 up to 13,5 (adjustable)
Illumination:
IR
Illumination range [m]:
30
Viewing Angle [°]:
28 up to 98
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,002
Image sensor ["]:
1/2.7
Pan and Tilt:
Pan: 0° ~ 350°; Tilt: 0° ~ 90°
Speed of Pan and Tilt:
0.1° ~ 60°/s and 0.1° ~ 50°/s
Resolution:
5MP
Max. resolution [pixels]:
2592 x 1944
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
Microphone, Speaker
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3at
Power type:
PoE, DC connector
Max. power consumption [W]:
16
Power via connector/terminal:
12V DC
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 50
Weight [g]:
750
Width [mm]:
129
Height [mm]:
143
Depth [mm]:
129
Color:
White
Compression standard
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Easy
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

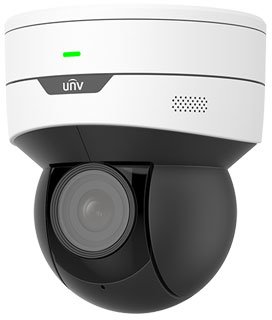

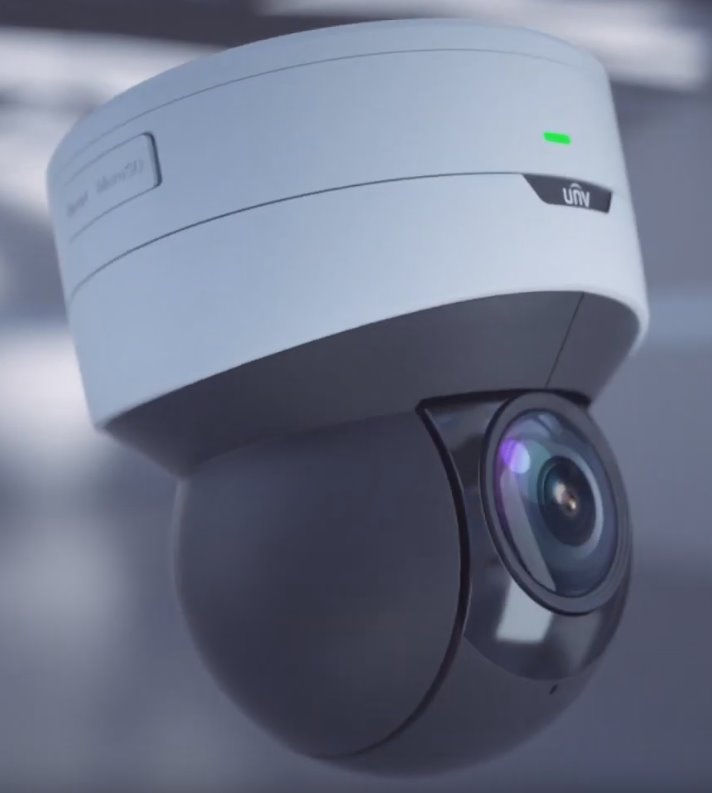

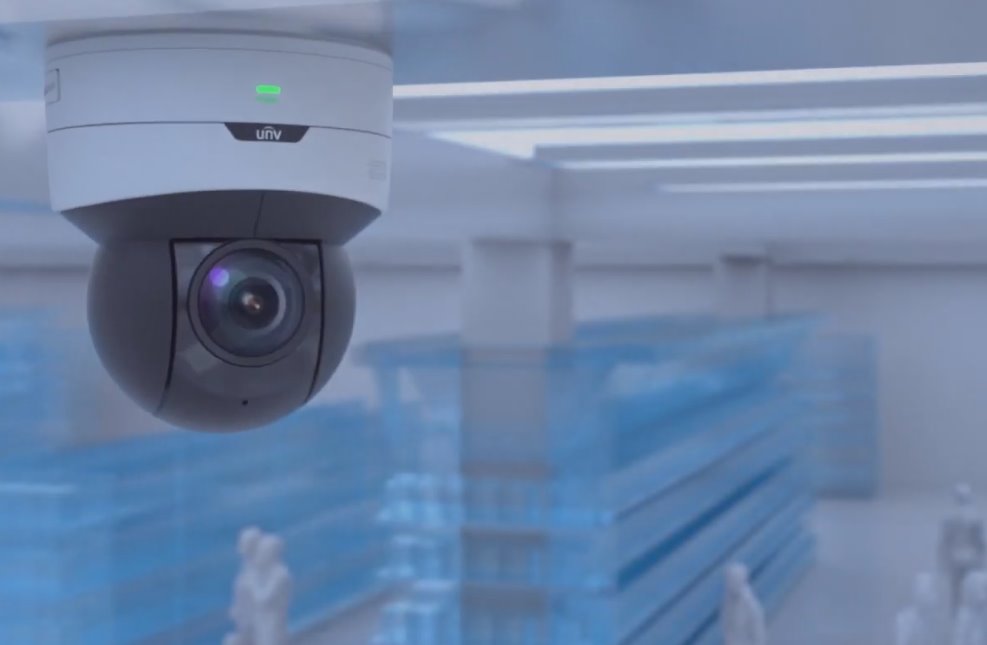

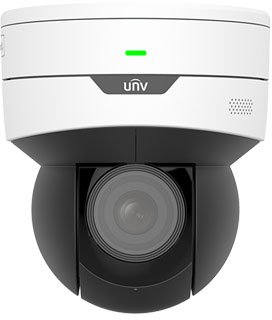

Indoor IP camera mini PTZ DOME, which features a 5MP sensor (2592 x 1944, 30 fps), a 2.7 - 13.5mm varifocal motorised lens and an IR night-time illumination up to 30 m and it is equipped with a 1/2.7" sensor. The camera has built-in microSD card slot up to 256 GB.

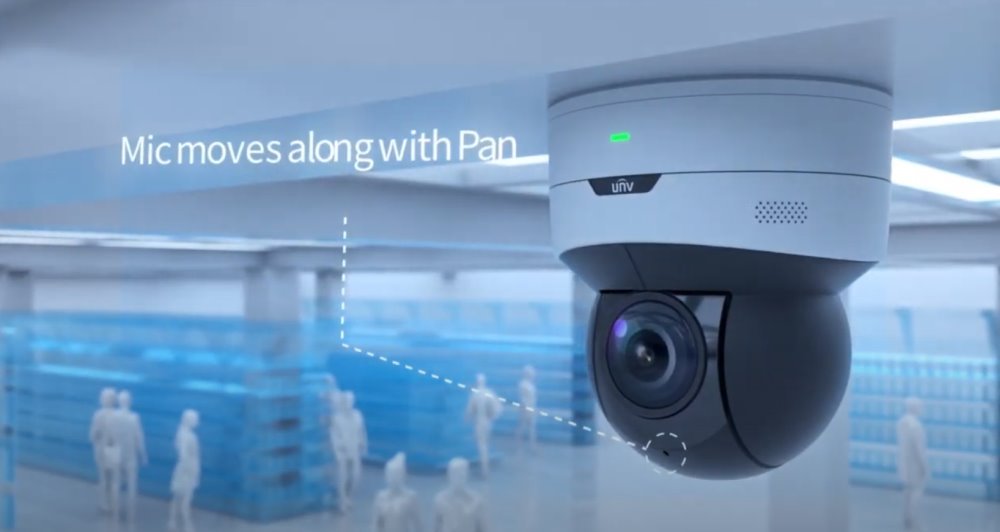

The camera can be remotely turned about 350° and tilted about 0° to 90°.
The camera can be powered via a 12V DC adapter or a standard POE 802.3af from either a switch or an injector. The maximum power consumption of the camera is only 16 W!
All Uniview cameras support image encoding using the H.265 codec (as well as H.264 and MJPEG) and Ultra 265 - a modified standard derived from H.265, which enhances its original properties. Of course there is WDR and many smart features like motion detection, face detection, intrusion detection, human counting, and more.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
