UNV IP fisheye camera - IPC815SB-ADF14K-I0-BLACK, 5MP, 1.4mm, Audio, Alarm, Prime, Black
UNV IP fisheye camera - IPC815SB-ADF14K-I0-BLACK, 5MP, 1.4mm, Audio, Alarm, Prime, Black
×
0/0
2+1 zdarma
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10980152 | |
| Part No. | IPC815SB-ADF14K-I0-BLACK | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
Černá
IPC815SB-ADF14K-I0-BLACK
Price after login
TR-CM24-IN
Price after login
In Stock
TR-JB03-H-IN-BLACK
Price after login
In Stock
M9905
1.43 EUR excl. VAT
1.73 EUR incl. VAT
In Stock
SDCS2/256GB
20.82 EUR excl. VAT
25.22 EUR incl. VAT
To order within 48h
SDCE/256GB
25.44 EUR excl. VAT
30.81 EUR incl. VAT
In Stock
SDCS2/128GB
12.02 EUR excl. VAT
14.57 EUR incl. VAT
In Stock
SDCE/128GB
19.82 EUR excl. VAT
24.01 EUR incl. VAT
In Stock
SDCS2/64GB
7.96 EUR excl. VAT
9.66 EUR incl. VAT
In Stock
SDCE/64GB
14.21 EUR excl. VAT
17.22 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.72 EUR excl. VAT
9.37 EUR incl. VAT
To order within 48h
DS-2FP2020
Price after login
In Stock
SDCS2/32GB
6.53 EUR excl. VAT
7.93 EUR incl. VAT
In Stock
SDCE/32GB
11.50 EUR excl. VAT
13.94 EUR incl. VAT
In Stock
MAXPI15
11.70 EUR excl. VAT
14.24 EUR incl. VAT
In Stock
MAXPI15S
8.88 EUR excl. VAT
10.83 EUR incl. VAT
Expected 12.2.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
1,4 (fixed)
Illumination:
IR
Illumination range [m]:
10
Viewing Angle [°]:
360
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Image sensor ["]:
1/2.8
Resolution:
5MP
Max. resolution [pixels]:
2592 x 1944
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output, Microphone
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
8,5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP66
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
360
Width [mm]:
125
Height [mm]:
44
Depth [mm]:
125
Color:
Black
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Prime
Technology and conveniences:
Face detection
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

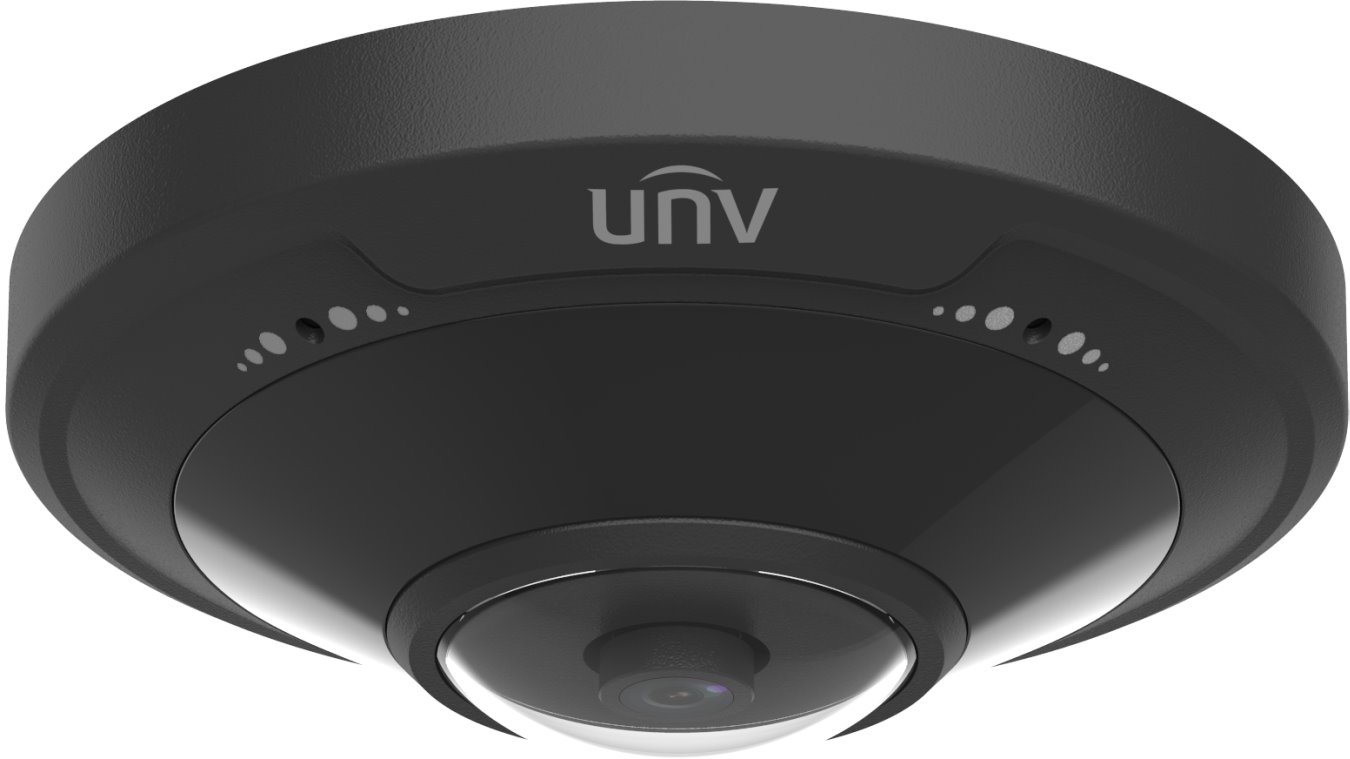

Panoramic IP camera in the FISH EYE design with a black chassis, which has a 5MP lens (2592 × 1944, 30 fps) with a 1.4 mm focal length b> and IR illuminator for night vision at a distance up to 10 m is equipped with a 1/2.8" sensor. The equipment also includes a slot for a microSD card of up to 256 GB, audio (in, out, 2× microphone ) and an alarm. Unlike most others from the manufacturer's portfolio, the camera supports image coding only using the Ultra 265/H264 codec. Of course, the 120dB WDR function, IP66 degree of protection and IK10 anti-vandal protection.
The camera can be powered via a 12V DC adapter or a regular POE 802.3af, either from a switch or an injector. The maximum consumption of the camera is 8.5 W.
Made by Uniview
The manufacturer Uniview is a dynamically developing company both on the domestic (Asian) and European markets, and within a few years of its existence it has reached the top ranks in sales volume and has become known for its products, for which it emphasizes the quality of processing while maintaining a favorable price. Even the basic series products have many advanced functions.
