UNV IP dome kamera - IPC3534LB-ADZK-H, 4MP, 2.8-12mm, easy
UNV IP dome kamera - IPC3534LB-ADZK-H, 4MP, 2.8-12mm, easy
×
0/0
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10980601 | |
| Part No. | IPC3534LB-ADZK-H | |
| Warranty | 36 months | |
You have a choice of 3 variantscompare all
4MP, 2.8-12mm
IPC3534LB-ADZK-H
Price after login
TR-A01-IN
Price after login
In Stock
TR-WM03-B-IN
Price after login
In Stock
TR-JB07/WM03-F-IN
Price after login
In Stock
TR-CM24-IN
Price after login
In Stock
SDCS2/256GB
20.82 EUR excl. VAT
25.22 EUR incl. VAT
To order within 48h
SDCE/256GB
25.44 EUR excl. VAT
30.81 EUR incl. VAT
In Stock
M9905
1.43 EUR excl. VAT
1.73 EUR incl. VAT
In Stock
SDCE/128GB
19.82 EUR excl. VAT
24.01 EUR incl. VAT
In Stock
SDCS2/128GB
12.02 EUR excl. VAT
14.57 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.72 EUR excl. VAT
9.37 EUR incl. VAT
To order within 48h
SDCS2/64GB
7.96 EUR excl. VAT
9.66 EUR incl. VAT
In Stock
SDCE/64GB
14.21 EUR excl. VAT
17.22 EUR incl. VAT
In Stock
SDCS2/32GB
6.53 EUR excl. VAT
7.93 EUR incl. VAT
In Stock
SDCE/32GB
11.50 EUR excl. VAT
13.94 EUR incl. VAT
In Stock
MAXPI15
11.70 EUR excl. VAT
14.24 EUR incl. VAT
In Stock
MAXPI15S
8.88 EUR excl. VAT
10.83 EUR incl. VAT
Expected 12.2.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Varifocal - motorized
Lens [mm]:
2,8 to 12 (adjustable)
Illumination:
IR
Illumination range [m]:
40
Viewing Angle [°]:
35 up to 86
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,003
Image sensor ["]:
1/3
Resolution:
4MP
Max. resolution [pixels]:
2688 x 1520
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
8
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
660
Width [mm]:
128
Height [mm]:
100
Depth [mm]:
128
Color:
White
Compression standard
Bit rate:
128Kbps ~ 6Mbps
Number of streams:
2
Video compression:
MJPEG, H.264, H.265
General
Camera class:
Easy
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

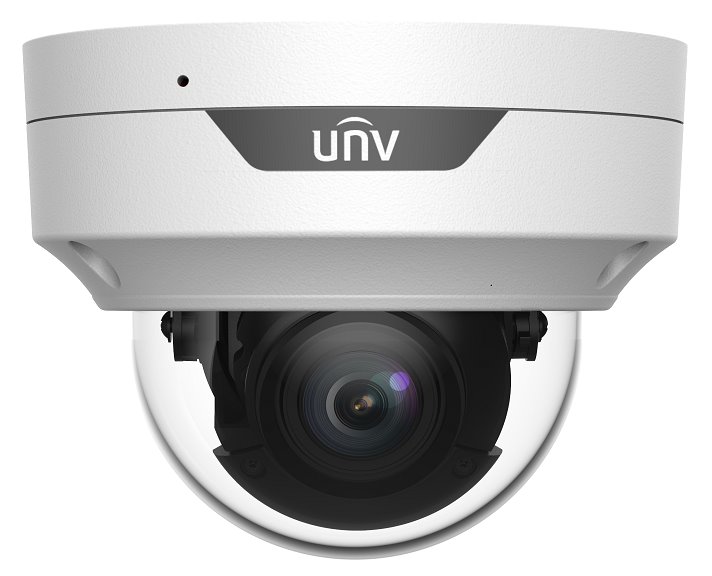

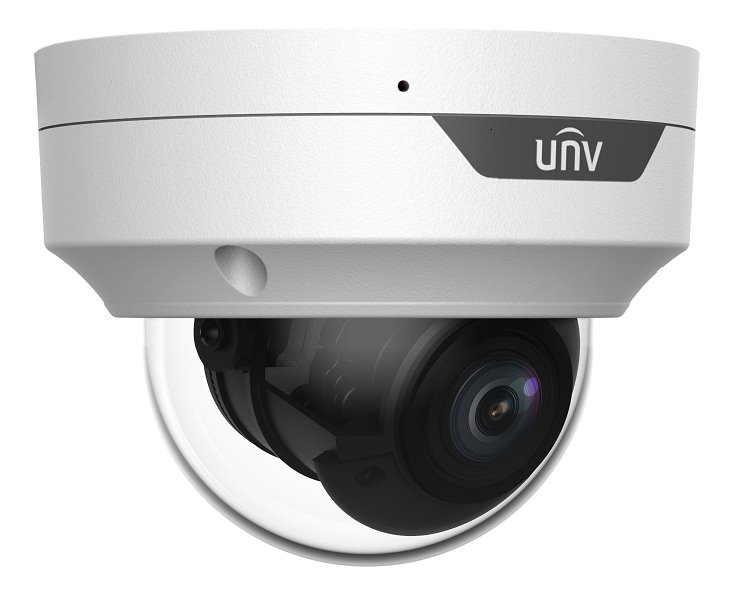

IP camera in Dome design, equipped with a 4MP sensor (2688 x 1520, 30 fps), varifocal lens with a focal length of 2.8-12mm, viewing angle of 35°-86°, IR illumination up to 40m, 120dB true WDR against direct light, microphone, microSD card slot up to 256GB, 1/3" sensor, and IP67 certification against water. The camera can be powered via a 12V DC adapter or conventional POE 802.3af from either a switch or injector. The maximum power consumption of the camera is 8W.
Key Features
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and within a few years of its existence, it has risen to the top in sales volume and has become known for its products that emphasize quality workmanship while maintaining a reasonable price. Even the products of the basic range have many advanced features.
