UNV IP dome camera - IPC324LR3-VSPF28-D, 4MP, 2.8mm, 30m IR, easy
We are sorry, this product is no longer in our offer.
UNV IP dome camera - IPC324LR3-VSPF28-D, 4MP, 2.8mm, 30m IR, easy
×
0/0
Recommended
TR-JB07/WM03-A-IN
Price after login
In Stock
TR-WM03-B-IN
Price after login
In Stock
TR-JB03-G-IN
Price after login
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Camera
WDR:
Digital
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
30
Viewing Angle [°]:
104
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,03
Image sensor ["]:
1/3
Resolution:
4MP
Max. resolution [pixels]:
2592 x 1520
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
4
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Operating temperature [°C]:
-30 up to 60
Weight [g]:
450
Width [mm]:
109
Height [mm]:
81
Depth [mm]:
109
Color:
White
Compression standard
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Easy
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

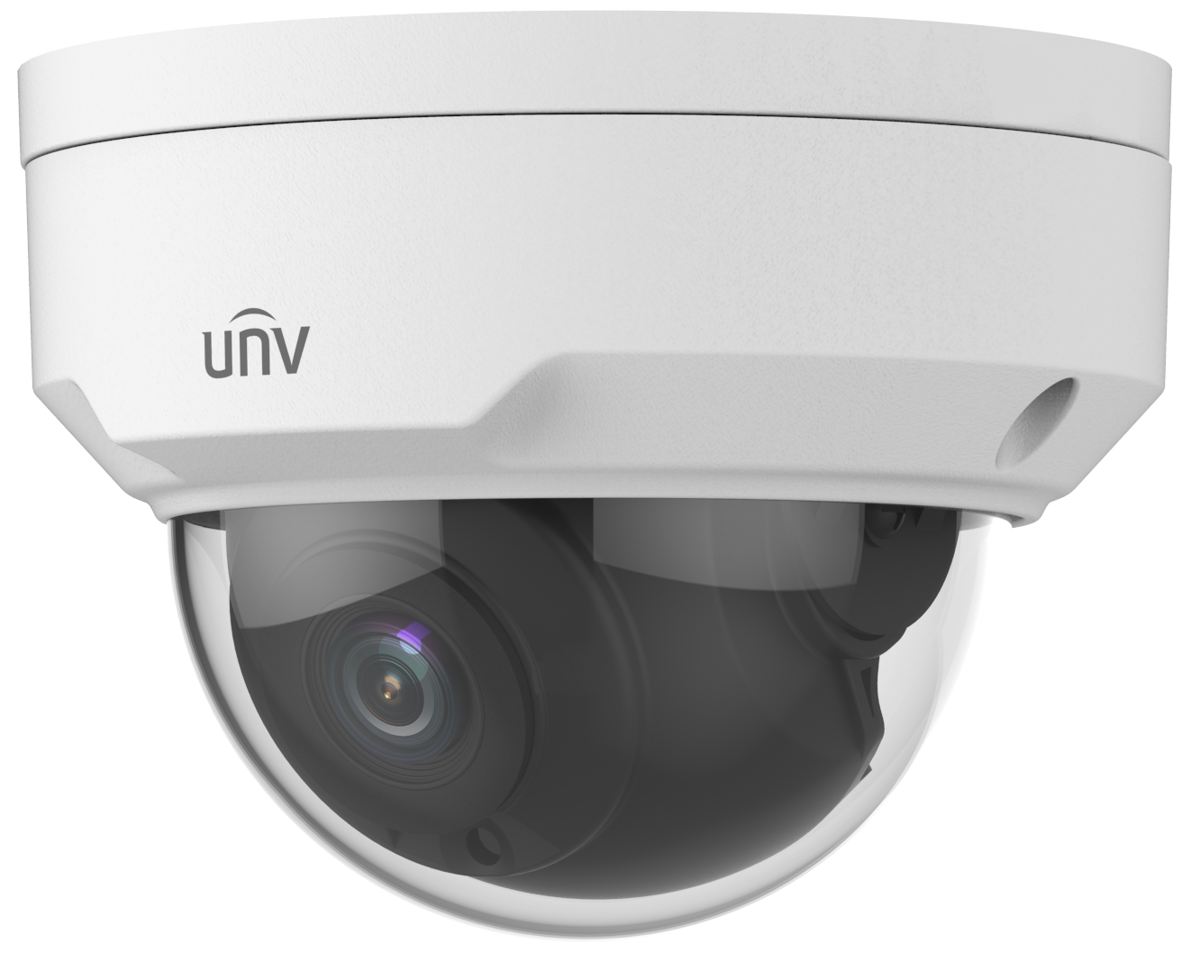

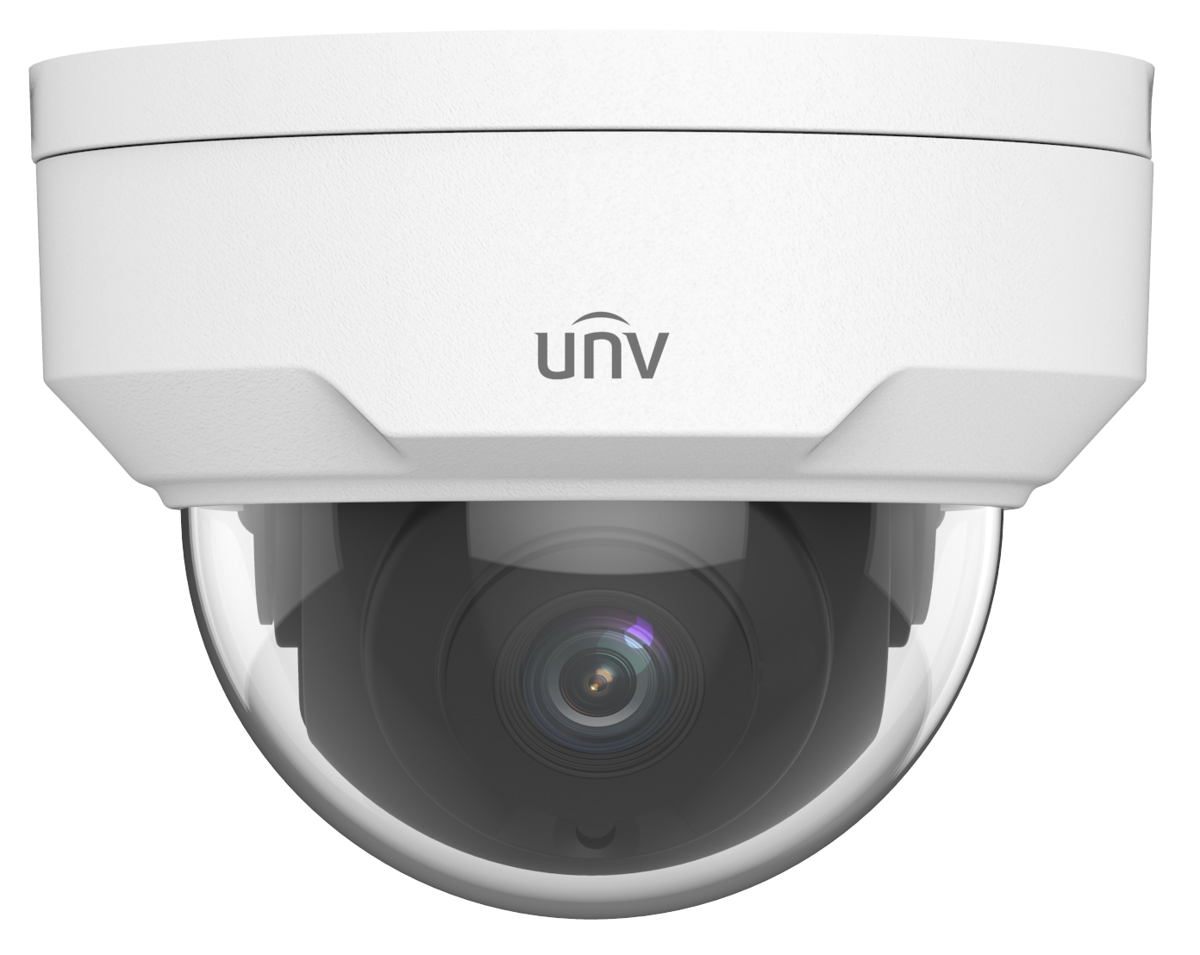

IP camera DOME, which features a 4MP sensor (2592 x 1520, 30 fps), a 2.8 mm lens and an IR night-time illumination up to 30 m and it is equipped with a 1/3 " sensor. The camera is equipped with 2-axis camera turning.
The camera can be powered via a 12V DC adapter or a standard POE 802.3af from either a switch or an injector. The maximum power consumption of the camera is only 4 W!
All Uniview cameras support image encoding using the H.265 codec (as well as H.264 and MJPEG) and Ultra 265 - a modified standard derived from H.265, which enhances its original properties. Easy Series cameras have dynamic WDR and smart zone detection and intrusion detection features.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
