UNV IP dome eyeball camera - IPC3618SB-ADF28KM-I0, 8MP, 2.8mm, 30m IR, Prime
UNV IP dome eyeball camera - IPC3618SB-ADF28KM-I0, 8MP, 2.8mm, 30m IR, Prime
×
0/0
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10902712 | |
| Part No. | IPC3618SB-ADF28KM-I0 | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
2.8mm
IPC3618SB-ADF28KM-I0
Price after login
TR-JB03-G-IN
Price after login
Not in stock
TR-JB07/WM03-G-IN
Price after login
In Stock
TR-WM03-D-IN
Price after login
In Stock
TR-CM24-IN
Price after login
In Stock
M9905
1.43 EUR excl. VAT
1.73 EUR incl. VAT
In Stock
SDCS2/256GB
20.82 EUR excl. VAT
25.22 EUR incl. VAT
To order within 48h
SDCE/256GB
25.44 EUR excl. VAT
30.81 EUR incl. VAT
In Stock
SDCS2/128GB
12.02 EUR excl. VAT
14.57 EUR incl. VAT
In Stock
SDCE/128GB
19.82 EUR excl. VAT
24.01 EUR incl. VAT
In Stock
SDCS2/64GB
7.96 EUR excl. VAT
9.66 EUR incl. VAT
In Stock
SDCE/64GB
14.21 EUR excl. VAT
17.22 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.72 EUR excl. VAT
9.37 EUR incl. VAT
To order within 48h
SDCS2/32GB
6.53 EUR excl. VAT
7.93 EUR incl. VAT
In Stock
SDCE/32GB
11.50 EUR excl. VAT
13.94 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
True WDR (120 dB) - LightHunter
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
30
Viewing Angle [°]:
112
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Image sensor ["]:
1/2.7
Resolution:
8MP
Max. resolution [pixels]:
3840 x 2160 (4K UHD)
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3at
Power type:
PoE, DC connector
Max. power consumption [W]:
5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 60
Weight [g]:
440
Width [mm]:
111
Height [mm]:
94
Depth [mm]:
111
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Prime
Technology and conveniences:
Face detection
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description
New PRIME series ensures ultra-high image quality in low illumination environment.

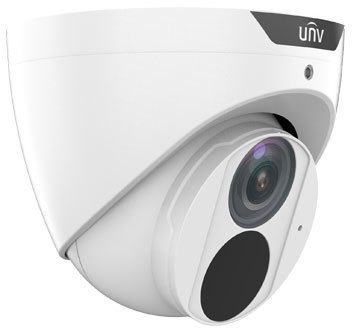

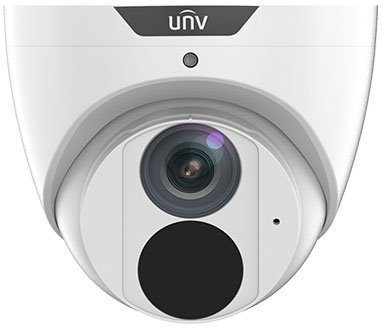

IP camera DOME EYEBALL (Turret), which features a 8MP sensor (3840 x 2160, 20 fps), a 2.8 mm fixed focal length and an IR night-time illumination up to 30 m and it is equipped with a 1/2.7" sensor. It also has 112° angle of view, microSD card slot up to 256 GB, 120dB true WDR against direct light, built-in microphone.
The camera can be powered via a 12V DC adapter or a standard POE 802.3af from either a switch or an injector. The maximum power consumption of the camera is only 5 W!
All Uniview cameras support image encoding using the H.265 codec (as well as H.264 and MJPEG) and Ultra 265 - a modified standard derived from H.265, which enhances its original properties.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
