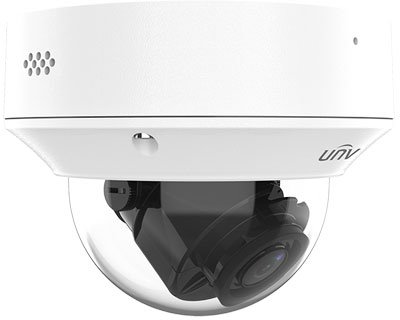

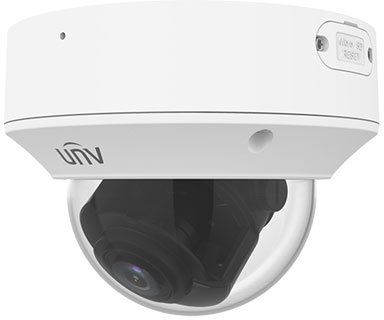

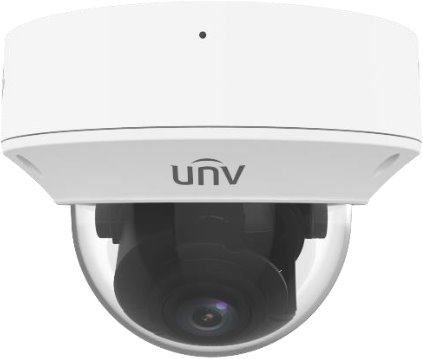

UNV IP dome camera - IPC3235SB-ADZK-I0, 5MP, 2.7-13.5mm, 40m IR, Prime
Your price excl. VAT
Manufacturer |
Uniview |
|
---|---|---|
Code | 10902704 | |
Part No. | IPC3235SB-ADZK-I0 | |
Warranty | 36 months |
TR-JB04-C-IN
Price after login
In Stock
TR-JB07/WM04-B-IN
Price after login
In Stock
TR-WM04-IN
Price after login
In Stock
M9905
1.41 EUR excl. VAT
1.71 EUR incl. VAT
In Stock
SDCS2/256GB
20.69 EUR excl. VAT
25.06 EUR incl. VAT
In Stock
SDCE/256GB
25.78 EUR excl. VAT
31.22 EUR incl. VAT
In Stock
SDCS2/128GB
12.04 EUR excl. VAT
14.59 EUR incl. VAT
In Stock
SDCE/128GB
18.80 EUR excl. VAT
22.77 EUR incl. VAT
In Stock
SDCS2/64GB
7.82 EUR excl. VAT
9.49 EUR incl. VAT
In Stock
SDCE/64GB
13.47 EUR excl. VAT
16.32 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.62 EUR excl. VAT
9.24 EUR incl. VAT
In Stock
DS-2FP2020
Price after login
In Stock
SDCS2/32GB
5.69 EUR excl. VAT
6.91 EUR incl. VAT
In Stock
SDCE/32GB
10.42 EUR excl. VAT
12.63 EUR incl. VAT
In Stock
MAXPI15
11.61 EUR excl. VAT
14.13 EUR incl. VAT
In Stock
MAXPI15S
8.81 EUR excl. VAT
10.74 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Camera
WDR:
True WDR (120 dB) - LightHunter
Lens type:
Varifocal - motorized
Lens [mm]:
2,7 up to 13,5 (adjustable)
Illumination:
IR
Illumination range [m]:
40
Viewing Angle [°]:
30 up to 106
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,002
Image sensor ["]:
1/2.7
Resolution:
5MP
Max. resolution [pixels]:
2880 x 1620
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output, Microphone
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
7
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
970
Width [mm]:
148
Height [mm]:
111
Depth [mm]:
148
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Prime
Technology and conveniences:
Face detection
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description
New PRIME series ensures ultra-high image quality in low illumination environment.
IP camera DOME, which features a 4MP sensor (2880 x 1620, 25 fps), a variofocal motorized lens with focal length of 2,7 - 13,5 mm, viewing angle 30° to 106°, IR night-time illumination up to 40 m, 120dB true WDR against direct light, audio and alarm input/output with microphone, microSD card slot up to 256 GB and 1/2.7" sensor. The camera is equipped with IK10 anti-vandal protection and water protection IP67.
The camera can be powered via a 12V DC adapter or a standard POE 802.3af from either a switch or an injector. The maximum power consumption of the camera is only 7 W!
All Uniview cameras support image encoding using the H.265 codec (as well as H.264 and MJPEG) and Ultra 265 - a modified standard derived from H.265, which enhances its original properties.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
