UNV IP bullet camera - IPC2124LE-ADF28KM-G1-BLACK, 4MP, 2.8mm, EasyStar, Black
We are sorry, this product is no longer in our offer.
TR-JB05-B-IN-BLACK
Price after login
In Stock
TR-JB05-B-IN
Price after login
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
50
Viewing Angle [°]:
113
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,003
Image sensor ["]:
1/2.7
Resolution:
4MP
Max. resolution [pixels]:
2688 x 1520
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
6
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 60
Weight [g]:
400
Width [mm]:
75
Height [mm]:
74
Depth [mm]:
191
Color:
Black
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
2
Video compression:
H.264, H.265, MJPEG
General
Camera class:
EasyStar
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

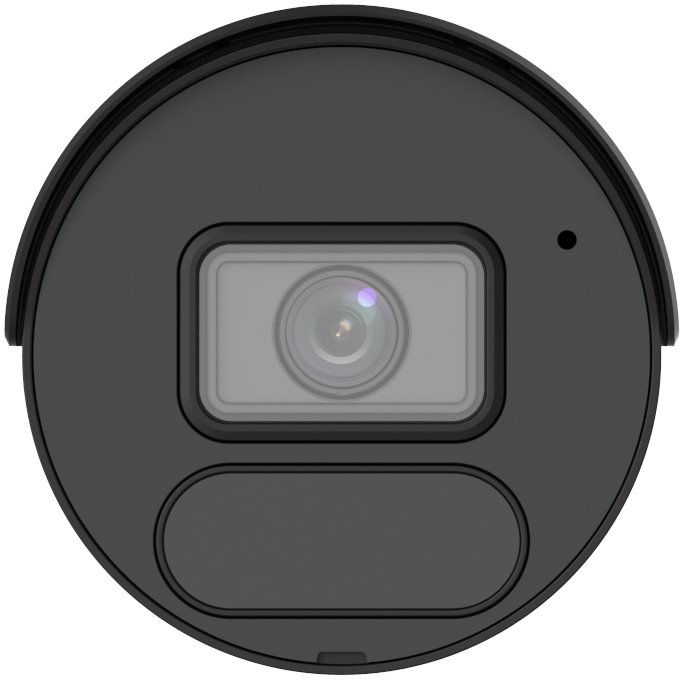

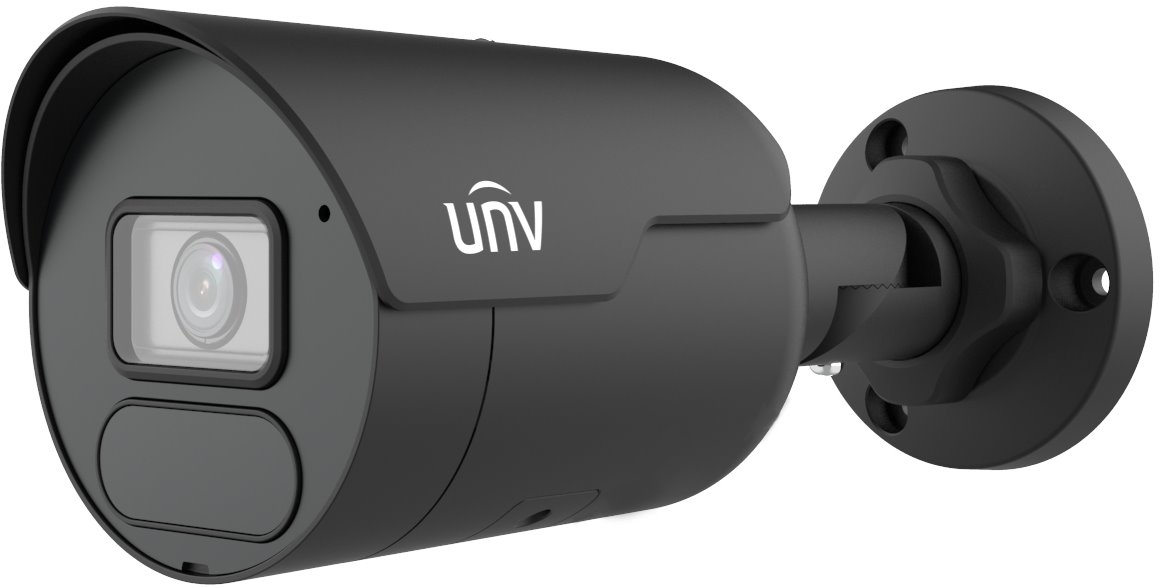

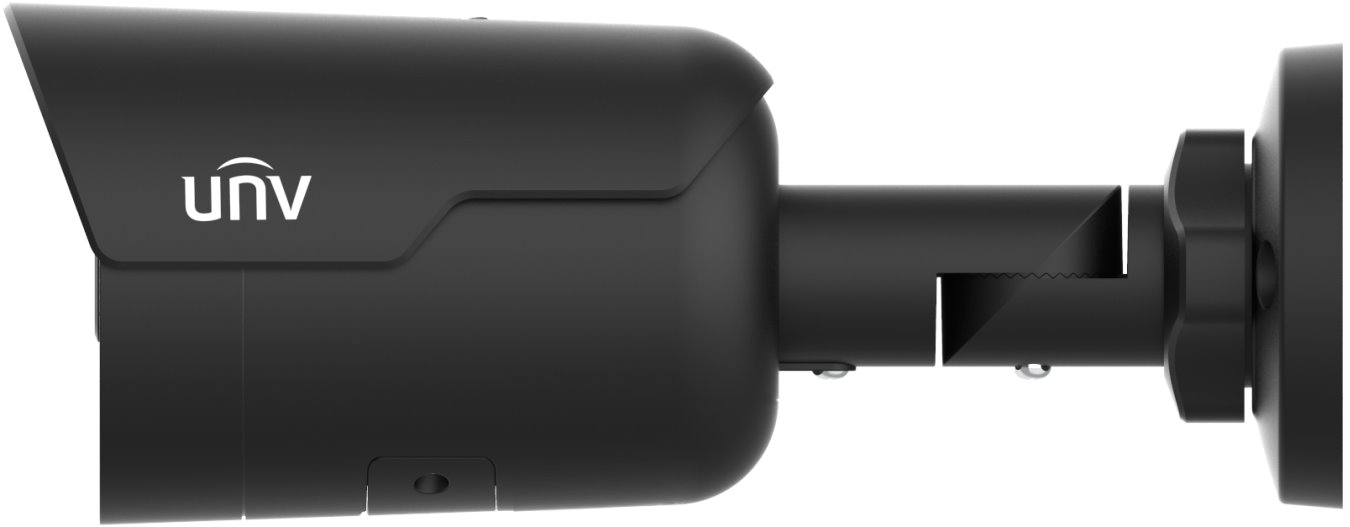

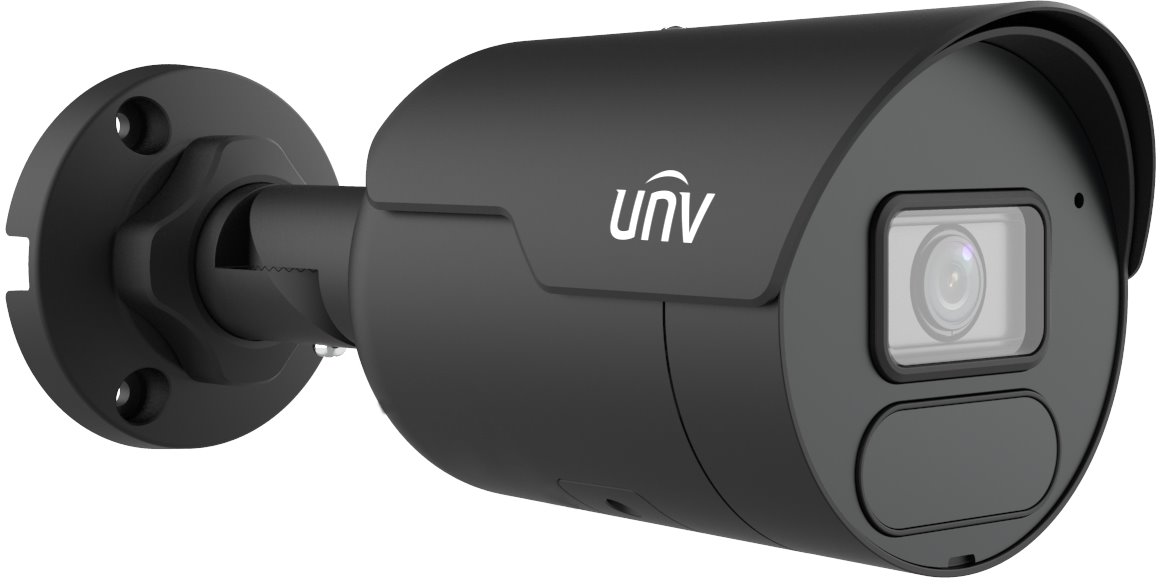

IP camera in the BULLET design, black color, which has a 4MP sensor (2688 × 1520, 30 fps), a lens with a focal length of 2.8 mm b>, viewing angle of 113°, IR illuminator for night vision at a distance of up to 50 m and a 1/2.7" sensor. The minimum scene illumination for a color image is only 0.003 Lux.
The camera can be powered via a 12V DC adapter or a regular POE 802.3af, either from a switch or an injector. The maximum consumption of the camera is only 6 W!
All Uniview cameras support image encoding using the H.265 codec (as well as H.264 and MJPEG) and Ultra 265 - a modified standard derived from H.265 which further improves its original properties. Of course, the WDR function and many smart functions such as motion detection, face detection, zone intrusion detection, people counting and more.
Made by Uniview
The manufacturer Uniview is a dynamically developing company both on the domestic (Asian) and European markets, and within a few years of its existence it has reached the top ranks in sales volume and has become known for its products, for which it emphasizes the quality of processing while maintaining a favorable price. Even the basic series products have many advanced functions.
