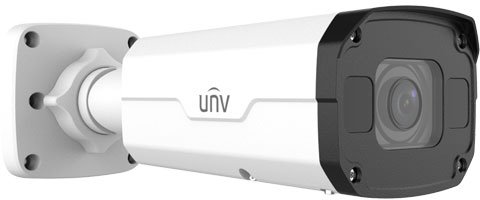

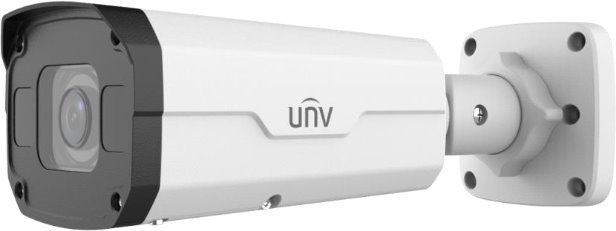

UNV IP bullet camera - IPC2328SB-DZK-I0, 8MP, 2.8-12mm, 50m IR, Prime
Your price excl. VAT
Manufacturer |
Uniview |
|
---|---|---|
Code | 10902696 | |
Part No. | IPC2328SB-DZK-I0 | |
Warranty | 36 months |

TR-JB07-D-IN
Price after login
Not in stock

TR-JB06-A-IN
Price after login
In Stock

TR-UP06-B-IN
Price after login
In Stock

M9905
1.43 EUR excl. VAT
1.73 EUR incl. VAT
In Stock

SDCS2/256GB
22.12 EUR excl. VAT
26.79 EUR incl. VAT
To order within 48h

SDCE/256GB
25.27 EUR excl. VAT
30.60 EUR incl. VAT
In Stock

SDCS2/128GB
15.19 EUR excl. VAT
18.40 EUR incl. VAT
In Stock

SDCE/128GB
19.25 EUR excl. VAT
23.32 EUR incl. VAT
In Stock

SDCS2/64GB
8.21 EUR excl. VAT
9.96 EUR incl. VAT
In Stock

SDCE/64GB
13.79 EUR excl. VAT
16.71 EUR incl. VAT
To order within 7d

SDCS2/64GBSP
8.45 EUR excl. VAT
10.25 EUR incl. VAT
To order within 48h

DS-2FP2020
Price after login
In Stock

SDCS2/32GB
5.70 EUR excl. VAT
6.92 EUR incl. VAT
In Stock

SDCE/32GB
11.12 EUR excl. VAT
13.48 EUR incl. VAT
In Stock

PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock

PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
True WDR (120 dB) - LightHunter
Lens type:
Varifocal - motorized
Lens [mm]:
2,8 to 12 (adjustable)
Illumination:
IR
Illumination range [m]:
50
Viewing Angle [°]:
29 up to 107
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,003
Image sensor ["]:
1/2.8
Resolution:
8MP
Max. resolution [pixels]:
3840 x 2160 (4K UHD)
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
10,5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Operating temperature [°C]:
-30 up to 60
Weight [g]:
920
Width [mm]:
86
Height [mm]:
72
Depth [mm]:
245
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Prime
Technology and conveniences:
Face detection
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description
New PRIME series ensures ultra-high image quality in low illumination environment.
IP camera BULLET, which features a 8MP sensor (3840 x 2160, 20 fps), a variofocal motorized lens with focal length of 2,8 - 12 mm, viewing angle 29° to 107°, IR night-time illumination up to 50 m, 120dB true WDR against direct light, audio and alarm input/output, microSD card slot up to 256 GB and 1/2.8" sensor. The camera is equipped with IK10 anti-vandal protection and water protection IP67.
The camera can be powered via a 12V DC adapter or a standard POE 802.3af from either a switch or an injector. The maximum power consumption of the camera is only 8 W!
All Uniview cameras support image encoding using the H.265 codec (as well as H.264 and MJPEG) and Ultra 265 - a modified standard derived from H.265, which enhances its original properties.
The new Prime UNV series brings many improvements
However, the biggest change is the SW properties of the camera and therefore AI algorithms (artificial intelligence) for object recognition and identification and reduction of false alarms. The camera can reliably detect primarily people or vehicles or ignore both and other objects (changes in shadow, branch movements, falling leaves, flying insects, etc.).
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
