UNV IP bullet camera - IPC2325LB-ADZK-H , 5MP, 2.8-12mm, easy
UNV IP bullet camera - IPC2325LB-ADZK-H , 5MP, 2.8-12mm, easy
×
0/0
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10980599 | |
| Part No. | IPC2325LB-ADZK-H | |
| Warranty | 36 months | |
You have a choice of 3 variantscompare all
5MP, 2.8-12mm
IPC2325LB-ADZK-H
Price after login
TR-JB05-B-IN
Price after login
Expected 6.12.2024
TR-A01-IN
Price after login
In Stock
SDCS2/256GB
20.56 EUR excl. VAT
24.90 EUR incl. VAT
In Stock
SDCE/256GB
25.82 EUR excl. VAT
31.27 EUR incl. VAT
In Stock
M9905
1.42 EUR excl. VAT
1.72 EUR incl. VAT
In Stock
SDCE/128GB
19.53 EUR excl. VAT
23.66 EUR incl. VAT
In Stock
SDCS2/128GB
11.90 EUR excl. VAT
14.42 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.75 EUR excl. VAT
9.40 EUR incl. VAT
In Stock
SDCS2/64GB
7.83 EUR excl. VAT
9.50 EUR incl. VAT
In Stock
SDCE/64GB
12.89 EUR excl. VAT
15.62 EUR incl. VAT
In Stock
SDCS2/32GB
6.45 EUR excl. VAT
7.83 EUR incl. VAT
In Stock
SDCE/32GB
10.64 EUR excl. VAT
12.90 EUR incl. VAT
In Stock
MAXPI15
11.63 EUR excl. VAT
14.16 EUR incl. VAT
In Stock
MAXPI15S
8.82 EUR excl. VAT
10.76 EUR incl. VAT
Expected 9.1.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Varifocal - motorized
Lens [mm]:
2,8 to 12 (adjustable)
Illumination:
IR
Illumination range [m]:
50
Viewing Angle [°]:
33 up to 96
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,001
Image sensor ["]:
1/2.7
Resolution:
5MP
Max. resolution [pixels]:
2880 x 1620
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
9,6
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
510
Width [mm]:
73
Height [mm]:
73
Depth [mm]:
0
Color:
White
Compression standard
Bit rate:
128Kbps ~ 6Mbps
Number of streams:
2
Video compression:
MJPEG, H.264, H.265
General
Camera class:
Easy
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

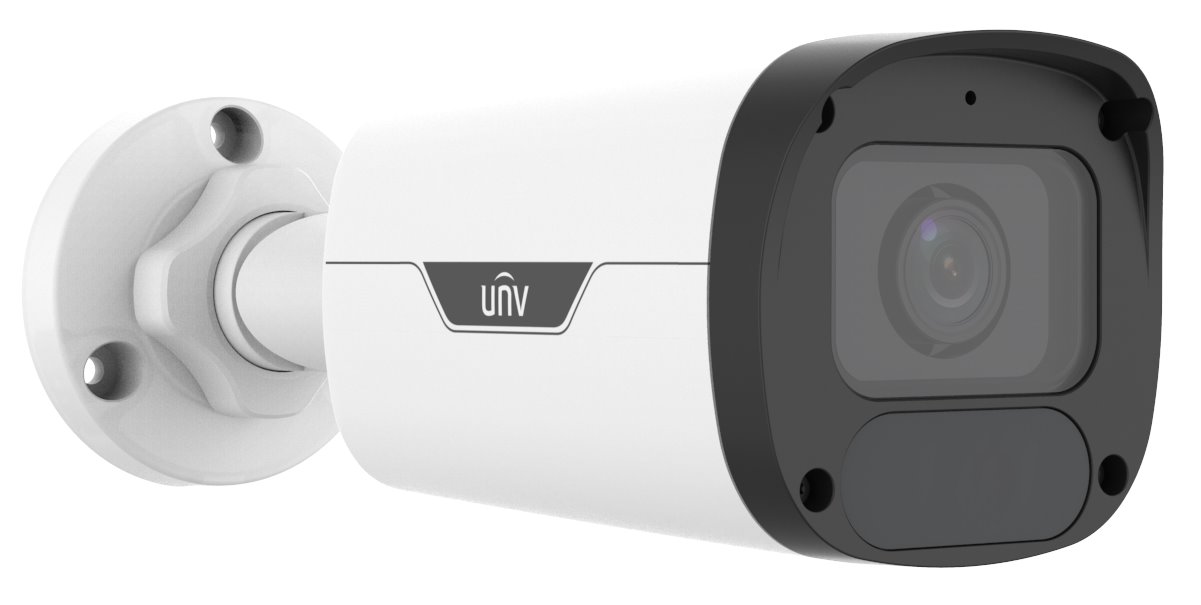

IP camera in Bullet design, equipped with a 5MP sensor (2880 x 1620, 30 fps), varifocal lens with a focal length of 2.8-12mm, viewing angle of 33°-96°, IR illumination up to 50m, 120dB true WDR against direct light, microphone, microSD card slot up to 256GB, 1/2.7" sensor, and IP67 certification against water. The camera can be powered via a 12V DC adapter or conventional POE 802.3af from either a switch or injector. The maximum power consumption of the camera is 9.6W.
Key Features
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and within a few years of its existence, it has risen to the top in sales volume and has become known for its products that emphasize quality workmanship while maintaining a reasonable price. Even the products of the basic range have many advanced features.
