UNV IP bullet camera - IPC2322SB-HDZK-PI-I0, 2MP, 2.8-12mm motor, P-iris. 60FPS
UNV IP bullet camera - IPC2322SB-HDZK-PI-I0, 2MP, 2.8-12mm motor, P-iris. 60FPS
×
0/0
Special offer
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10980586 | |
| Part No. | IPC2322SB-HDZK-PI-I0 | |
| Warranty | 36 months | |
TR-JB07-D-IN
Price after login
Not in stock
TR-JB06-A-IN
Price after login
In Stock
TR-UP06-B-IN
Price after login
In Stock
SDCS2/256GB
22.58 EUR excl. VAT
27.35 EUR incl. VAT
In Stock
SDCE/256GB
27.79 EUR excl. VAT
33.65 EUR incl. VAT
In Stock
M9905
1.43 EUR excl. VAT
1.73 EUR incl. VAT
In Stock
SDCE/128GB
20.34 EUR excl. VAT
24.64 EUR incl. VAT
To order within 7d
SDCS2/128GB
13.81 EUR excl. VAT
16.73 EUR incl. VAT
In Stock
SDCS2/64GBSP
8.37 EUR excl. VAT
10.15 EUR incl. VAT
To order within 48h
SDCS2/64GB
8.53 EUR excl. VAT
10.35 EUR incl. VAT
In Stock
SDCE/64GB
14.21 EUR excl. VAT
17.22 EUR incl. VAT
To order within 7d
SDCS2/32GB
5.61 EUR excl. VAT
6.81 EUR incl. VAT
In Stock
SDCE/32GB
11.29 EUR excl. VAT
13.69 EUR incl. VAT
In Stock
DS-2FP2020
Price after login
In Stock
MAXPI15
12.29 EUR excl. VAT
14.96 EUR incl. VAT
In Stock
MAXPI15S
9.53 EUR excl. VAT
11.62 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.68 EUR excl. VAT
4.45 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
True WDR (120 dB) - LightHunter
Lens type:
Varifocal - motorized
Lens [mm]:
2,8 to 12 (adjustable)
Illumination:
IR
Illumination range [m]:
50
Viewing Angle [°]:
32 up to 100
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,001
Image sensor ["]:
1/2.8
Resolution:
2MP
Max. resolution [pixels]:
1920 x 1080 (Full HD)
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
8
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Operating temperature [°C]:
-30 up to 60
Weight [g]:
920
Width [mm]:
86
Height [mm]:
85
Depth [mm]:
245
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
MJPEG, H.264, H.265
General
Camera class:
Prime
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

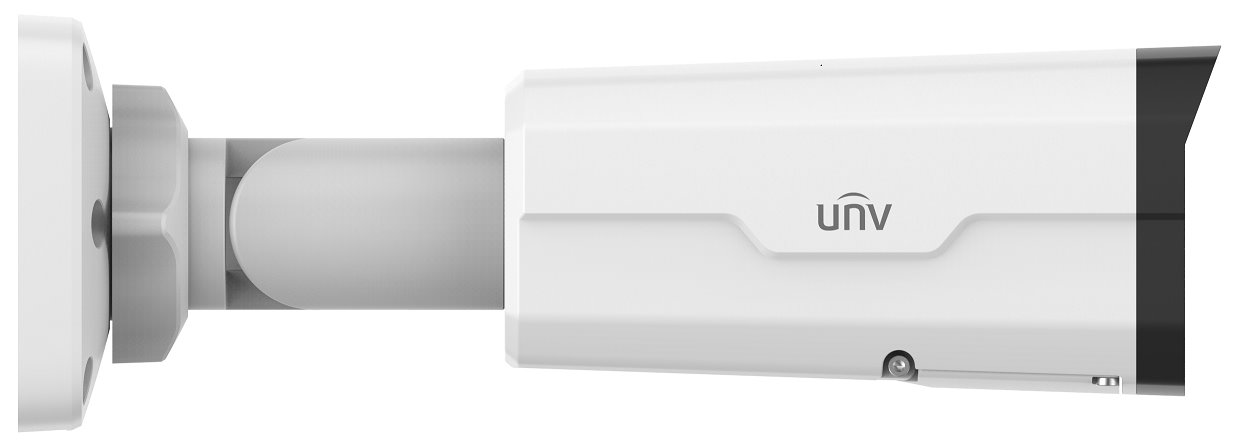

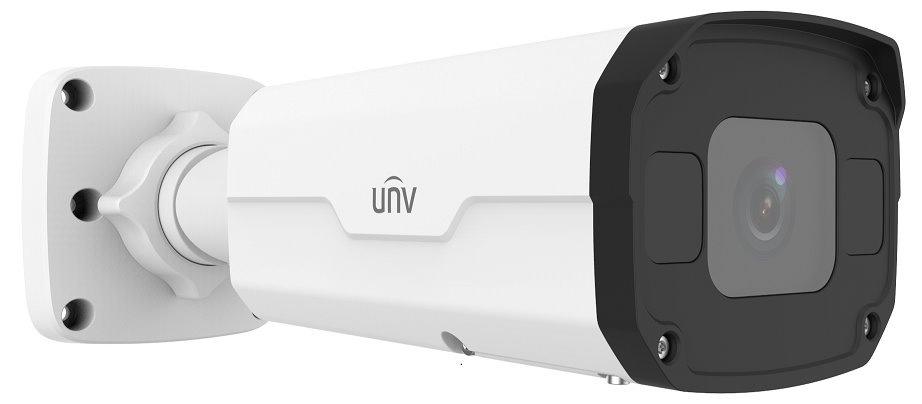

IP camera in Bullet design, which has a 2MP sensor (1920 x 1080, 60 fps), varifocal lens with a focal length of 2.8-12mm, viewing angle of 32°-100°, IR illumination up to 40m, 120dB true WDR against direct light, audio input/output, alarm input/output, microSD card slot up to 256GB, 1/2.8" sensor and IP67 certification against water and IK10 anti-vandal protection. The camera can be powered via a 12V DC adapter or conventional POE 802.3af from either a switch or injector. The maximum power consumption of the camera is 8W.
Key features:
Manufacturer Uniview:
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets and within a few years of its existence, it has risen to the top in sales volume and has become known for its products that emphasize quality workmanship while maintaining a reasonable price. Even the products of the basic range have many advanced features.
