UNV IP bullet camera - IPC2228SE-DF40K-WL-I0-BLACK, 8MP, 4mm, ColorHunter, Prime3, black
UNV IP bullet camera - IPC2228SE-DF40K-WL-I0-BLACK, 8MP, 4mm, ColorHunter, Prime3, black
×
0/0
2+1 zdarma
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10980606 | |
| Part No. | IPC2228SE-DF40K-WL-I0-BLACK | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
8MP, 4mm, černá
IPC2228SE-DF40K-WL-I0-BLACK
Price after login
TR-JB07-D-IN
Price after login
In Stock
TR-JB06-A-IN
Price after login
In Stock
TR-UP06-B-IN
Price after login
In Stock
TR-A01-IN
Price after login
In Stock
M9905
1.41 EUR excl. VAT
1.71 EUR incl. VAT
In Stock
SDCS2/256GB
20.75 EUR excl. VAT
25.13 EUR incl. VAT
In Stock
SDCE/256GB
25.75 EUR excl. VAT
31.18 EUR incl. VAT
In Stock
SDCS2/128GB
11.95 EUR excl. VAT
14.48 EUR incl. VAT
In Stock
SDCE/128GB
19.76 EUR excl. VAT
23.93 EUR incl. VAT
In Stock
SDCS2/64GB
7.89 EUR excl. VAT
9.57 EUR incl. VAT
In Stock
SDCE/64GB
13.80 EUR excl. VAT
16.72 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.73 EUR excl. VAT
9.38 EUR incl. VAT
In Stock
DS-2FP2020
Price after login
In Stock
SDCS2/32GB
6.51 EUR excl. VAT
7.90 EUR incl. VAT
In Stock
SDCE/32GB
10.61 EUR excl. VAT
12.86 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
4 (fixed)
Illumination:
White light
Illumination range [m]:
30
Viewing Angle [°]:
94
Day/night mode:
Color
Minimum illumination [Lux]:
0,0005
Image sensor ["]:
1/1.8
Resolution:
8MP
Max. resolution [pixels]:
3840 x 2160 (4K UHD)
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output, Microphone
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
11
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
860
Width [mm]:
86
Height [mm]:
85
Depth [mm]:
245
Color:
Black
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
MJPEG, H.264, H.265
General
Camera class:
Prime
Technology and conveniences:
ColorHunter
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

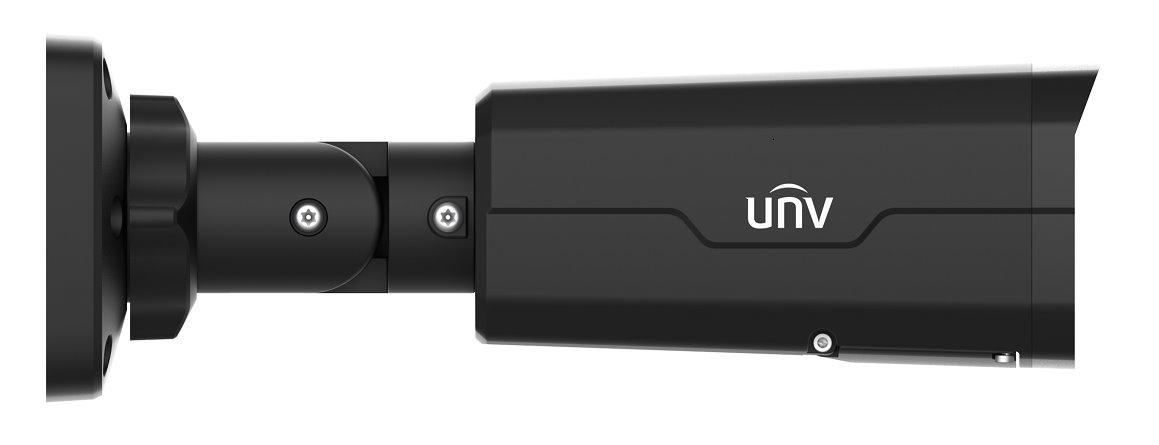

IP camera in Bullet design, equipped with an 8MP sensor (3840 x 2160, 30 fps), fixed lens with a focal length of 4mm, viewing angle of 94°, two white LEDs for illumination up to 30m, 120dB true WDR against direct light, microphone, audio input/output, alarm input/output, microSD card slot up to 256GB, 1/1.8" sensor, and IP67 water resistance certification with IK10 vandal-proof protection. The camera can be powered via a 12V DC adapter or conventional POE 802.3af from either a switch or injector. The maximum power consumption of the camera is 11W.
Key Features
ColorHunter Technology
The super large and high-quality lens with an F1.0 aperture can collect 4 times more light compared to a traditional F2.0 aperture. The camera delivers an exemplary image result during the day, including sharpness that is not common in CCTV + adds a colorful view in "night mode". To help the camera see in complete darkness, integrated warm LED light (visible to the eye) is used. The light can be completely turned off, and if there is an external light source nearby, the integrated LED is likely not needed at all.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and within a few years of its existence, it has risen to the top in sales volume and has become known for its products that emphasize quality workmanship while maintaining a reasonable price. Even the products of the basic range have many advanced features.
