UNV IP bullet camera - IPC2124LE-ADF28KM-G, 4MP, 2.8mm, EasyStar
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10902748 | |
| Part No. | IPC2124LE-ADF28KM-G | |
| Warranty | 36 months | |
You have a choice of 3 variantscompare all
2.8mm
IPC2124LE-ADF28KM-G
Price after login
TR-JB05-B-IN
Price after login
Expected 6.12.2024
M9905
1.42 EUR excl. VAT
1.72 EUR incl. VAT
In Stock
SDCS2/256GB
20.56 EUR excl. VAT
24.90 EUR incl. VAT
In Stock
SDCE/256GB
25.82 EUR excl. VAT
31.27 EUR incl. VAT
In Stock
SDCS2/128GB
11.90 EUR excl. VAT
14.42 EUR incl. VAT
In Stock
SDCE/128GB
19.53 EUR excl. VAT
23.66 EUR incl. VAT
In Stock
SDCS2/64GB
7.83 EUR excl. VAT
9.50 EUR incl. VAT
In Stock
SDCE/64GB
12.89 EUR excl. VAT
15.62 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.75 EUR excl. VAT
9.40 EUR incl. VAT
In Stock
SDCS2/32GB
6.45 EUR excl. VAT
7.83 EUR incl. VAT
In Stock
SDCE/32GB
10.64 EUR excl. VAT
12.90 EUR incl. VAT
In Stock
MAXPI15
11.63 EUR excl. VAT
14.16 EUR incl. VAT
In Stock
MAXPI15S
8.82 EUR excl. VAT
10.76 EUR incl. VAT
Expected 9.1.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
50
Viewing Angle [°]:
101
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,003
Image sensor ["]:
1/3
Resolution:
4MP
Max. resolution [pixels]:
2688 x 1520
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
6
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 60
Weight [g]:
450
Width [mm]:
73
Height [mm]:
71
Depth [mm]:
190
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
2
Video compression:
H.264, H.265, MJPEG
General
Camera class:
EasyStar
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Video
Product description

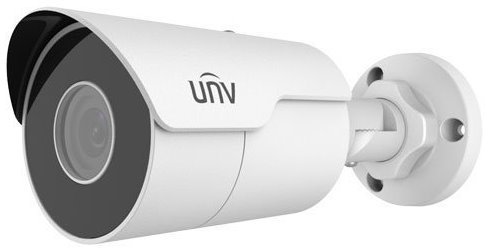

IP camera in the BULLET design, which has a 4MP sensor (2688 x 1520, 30 fps), a lens with a focal length of 2.8 mm, a viewing angle of 101°, an IR illuminator for night vision at a distance of up to 50 m and a 1/3" sensor. The minimum scene illumination for a color image is only 0.003 Lux .
The camera can be powered via a 12V DC adapter or a regular POE 802.3af, either from a switch or an injector. The maximum consumption of the camera is only 6 W!
All Uniview cameras support image encoding using the codec H.265 (as well as H.264 and MJPEG) and Ultra 265 - a modified standard derived from H.265 that further improves its original features. Of course, there is a WDR function and many smart functions such as motion detection, face detection, zone intrusion detection, people counting and more.
Made by Uniview
The manufacturer Uniview is a dynamically developing company both on the domestic (Asian) and European markets, and within a few years of its existence it has reached the top ranks in terms of sales volume and has become known for its products, for which it emphasizes quality processing while maintaining a favorable price. Even the basic series products have many advanced functions.
