Ubiquiti Wave Pico, UISP Wave Pico
Ubiquiti Wave Pico, UISP Wave Pico
×
0/0
Your price excl. VAT
163.10 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 163.17 EUR |
| Your price incl. VAT (21%) | 197.44 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904175 | |
| Part No. | Wave-Pico | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Transmission speed - 5GHz [Mb/s]:
800
Transmission speed - 60GHz [Mb/s]:
2000
Security:
WPA2 AES
Elevation beam width (-6dB) [°]:
6
Azimuth beam width (-6dB) [°]:
6
Antenna gain [dBi]:
9, 25,7
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Other features:
Bluetooth
Power
Power over Ethernet:
Yes, 48V DC
Power type:
PoE
Max. power consumption [W]:
10
Physical characteristics
Designed for mast diameter [mm]:
20 up to 53
Protection class:
IPX6
Operating temperature [°C]:
-40 up to 60
Weight [g]:
410
Width [mm]:
152
Height [mm]:
56
Depth [mm]:
152
Hardware
RAM [MB]:
512
Software
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description

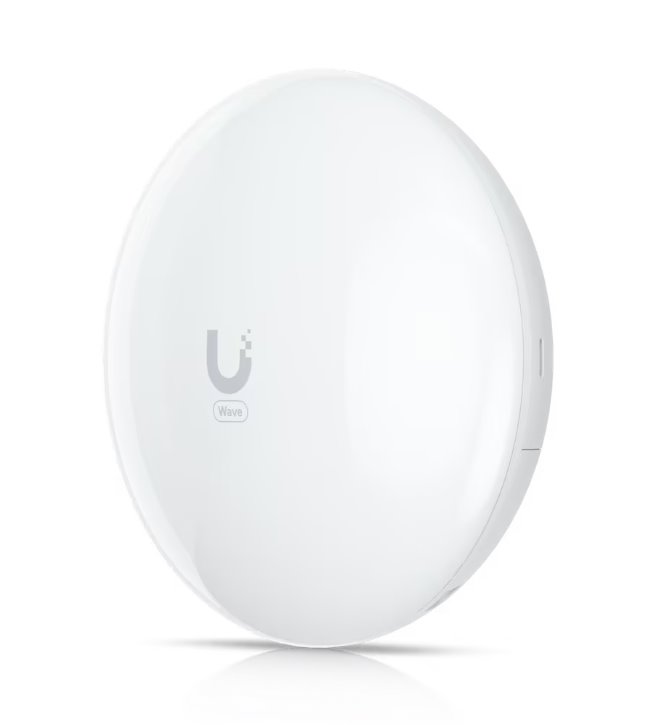

The Ubiquiti Wave-Pico is a 60 GHz point-to-multipoint (PtMP) client device with built-in 5GHz Wifi 6 (802.11ax) backup radio. Max link range when used with Wave-AP is 1.3 km or 0.9 km when used with Wave-AP-micro. The throughput of the device is 2 Gbps(1 Gbps duplex) and 5 GHz backup can reach up to 800 Mbps. Unit is euiped with 1 Gbps LAN port with PoE 48V DC support. To simplify setup, the device is equipped with integrated Bluetooth to connect to the UISP mobile app or there is an option to setup via web interface.
Key features:
* Distance depends on total radiated power, which may vary from country to country
Before putting the link into operation, it must first be registered on the 60ghz.ctu.cz portal in accordance with VO-R/12.
Package contents:
Download
Datasheet Quick GuideGPSR
