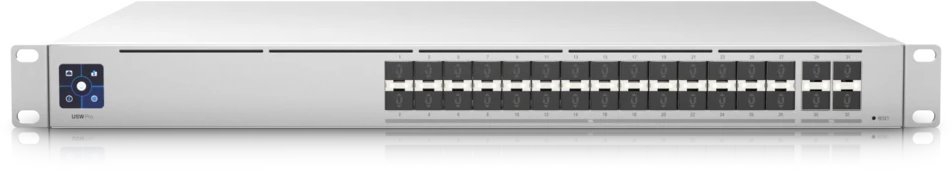

Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro

Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro
Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro
×
0/0
Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro
Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro
Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro
Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro
Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro
Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro
Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro
Ubiquiti USW-Pro-Aggregation - UniFi Switch Aggregation Pro

Your price excl. VAT
774.08 EUR
Recycling fee 0.07 EUR
Your price with RF 774.15 EUR
Your price incl. VAT (21%) 936.72 EUR
blank
Ordered, unknown date
PlzeňOrdered, unknown date
Availability
at our branches
Manufacturer

Ubiquiti

Code10901894
Part No.USW-Pro-Aggregation
Warranty 24 months
  • Related products12
Ubiquiti UACC-CWDM-4 - 4channel CWDM Mux/Demux modul
UACC-CWDM-4

176.67 EUR excl. VAT
213.77 EUR incl. VAT
In Stock
Ubiquiti UACC-CWDM-8 - 8-channel CWDM Mux/Demux modul
UACC-CWDM-8

309.15 EUR excl. VAT
374.07 EUR incl. VAT
In Stock
Ubiquiti UniFi Smart Power Cable, USP-Cable
USP-Cable

28.47 EUR excl. VAT
34.45 EUR incl. VAT
In Stock
Ubiquiti UniFi SmartPower Redundant Power System, USP-RPS
USP-RPS

375.43 EUR excl. VAT
454.37 EUR incl. VAT
Expected 10.5.2025
Ubiquiti UACC-RJ45-Cover for RJ45 port
UACC-RJ45-Cover

18.78 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
NaN excl. VAT
NaN incl. VAT
Ubiquiti UACC-Rack-Ear-1U. rack ears
UACC-Rack-Ear-1U

8.18 EUR excl. VAT
9.90 EUR incl. VAT
In Stock
Gembird Power cord 230V, 1,8m, angled
PC-186A-VDE

4.47 EUR excl. VAT
5.41 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDM
ML-S+85D-03

8.53 EUR excl. VAT
10.41 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM
ML-S+31D-10

13.80 EUR excl. VAT
16.78 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM
ML-S+2733-10

18.74 EUR excl. VAT
22.76 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDM
ML-S+3327-10

18.74 EUR excl. VAT
22.76 EUR incl. VAT
In Stock
show moreshow less 7
Parameters
Download
GPSR

Product description

USW-Aggregation-Pro is a fully manageable L3 switch in a 19" rackmount chassis with 4× SFP28 (supporting 1 G / 10 G / 25 Gbps) and 28× SFP+ (1 G / 10 Gbps support) ports: With a 1.3" touch screen, you can instantly see the most important information such as error conditions, warnings, port statistics, power consumption of connected devices, network load and more. USW-Aggregation-Pro is managed using the UniFi Controller or a mobile application, which allows you to easily create, scale and monitor your corporate network.

Key Features

  • (28) 1G / 10Gbps (SFP+)
  • (4) 1G / 10G / 25Gbps (SFP28) - speed on all 4 ports is limited by the slowest of them, or mix. 1G and 10G modules
  • 760 Gbps switching capacity
  • Touch screen
  • Backup power via SmartPower RPS connector
  • Supported in UniFi Controller from version 6.1.25

Management via UniFi Controller

USW-Aggregation-Pro does not have web management but is managed centrally by UniFi Controller with support for the UniFi mobile application and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.

USW-Aggregation-Pro

Redundant power

This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower unit in the event of a failure of the primary power supply at the switch.

USW-Aggregation-Pro

Package Contents

  • Devices
  • Power cord
  • 19" rack mounts

Download

Datasheet

GPSR

Contact:
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel
support@ui.com

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Connectors and Interfaces

Optical interfaces: (28) 1G/10Gbps + (4) 1G/10G/25Gbps

Power

Power type: Mains power (230V), UniFi SmartPower RPS
Max. power consumption [W]: 100
Power via connector/terminal: 230V AC

Physical characteristics

Design: Rackmount
Chassis design: Metal
Operating temperature [°C]: -5 up to 40
Width [mm]: 442
Height [mm]: 44
Depth [mm]: 325

General

Switchning capacity [Gbps]: 760
Jumbo frame [Bytes]: 9000
Packet forwarding rate [Mpps]: 565,4

Software

Features: VLAN, QoS, DHCP snooping
Default IP address: Dynamic from DHCP
