Ubiquiti USW-EnterpriseXG-24 - UniFi Switch Enterprise XG 24
Ubiquiti USW-EnterpriseXG-24 - UniFi Switch Enterprise XG 24
×
0/0
Your price excl. VAT
1 070.88 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 1 070.95 EUR |
| Your price incl. VAT (21%) | 1 295.85 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10903369 | |
| Part No. | USW-EnterpriseXG-24 | |
| Warranty | 24 months | |
USP-Cable
27.36 EUR excl. VAT
33.11 EUR incl. VAT
In Stock
USP-RPS
360.47 EUR excl. VAT
436.27 EUR incl. VAT
In Stock
UACC-RJ45-Cover
18.05 EUR excl. VAT
21.84 EUR incl. VAT
In Stock
ML-S+85D-03
8.09 EUR excl. VAT
9.87 EUR incl. VAT
In Stock
ML-S+31D-10
13.11 EUR excl. VAT
15.95 EUR incl. VAT
In Stock
ML-S+2733-10
18.56 EUR excl. VAT
22.54 EUR incl. VAT
In Stock
ML-S+3327-10
18.56 EUR excl. VAT
22.54 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(2) 100M/1G/2.5G/5G/10Gbps
Optical interfaces:
(2) 1/10/25Gbps
Other features:
Touchscreen
Power
Power type:
Mains power (230V), UniFi SmartPower RPS
Redundant power supply:
Yes
Max. power consumption [W]:
100
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
442
Height [mm]:
44
Depth [mm]:
285
General
Switchning capacity [Gbps]:
580
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
431
Software
Management:
UniFi Network
Features:
VLAN, DHCP snooping
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description

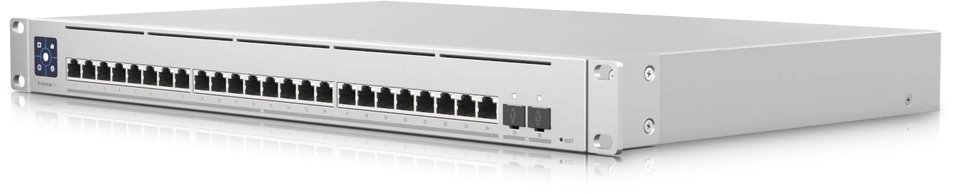

USW-EnterpriseXG-24 is a fully managed, Gigabit L3 switch with 24× 100M/1G/2.5G/ 5G/10G LAN ports and two SFP28 ports with baud rate 1/10/25 Gbps. In addition to the standard equipment, the switch also has a 1.3" touchscreen for providing system information, temperature, port statistics and much more.
Key Features
Management via UniFi Controller
The USW-Pro-24 has no web management but is managed centrally by the UniFi Controller with support for the UniFi mobile application and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.
Redundant power
This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower unit in the event of a failure of the primary power supply at the switch.
Package Contents
Download
DatasheetTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
