Ubiquiti UniFi switch USW-Pro-Max-16
Ubiquiti UniFi switch USW-Pro-Max-16
×
0/0
Your price excl. VAT
249.64 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 249.71 EUR |
| Your price incl. VAT (21%) | 302.15 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904240 | |
| Part No. | USW-Pro-Max-16 | |
| Warranty | 24 months | |
UACC-Pro-Max-16-RM
44.39 EUR excl. VAT
53.80 EUR incl. VAT
Not in stock
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(12) 10/100/1000Mbps + (4) 10/100/2500Mbps
Optical interfaces:
(2) 1G/10Gbps
Other features:
Touchscreen
Power
Power type:
USB-C
Max. power consumption [W]:
25
Power via connector/terminal:
5V DC
Physical characteristics
Design:
On the wall, Desktop, Rackmount
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
325
Height [mm]:
44
Depth [mm]:
160
General
Switchning capacity [Gbps]:
84
Packet forwarding rate [Mpps]:
62
Software
Management:
UniFi Network
Features:
VLAN, DHCP snooping, L3
Default IP address:
Dynamic from DHCP
Product description
Ubiquiti Pro Max 16 is a new L3 switch that offers 4x 2.5 Gbps and 12x 1 Gbps ports. For optical interface connection, there are 2 SFP+ ports achieving speeds up to 10 Gb/s. The switch is powered via a USB-C 5V DC 25W.

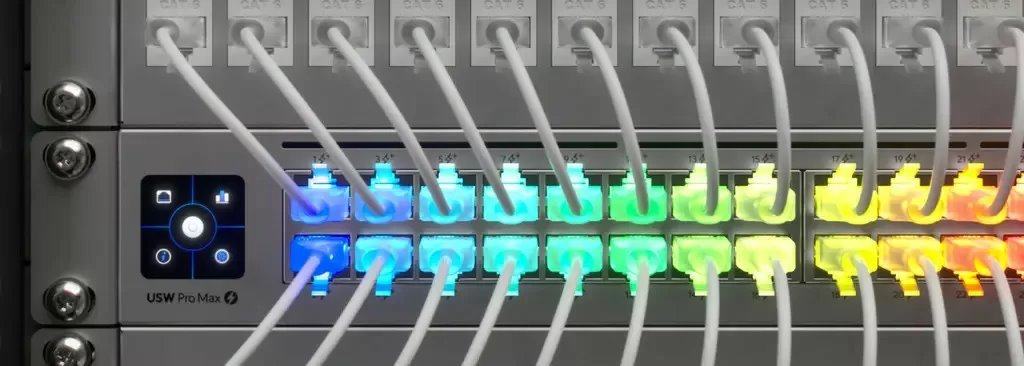

Etherlighting Technology
The switch supports Etherlighting technology, allowing color indication of port location, link speed, defined device types, PoE status or individual VLANs.
Managed via UniFi Controller
The switch does not have web management but is centrally managed via UniFi Controller with support for the mobile app UniFi and offers an extensive set of advanced switching protocols and L2 features, including operational mode (switching, mirroring, or aggregation) per port. UniFi Network Controller and mobile app enable administrators to configure and monitor virtually all switch features in a graphical user interface from anywhere.
Package Contents
Download
Datasheet Quick GuideGPSR
