Ubiquiti UniFi Switch USW-Pro-HD-24-PoE
Your price excl. VAT
887.03 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 887.10 EUR |
| Your price incl. VAT (21%) | 1 073.39 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904424 | |
| Part No. | USW-Pro-HD-24-PoE | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
24x POE
USW-Pro-HD-24-PoE
887.03 EUR
UACC-Rack-Ear-1U
8.19 EUR excl. VAT
9.91 EUR incl. VAT
Expected 6.2.2025
USP-RPS
377.01 EUR excl. VAT
456.28 EUR incl. VAT
Ordered, unknown date
ML-S+85D-03
8.51 EUR excl. VAT
10.38 EUR incl. VAT
Expected 24.1.2025
ML-S+31D-10
13.76 EUR excl. VAT
16.73 EUR incl. VAT
Expected 24.1.2025
ML-S+2733-10
18.70 EUR excl. VAT
22.71 EUR incl. VAT
In Stock
ML-S+3327-10
18.70 EUR excl. VAT
22.71 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(2) 10/5/2.5/1Gbps + (22) 2.5/1Gbps, 100/10Mbps
Optical interfaces:
(4) 1G/10Gbps
Other features:
Touchscreen
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, 802.3bt
Redundant power supply:
Yes
PoE Out ports:
24
PoE budget [W]:
600
Max. power consumption [W]:
56
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
442
Height [mm]:
44
Depth [mm]:
400
General
Switchning capacity [Gbps]:
230
Packet forwarding rate [Mpps]:
171
Software
Management:
UniFi Network
Features:
L3
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

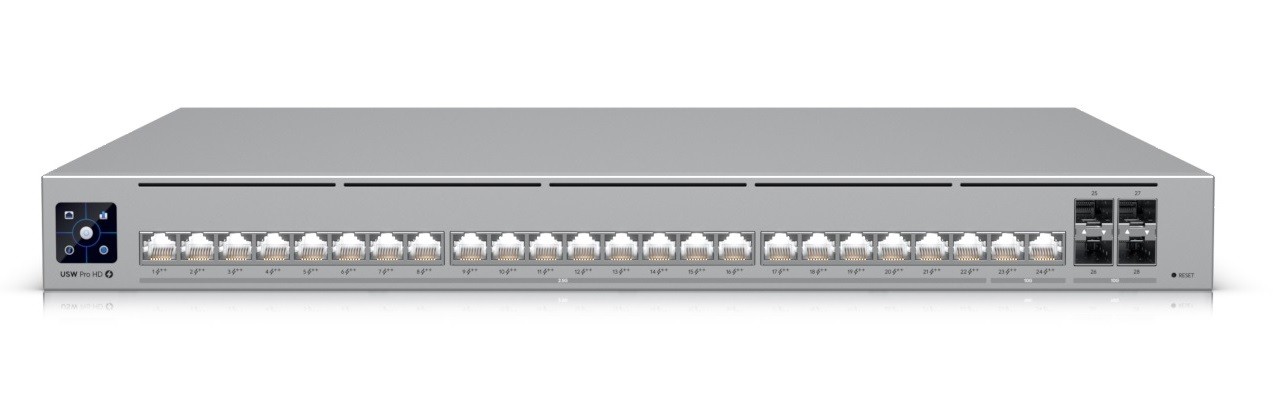

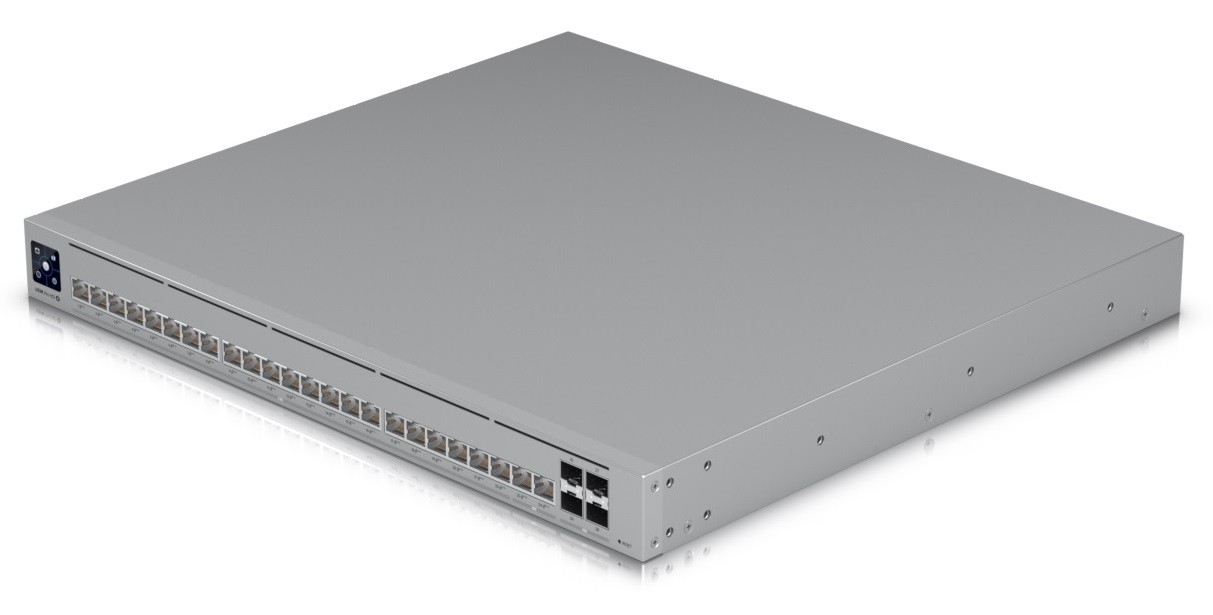

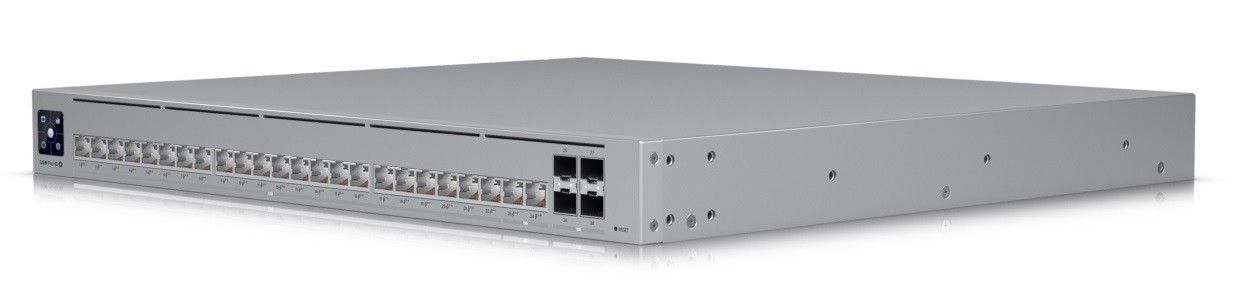

Ubiquiti USW-Pro-HD-24-PoE is a 24-port PoE switch with L3 functionality. The switch features 22x 2.5Gb and 2x 10Gb ports, all supporting PoE 802.3af/at/bt up to 60W per port. The total PoE budget of the switch is 600W. Additionally, the switch includes 4x SFP+ ports and supports redundant power via the Ubiquiti UniFi SmartPower Redundant Power System (USP-RPS).
Key Features
Package Contents
Download
Datasheet QIGGPSR
