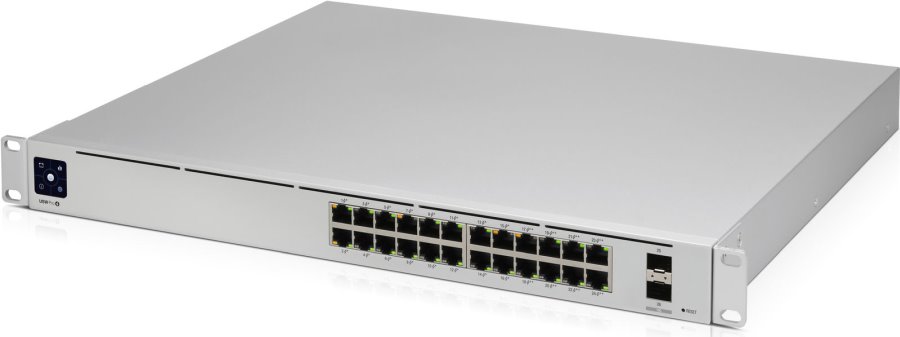

Ubiquiti UniFi Switch USW-Pro-24-POE Gen2
Your price excl. VAT
610.14 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 610.21 EUR |
| Your price incl. VAT (21%) | 738.35 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901811 | |
| Part No. | USW-Pro-24-POE | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
24 portů
USW-Pro-24-POE
610.14 EUR
USP-Cable
28.55 EUR excl. VAT
34.55 EUR incl. VAT
In Stock
USP-RPS
376.34 EUR excl. VAT
455.47 EUR incl. VAT
In Stock
UACC-RJ45-Cover
18.81 EUR excl. VAT
22.76 EUR incl. VAT
In Stock
ML-S+85D-03
8.44 EUR excl. VAT
10.30 EUR incl. VAT
In Stock
ML-S+31D-10
13.65 EUR excl. VAT
16.60 EUR incl. VAT
In Stock
ML-S+2733-10
18.54 EUR excl. VAT
22.52 EUR incl. VAT
In Stock
ML-S+3327-10
18.54 EUR excl. VAT
22.52 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 10/100/1000Mbps
Optical interfaces:
(2) 1G/10Gbps
Other features:
Touchscreen
Power
Power type:
Mains power (230V), UniFi SmartPower RPS
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, 802.3bt
Redundant power supply:
Yes
PoE Out ports:
24
PoE budget [W]:
400
Max. power consumption [W]:
50
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
442
Height [mm]:
44
Depth [mm]:
285
General
Switchning capacity [Gbps]:
88
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
65,48
Software
Management:
UniFi Network
Features:
VLAN, DHCP snooping
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description
The second generation UniFi switches bring many changes and improvements, the switches have been redesigned from the ground up. Compared to the first generation, there is a significant improvement in airflow, which is used for cooling, making it up to 4x quieter* than the first generation.
* at an ambient temperature of 25° and a 25% POE load, the switch is 3.6 times quieter
* at an ambient temperature of 25° and a 50% POE load, the switch is 4.2 times quieter
* at an ambient temperature of 25° and a 100% POE load, the switch is 1.9 times quieter
Equipment
USW-Pro-24-POE Gen2 has a total of 24 POE-Out ports. 1-16 ports support 802.3af/at standards, 17-24 ports support 802.3bt (60W) standards. The total POE budget is 400W (total power of 450W, 50W switch power consumption).

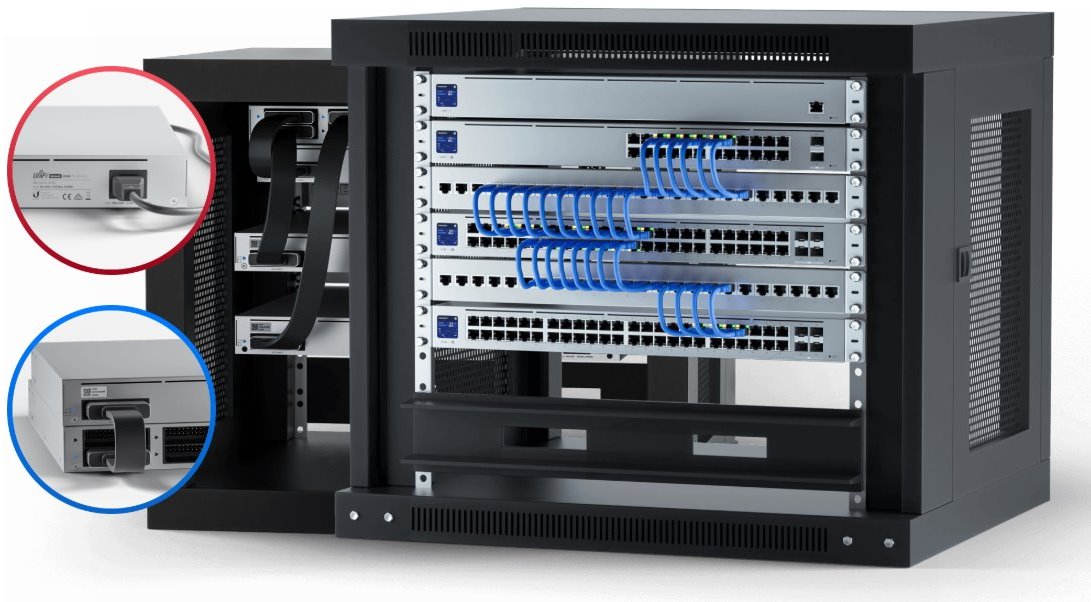

The pair of 10G SFP + ports with 1G SFP backward compatibility will serve as the Uplink. In case of power failure, the switch can be connected to the UniFi SmartPower backup system, which can handle up to 6 supported devices.
LCD display
The LCD touchscreen instantly shows the most important informations like error conditions, warnings, port statistics, connected device consumption, network usage, and more.
L3 features
In the future firmware version, L3 switch functionality is planned.
Package contains
