Ubiquiti UniFi Switch US-8-60W-5, 5-Pack
Ubiquiti UniFi Switch US-8-60W-5, 5-Pack
×
0/0
Your price excl. VAT
493.63 EUR
| Recycling fee | 0.34 EUR |
|---|---|
| Your price with RF | 493.97 EUR |
| Your price incl. VAT (21%) | 597.70 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
4x 5pack
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10220182 | |
| Part No. | US-8-60W-5 | |
| Warranty | 24 months | |
FS-A1-250-B
17.16 EUR excl. VAT
20.76 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af
PoE Out ports:
4
PoE budget [W]:
60
Max. power consumption [W]:
12
Power via connector/terminal:
44 .. 57V DC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 45
Width [mm]:
148
Height [mm]:
31
Depth [mm]:
100
General
Switchning capacity [Gbps]:
16
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
11,9
Software
Management:
UniFi Network
Features:
VLAN, DHCP snooping
Default IP address:
Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

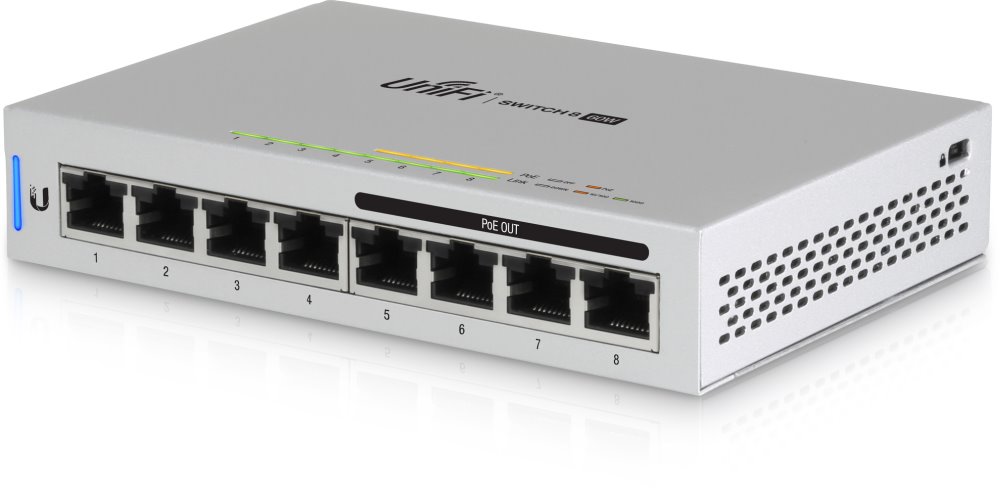

US-8-60W is Gbit PoE desktop switch from Ubiquiti with max PoE output 60W. Managed switch with 8 Gbit metalic ports and total throughput 16 Gbps.

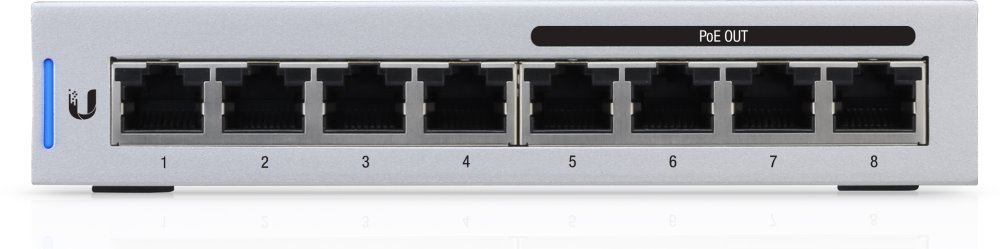

4x PoE Out
The biggest advantage of this switch is Gbit PoE on ports 5-8 which supports active PoE 802.3af with maximal budget 15,4W/port. Automatic detection guarantee full function without initial configuration.
Management over UniFi Controller
The main difference between UniFi switches and Edge Switches is web management - Edge Switche's WebGUI management is substituted by UniFi Controller in UniFi Switches.
