Ubiquiti Unifi AP AC In Wall Pro, UAP-AC-IW-PRO
We are sorry, this product is no longer in our offer.
Ubiquiti Unifi AP AC In Wall Pro, UAP-AC-IW-PRO
×
0/0
Sale
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
1300
Transmission speed - 2.4GHz [Mb/s]:
450
Tx power 2.4GHz [dBm]:
20
Tx power 5GHz [dBm]:
20
Security:
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
2.4GHz MIMO:
3 x 3
5GHz MIMO:
3 x 3
Type of antenna:
Built-in
Internal antennas:
2
Roaming:
Yes
Antenna gain [dBi]:
5
Connectors and Interfaces
LAN speed:
(3) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3at, 44 .. 57V DC
PoE type:
PoE-Out + PoE-In
Max. power consumption [W]:
7
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 50
Weight [g]:
210
Width [mm]:
87
Height [mm]:
140
Depth [mm]:
26
Software
Operating mode:
Access Point
IPv6 support:
Transparent (bridge mode)
Default IP address:
Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

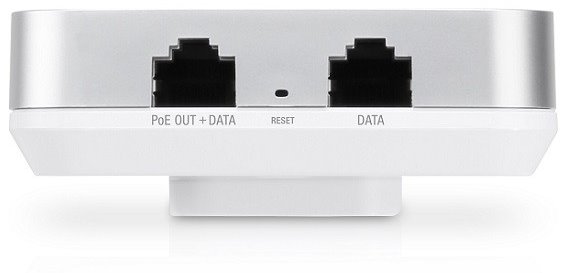

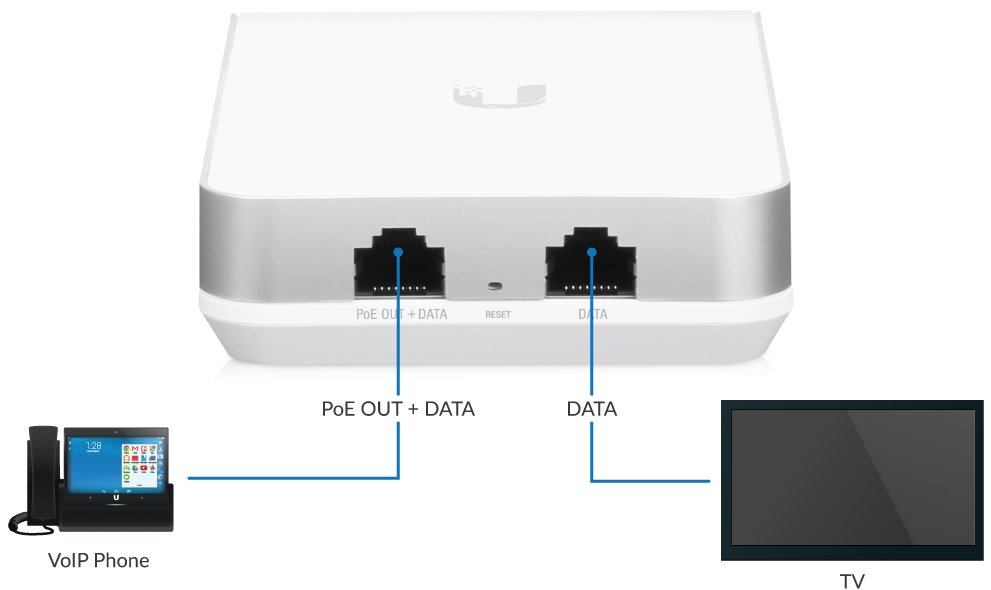

The Ubiquiti UniFi AC In-Wall-PRO is a very small and discreet 802.11ac UAP concealed installation device. It is a 3x3 MIMO 2.4GHz and 3x3 MIMO 5GHz Acess Point with up to 450 + 1300 Mbps and 802.11a/b/g/n/ac standards. UAP-AC-IW-PRO is designed for offices and hotels. The antenna system includes 1 built-in antenna with 5dBi gain for the 2.4GHz band and 6.5dBi for the 5GHz band. It also fully supports roaming when passing associated clients between APs. Furthermore, as far as the interface is concerned, the device contains 3x 10/100/1000Mbps LAN with PoE IN on the back port and PoE Out on the on of the bottom ports with PoE standard 802.3af.
Simple installation

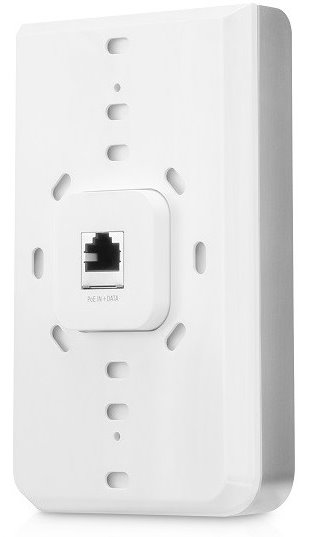

A great advantage is the very fast and easy installation with 2 screws above each other with a spacing of 83mm, primarily intended for American plastic boxes of dimensions (W x H x D): 57.2 x 95.3 x 85.7 mm.
Unit central management
UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on UBNT websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.
General advantages of UniFi products
Package contains
Download
Datasheet Quick GuideGPSR
