Ubiquiti UISP-Switch-Plus
Ubiquiti UISP-Switch-Plus
×
0/0
Your price excl. VAT
359.47 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 359.54 EUR |
| Your price incl. VAT (21%) | 435.04 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904171 | |
| Part No. | UISP-S-Plus | |
| Warranty | 24 months | |
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(4) 10/100/1000/2500Mbps
Optical interfaces:
(4) 1G/10Gbps
Other features:
Bluetooth
Power
Power type:
Power TransPort, DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
Passive 27V
Redundant power supply:
Yes
PoE budget [W]:
160
Max. power consumption [W]:
25
Power via connector/terminal:
Power TransPort DC 27V, 24 .. 28V DC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Plastic
Buttons:
Reset
Operating temperature [°C]:
-10 up to 50
Width [mm]:
210
Height [mm]:
44
Depth [mm]:
170
General
Switchning capacity [Gbps]:
100
Packet forwarding rate [Mpps]:
74
Software
Management:
UISP application
Product description

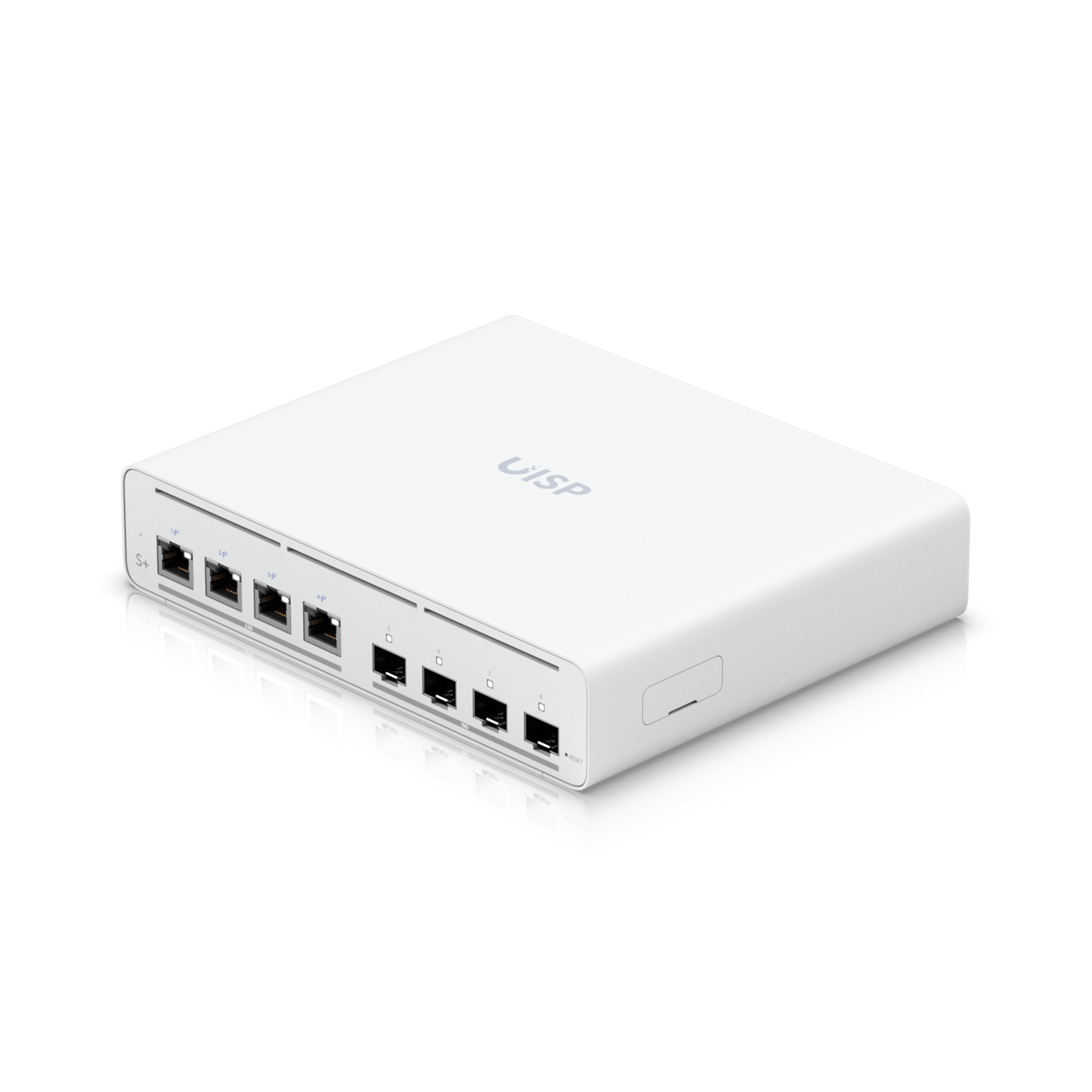

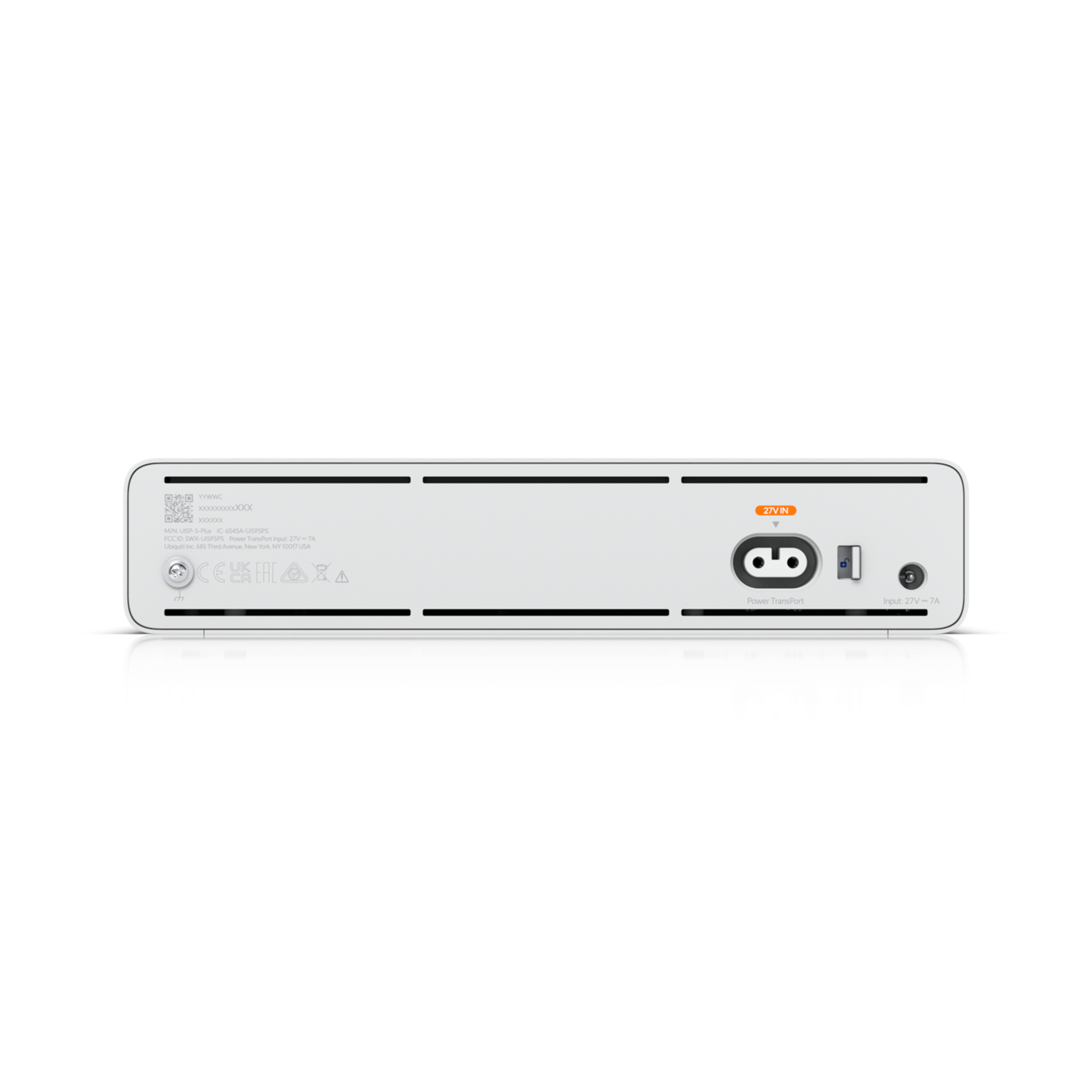

Ubiquiti Switch Plus is a powerful PoE switch designed for both home and office. There are 4 LAN ports with speeds up to 2.5 Gbps and passive 27V PoE output. The optical interface will offer 4 SFP+ ports with speeds up to 10 Gbps. A total of 160 W PoE budget is available. Interesting features of the switch include port isolation, speed limit setting, or DHCP snooping. The switch also has two power supplies, one of which is in the form of a TransPort, designed as a backup DC power supply in the event of a power failure from the original power source. It can be configured using the UISP application or through the normal web interface.
Key features:
Package contents:
- Device
- Power cord (AC)
- RJ45 cable
- Rack mounting kit
Caution! The cable for the TransPort (secondary power supply) is not included. It must be purchased.Download
